OPERATOR'S MANUAL
SAFETY INSTRUCTIONS
WITH INSPECTION AND MAINTENANCE INSTRUCTIONS
NEO Permanent Lifting Magnets
Models: NEO-125, NEO-250, NEO-500, NEO-1000,
NEO-2000 NEO-HV-250, NEO-HV-500, NEO-HV-1000
NEO-125, NEO-250, NEO500,
NEO-1000 & NEO-2000
• Always stay clear
of the load.
NEO-HV-250, NEO-HV-500, NEO-HV-1000
WALKER MAGNETICS
DANGER
• Never lift loads over
people or in close
proximity to people.
AND
• Never attempt to operate either of
these magnets until you have read and
understand this Operator's Manual.
Advertisement
Table of Contents
Related Manuals for Walker Magnetics NEO500
Summary of Contents for Walker Magnetics NEO500
- Page 1 OPERATOR’S MANUAL SAFETY INSTRUCTIONS WITH INSPECTION AND MAINTENANCE INSTRUCTIONS NEO Permanent Lifting Magnets Models: NEO-125, NEO-250, NEO-500, NEO-1000, NEO-2000 NEO-HV-250, NEO-HV-500, NEO-HV-1000 NEO-125, NEO-250, NEO500, NEO-1000 & NEO-2000 NEO-HV-250, NEO-HV-500, NEO-HV-1000 WALKER MAGNETICS DANGER • Always stay clear • Never lift loads over •...
-
Page 2: Table Of Contents
HV SPARE PARTS LIST ...........................28 INTRODUCTION Thank you for purchasing this Walker Magnetics Product. If used and maintained properly, it should serve you for many years. Thousands of Walker lift magnets are in service today doing safe, fast, and effi cient magnetic material handling applications. It is often the only way for one person to load, transport, and unload material. -
Page 3: Safety Instructions
Be sure to read and understand the instructions and safety warnings contained in this manual before using your lifter. If you do not understand everything in this manual contact Walker Magnetics for assistance before using the magnet. Call 1-800-W-MAGNET... -
Page 4: Recognize Safety Information
DANGER Never lift a load by its narrowest dimension. WARNING If you have any diffi culty lifting a load, DON’T LIFT IT! Call Walker for advice at 1-800-962-4638 Walker Magnetics, Inc., NEO Permanent Lifting Magnets... -
Page 5: Ways To Avoid A Reduction Of Lifting Capacity
110°F (43°C). The control actuator must be fully in the “on” or “lift” position. Repair of this magnet should only be done by Walker Magnetics or a Qualifi ed Person.* If you have any diffi culty lifting a load, DON’T LIFT IT! Call Walker Magnetics for advice at 1-800-962-4638. -
Page 6: Important Facts For The Operation Of Lift Magnets
The lifting guidelines provide the user with what minimum thickness of load is re- quired to reach full lifting capacity. Below such thickness of load, the user must ac- cept the reduced lifting capacity of the magnet as shown in the guidelines. Walker Magnetics, Inc., NEO Permanent Lifting Magnets... - Page 7 3. LOAD ALLOY Low carbon steels, such as AISI 1020 steel, are nearly as good conductors of magnetic lines of force as pure iron. However, many other alloys contain non-magnetic materials, which re- duce the ability of magnetic lines of force to fl ow into the load. An alloy such as AISI 300 series of stainless steel is almost as poor a conductor of magnetic lines of force as air.
- Page 8 If you have any diffi culty lifting a load, DON’T LIFT IT. glasses, work gloves, steel-toed shoes and a safety hat. Ask your supervisor for help or call Walker Magnetics, Inc., for advice at 1-800-W-MAGNET Walker Magnetics, Inc., NEO Permanent Lifting Magnets...
- Page 9 RULES LIFT MAGNETS MODELS: NEO-1000 & NEO-2000 unless the magnet is in contact with a load of a thickness equal to those listed manual. Attempting to energize or de-energize this magnet without a load or high probability of personal injury due to handle spring back. To energize magnet, grip the handle fi rmly and pull the handle from its locked position.
-
Page 10: Recommended Lifting Procedures
ALWAYS MAKE SURE THAT THE LOAD’S WEIGHT AND DIMENSIONS ARE WITHIN THE MAGNET’S LIFTING GUIDELINES. UNSAFE LIFTING APPLICATIONS FOR YOUR NEO-125, 250, 500, 1000, AND 2000 LIFTING MAGNETS DANGER DANGER Never lift more than one workpiece •... -
Page 11: Guidelines For The Reduction Of The Rated Lifting Capacity
GROUND surfaces (use 0” air gap) with a Model NEO-500 lifting magnet. Rated Lift Capacity = 0.45 multiplied by 38” = 17.1”. WARNING If you have any diffi culty lifting a load, DON’T LIFT IT! Call Walker for advice at 1-800-962-4638 Walker Magnetics, Inc., NEO Permanent Lifting Magnets... -
Page 12: Neo-125 Lifting Guidelines (Plate)
† Air Gap = nonmagnetic separation between magnet’s lifting surface and load. * Lifting capacity affected by peel and thickness. See notes 2 & 4 in the “Important Facts” and “Recommended Lifting Procedures” (See pages 6, 7 and 10). Walker Magnetics, Inc., NEO Permanent Lifting Magnets... -
Page 13: Neo-125 Lifting Guidelines (Round Bars)
A diameter GREATER THAN 4.00 Inches or A length greater than shown in the Lifting Guidelines above (Absolute maximum length 60” (1524mm)) † Air Gap = nonmagnetic separation between magnet’s lifting surface and load. Walker Magnetics, Inc., NEO Permanent Lifting Magnets... -
Page 14: Neo-250 Lifting Guidelines (Plate)
† Air Gap = nonmagnetic separation between magnet’s lifting surface and load. * Lifting capacity affected by peel and thickness. See notes 2 & 4 in the “Important Facts” and “Recommended Lifting Procedures” (See pages 6, 7 and 10). Walker Magnetics, Inc., NEO Permanent Lifting Magnets... -
Page 15: Neo-250 Lifting Guidelines (Round Bars & Pipes)
A wall thickness LESS THAN 1/4” (6.4mm) or A length greater than shown in the Lifting Guidelines above (Absolute maximum length 137” (3500mm)) † Air Gap = nonmagnetic separation between magnet’s lifting surface and load. Walker Magnetics, Inc., NEO Permanent Lifting Magnets... -
Page 16: Neo-500 Lifting Guidelines (Plate)
† Air Gap = nonmagnetic separation between magnet’s lifting surface and load. * Lifting capacity affected by peel and thickness. See notes 2 & 4 in the “Important Facts” and “Recommended Lifting Procedures” (See pages 6, 7 and 10). Walker Magnetics, Inc., NEO Permanent Lifting Magnets... -
Page 17: Neo-500 Lifting Guidelines (Round Bars & Pipes)
A wall thickness LESS THAN 1/4” (6.4mm) or A length greater than shown in the Lifting Guidelines above (Absolute maximum length 157” (4000mm) † Air Gap = nonmagnetic separation between magnet’s lifting surface and load. Walker Magnetics, Inc., NEO Permanent Lifting Magnets... -
Page 18: Neo-1000 Lifting Guidelines (Plate)
† Air Gap = nonmagnetic separation between magnet’s lifting surface and load. * Lifting capacity affected by peel and thickness. See notes 2 & 4 in the “Important Facts” and “Recommended Lifting Procedures” (See pages 6, 7 and 10). Walker Magnetics, Inc., NEO Permanent Lifting Magnets... -
Page 19: Neo-1000 Lifting Guidelines (Round Bars & Pipes)
A wall thickness LESS THAN 3/8” (9.5 mm) or A length greater than shown in the Lifting Guidelines above (Absolute maximum length 177” (4500mm) † Air Gap = nonmagnetic separation between magnet’s lifting surface and load. Walker Magnetics, Inc., NEO Permanent Lifting Magnets... -
Page 20: Neo-2000 Lifting Guidelines (Plate)
NEO-2000 LIFTING GUIDELINES (PLATE) Values shown are for maximum rated capacities when operating instructions and warnings are followed. VALUES ARE BASED UPON AISI 1020 STEEL Higher alloy steels and other magnetic materials will require further reductions of these rated capacities (See page 11 for the Guidelines for the reduction of the Rated Lifting Capacities.) NEVER EXCEED EITHER THE MAXIMUM WEIGHT OR SIZE SHOWN FOR EACH LOAD THICKNESS AND TYPE OF SURFACE CONDITION TYPE OF SURFACE CONDITION... -
Page 21: Neo-2000 Lifting Guidelines (Round Bars & Pipes)
A wall thickness LESS THAN 3/4” (20 mm) or A length greater than shown in the Lifting Guidelines above (Absolute maximum length 196” (5000mm) † Air Gap = nonmagnetic separation between magnet’s lifting surface and load. Walker Magnetics, Inc., NEO Permanent Lifting Magnets... -
Page 22: Inspection And Maintenance Instructions
Inspect the eyehook for wear or deformation. If the eyehook is deformed and/or the diameter of the eye- hook is worn to less than 5/16” (0.313”) for the NEO-125, 7/16" (0.438") for the NEO-250 & NEO-500 or 9/16” (0.563”) for the NEO-1000 and NEO-2000 it should be replaced. -
Page 23: Specification & Spare Parts List
Therefore, anytime the magnet is disassembled beyond the parts list shown in this For repair of your lift magnet, contact Walker Magnetics for manual, the magnet must be re-tested for breakaway force in you’re nearest Authorized Service Center TOLL FREE at... -
Page 24: Neo-Hv 250, Neo-Hv 500, Neo-Hv 1000

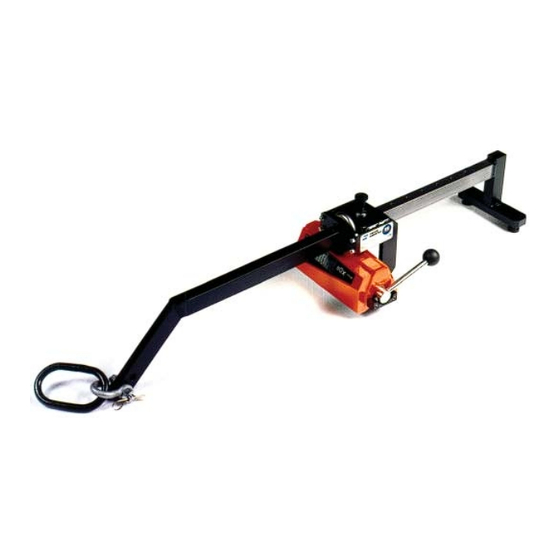

3 Insert the end of the lifting arm into the lifting eye of the magnet. The magnet’s operating lever should be on the same side as the text plate of the lifting arm. (As shown if Figure 1 below.) Figure 1 Walker Magnetics, Inc., NEO Permanent Lifting Magnets... - Page 25 Read and understand the Lifting magnet’s instruction (Manual # 37-DD-14493) before lifting any load! The workload limit depends on: ♦ Surface quality, fl atness, rust, scale, paint, dirt etc. ♦ Material thickness ♦ Length/width relation (sagging/peeling) ♦ Type of material ♦ Contact area Walker Magnetics, Inc., NEO Permanent Lifting Magnets...
- Page 26 9. The load must remain vertical during transport to avoid the load from sliding away from the stopper. 10. Set down and secure. Only now switch OFF the magnet, the lever must lock in place. Walker Magnetics, Inc., NEO Permanent Lifting Magnets...
-
Page 27: Hv Inspection And Maintenance
Check lifting arm for deformations, cracks, and wear. Replace the lifting eye if worn for more than 10%. Grease slider and locking pin. Replace a damaged and/or illegible text plate. ANNUALLY Have the device inspected and tested by O. S. Walker or by a qualifi ed person. Walker Magnetics, Inc., NEO Permanent Lifting Magnets... -
Page 28: Hv Spare Parts List
PART NO. QTY. PART NO. OBLONG LINK 393.26.88 393.26.88 393.25.95 SHACKLE 393.20.34 393.20.34 393.25.92 PLATE A4-744.05.89 A4-744.05.75 A4-744.06.02 SCREW 363.01.56 363.01.56 363.01.56 PLUNGER 393.22.45 393.22.45 393.22.45 MAGNET 440.52.50 440.55.00 440.50.00 LABEL 369.10.21 369.10.21 369.10.21 Walker Magnetics, Inc., NEO Permanent Lifting Magnets... - Page 29 2195 Wright Brothers Avenue, Columbus, OH 43217 (614) 492-1617 FAX (614) 492-1618 2 Main St. E P.O. Box 84, Grimsby ON L3M 4G1 Canada (905)643-3338 www.walkermagnet.com e-mail: info@walkermagnet.com 37-DD14493 Rev. G July 14, 2009 Walker Magnetics Inc., NEO Permanent Lifting Magnets...
