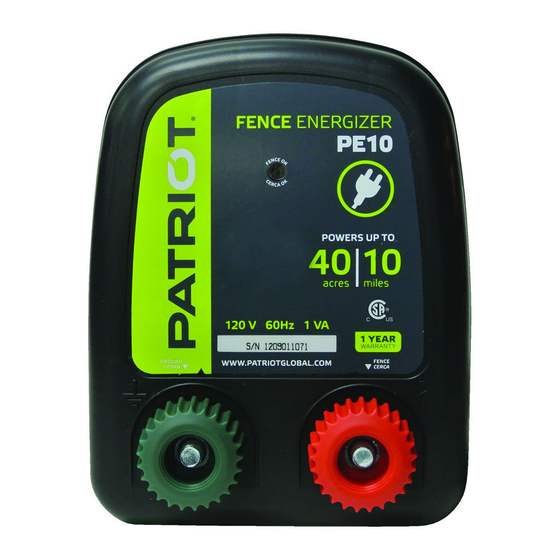

Patriot PE10 User Manual

Electric fence energizer
Hide thumbs
Table of Contents

Advertisement

Quick Links

ELECTRIC FENCE
ENERGIZER
STOP!
BEFORE
RETURNING THIS
PRODUCT TO
THE STORE...
Consult your user manual for installation and operating
instructions or contact Tru-Test Group Customer Service
on 800-874-8494.
WW W.PATRIOTGLOBAL. COM
PE2, PE5, PE10
PE5B, PE10B
WARNING: READ ALL INSTRUCTIONS
If you suspect that the unit is not
working, follow these steps:
1. Disconnect the unit from the
2. Check that the indicator light is
3. Check that the voltage between the
4. If these tests are OK, you have an
fence.
flashing.
fence and ground terminals is greater
than 4000 V, using a Patriot Digital
Voltmeter or Fence Tester.
installation problem.
USER
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PE10 and is the answer not in the manual?

Questions and answers

Related Manuals for Patriot PE10

Summary of Contents for Patriot PE10

  • Page 1 THE STORE… 3. Check that the voltage between the fence and ground terminals is greater than 4000 V, using a Patriot Digital Voltmeter or Fence Tester. 4. If these tests are OK, you have an installation problem. Consult your user manual for installation and operating instructions or contact Tru-Test Group Customer Service on 800-874-8494.
  • Page 2 Patriot PE2, PE5, PE10, PE5B, PE10B Key to symbols on the unit Fence ground terminal (green). Connect the fence ground terminal to the ground system. Fence output terminal (red). Connect the fence output terminal to the fence. Unit is suitable for connection to AC 120 V.
  • Page 3 Instructions for PE2, PE5 and PE10 Installation - Indoors/dry locations with AC 120 V line connection Mount the unit on a suitable vertical support or wall material using a 3” (75 mm) flat headed nail. Hammer in the nail, allowing it to protrude by 3/8”...
  • Page 4 Instructions for PE5B and PE10B Installation and operation - DC 6 V/12 V battery connection The unit can be mounted directly onto a steel T-post or Y-post using the mounting slot in the case rear. Alternatively, the unit can be mounted onto a wooden post, another suitable vertical support or suitable wall material using a 3”...

  • Page 5: Battery Information

    Regular recharging of the battery is essential. Use a suitably rated battery charger and refer to the battery manufacturer’s recommendations. Building an electric fence Note: This product has been designed for use with electric animal fences. For information about building an electric fence, refer to the Patriot website www.patriotglobal.com.
  • Page 6 Grounding a fence All-live fence - For most soil types The animal receives a shock when it completes a circuit between the fence and the ground system. The fence above has all live wires and requires conductive soils. Ground wire return fence - For dry, sandy or frozen ground conditions, where soil conductivity is low.
  • Page 7 Installing a ground system Select a suitable site for the ground system. The site needs to be: At least 33’ (10 m) from other ground systems (e.g. telephone, AC 120 V • power or the ground system of another unit). Away from stock or other traffic that could interfere with the installation.
  • Page 8 Recommended wire spacing Dairy cattle Sheep Cattle...

  • Page 9: Safety Considerations

    - PE5B and PE10B only - Do not connect to AC 120 V operated equipment. - PE2, PE5 and PE10 only - To reduce the risk of electric shock, the unit has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet one way.
  • Page 10 Safe electric fence construction Warning! Read before use. An electric fence can be hazardous when there is a risk of entrapment or entanglement, or other hazards exist. Serious injury or death may result. Take all steps to avoid the risk of entrapment or entanglement. Hazards ...
  • Page 11 Duty to the public A warning sign shall be fitted to every point where persons may gain ready access to the conductors. Where an electric animal fence crosses a public pathway, a non-electrified gate shall be incorporated in the electric animal fence at that point or a crossing by means of stiles shall be provided.
  • Page 12 Definition of special terms Unit/Charger/Energizer – An appliance that is intended to periodically deliver voltage impulses to a fence connected to it. Fence – A barrier for animals or for the purpose of security, comprising one or more conductors such as metal wires, rods or rails. Electric fence –...
  • Page 13 For any two separate electric animal fences, each supplied from a separate unit independently timed, the distance between the wires of the two electric animal fences shall be at least 8’ (2.5 m). If this gap is to be closed, this shall be effected by means of electrically non-conductive material or an isolated metal barrier.
  • Page 14 Minimum clearances from power lines for electric animal fences Power line voltage Clearance 10‘ (3 m) ≤1000 V >1000 V to ≤33,000 V 13’ (4 m) 27’ (8 m) >33,000 V If connecting leads and electric animal fence wires are installed near an overhead power line, their height above the ground shall not exceed 10’...
  • Page 15 Consulte nuestra página web patriotglobal.com para acceder a las instrucciones completas de instalación y funcionamiento. Pour les instructions complètes d’installation et d’utilisation, veuillez vous reporter à notre site web patriotglobal.com. Explication des symboles sur l’électrificateur Borne de terre de la clôture (vert). Connectez la borne de terre au système de mise à...
  • Page 16 - PE5B et PE10B uniquement - Ne jamais raccorder cet appareil à des équipements alimentés par le réseau électrique. - PE2, PE5 et PE10 uniquement - Pour réduire le risque d’une secousse électrique, l’unité a une fiche polarisée (une lame est plus large que l'autre). Cette fiche ne rentre dans une prise polarisée que dans un sens.
  • Page 17 Installation d’une clôture électrique sûre Attention ! Lisez avant utilisation. Une clôture électrique peut être dangereuse si elle présente un risque d’embrouillement ou d’emmêlement ou que d’autres risques existent. Des blessures graves ou la mort peuvent en être la conséquence. Prenez les mesures nécessaires pour éviter tout risque d’embrouillement ou d’emmêlement.
  • Page 18 Partout où une clôture électrique pour animaux croise un chemin public, une porte non électrifiée sera incorporée à la clôture électrique pour animaux ou bien un passage au moyen d’une échelle sera prévu. Les fils électrifiés adjacents à ces passages doivent être munis de plaques de signalisation. Toute partie d’une clôture électrique pour animaux installée le long d’une voie publique ou d’un sentier sera signalée à...
  • Page 19 Warranty This warranty does not cover defects caused by: • Incorrect input voltage or polarity • Damage to external wiring • Physical mishandling • Water immersion • Vermin or insect damage This warranty covers defects caused by lightning. Note: This product has been manufactured to comply with international safety standards. This product is warranted against faulty material and workmanship for a period of 2 years FROM DATE OF PURCHASE.
  • Page 20 RECOMMENDATIONS PE10 PE5B PE10B                                 FOR USE WITH:  STEEL WIRE ...
