Summary of Contents for Dual HDM90

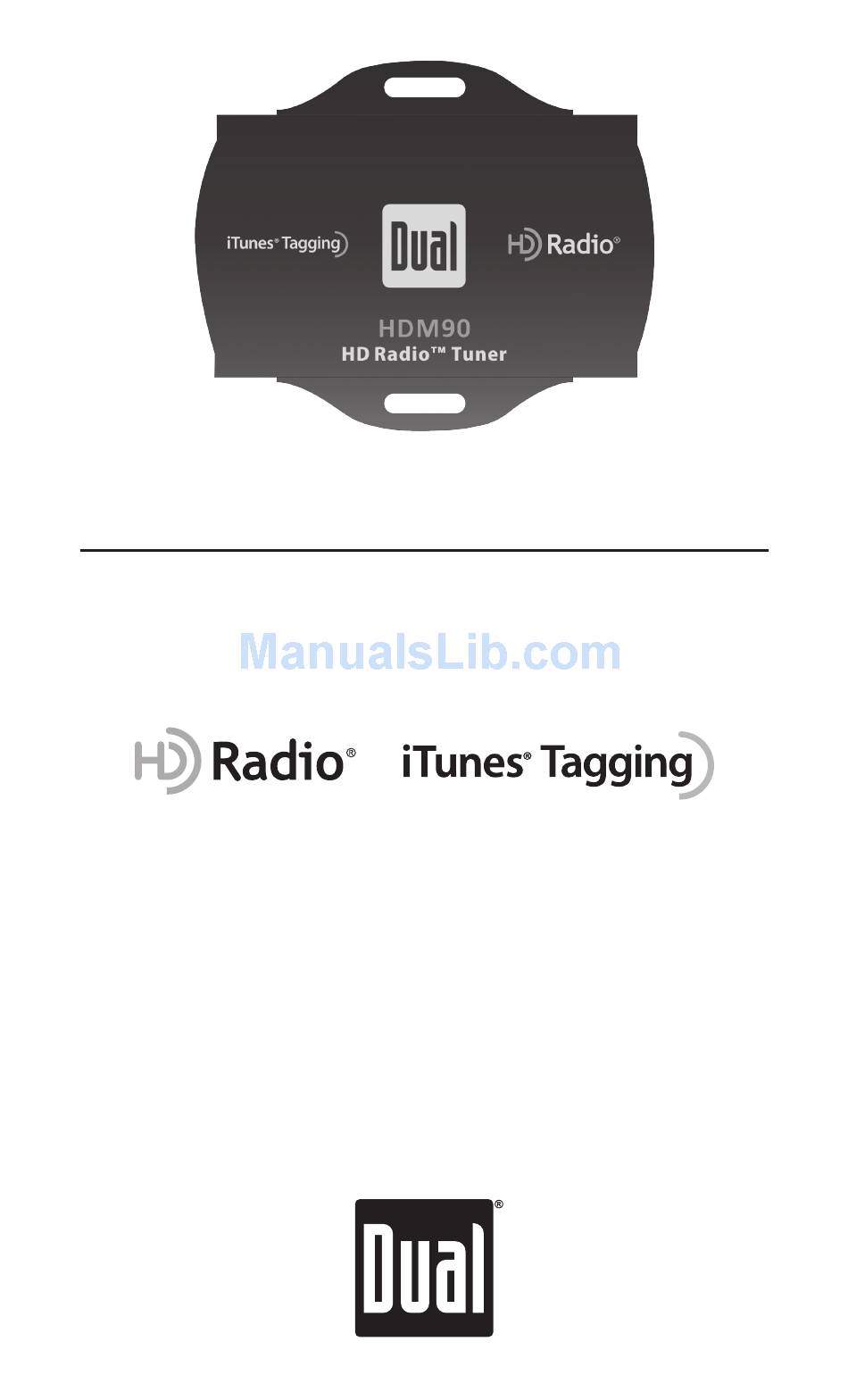

- Page 1 HDM90 INSTALLATION/OWNER'S MANUAL HD Radio™ Tuner...
-
Page 2: Installation

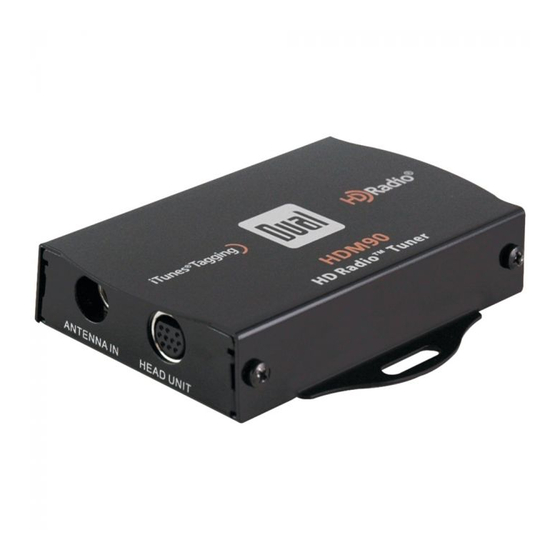

• With the arrow facing up, line up and connect one end of the included blue mini-DIN cable to the connector labeled "HEAD UNIT" on the HDM90. The cable and connector are keyed to only fit one way. Make sure not to turn the cable when connecting as it may damage the pins in the cable. - Page 3 HDM90 OPERATION HD Radio™ AM/FM Tuner Operation Overview The HDM90 HD Radio Tuner receives both analog and digital radio stations. Once connected, the HDM90 provides a higher quality digital version of many existing radio stations, and enables extra HD2 and HD3 FM radio stations called multicast channels.
- Page 4 HDM90 OPERATION HD Radio™ AM/FM Tuner Operation Setting Multicast Presets Multicast channels can be set as a preset radio station (1-6) just like analog radio stations, by holding the button for desired preset number down for about 3 seconds. Presets may be set in any band: FM1, FM2, FM3, AM1 or AM2.
- Page 5 ® iTunes Tagging The iTunes Tagging feature of the HDM90 allows the user to "Tag" songs that are playing on HD Radio stations and enables them to be purchased later through iTunes. With the touch of a button the unit will remember the title and...
-
Page 6: Fcc Compliance
HDM90 OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 7: Limited One Year Warranty
A slight adjustment of any custom Dual Electronics Corp. warrants this product to controls may save you a service call. the original purchaser to be free from defects in material and workmanship for a period of one 2. -
Page 8: Specifications
Toll Free: 1-866-382-5476 www.dualav.com ©2010 Dual Electronics Corp. All rights reserved. HD Radio™ Technology Manufactured Under License From iBiquity Digital Corp. U.S. and Foreign Patents. HD Radio™ and the HD Radio and ARC logos are proprietary trademarks of iBiquity Digital Corp.
