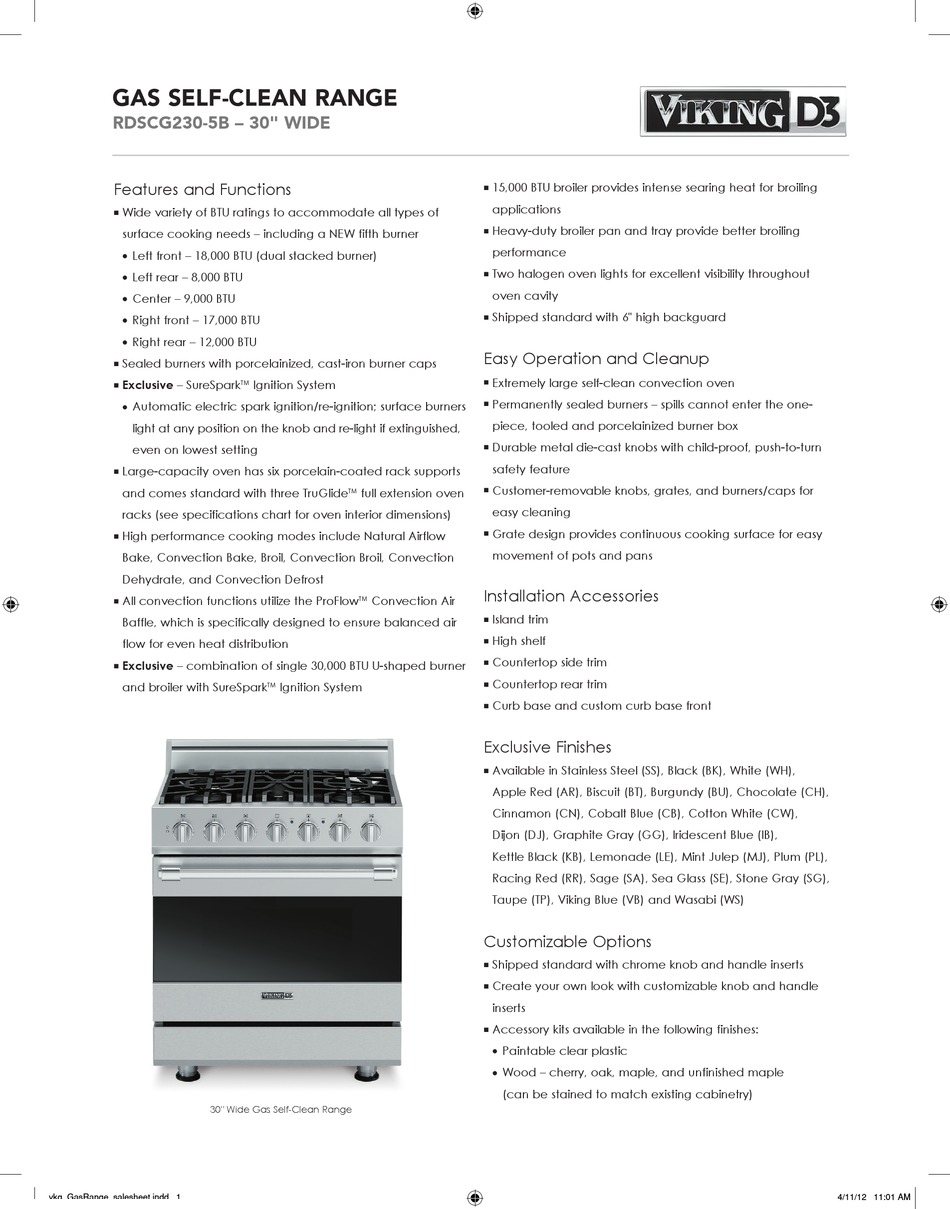

Viking RDSCG230 Specifications

Gas self-Clean RanGe
RDsCG230-5B – 30" WIDe

Features and Functions

Wide variety of BTU ratings to accommodate all types of
n
surface cooking needs – including a NEW fifth burner
Left front – 18,000 BTU (dual stacked burner)
l
Left rear – 8,000 BTU
l
Center – 9,000 BTU
l
Right front – 17,000 BTU
l
Right rear – 12,000 BTU
l
Sealed burners with porcelainized, cast-iron burner caps
n
Exclusive – SureSpark
n
Automatic electric spark ignition/re-ignition; surface burners
l
light at any position on the knob and re-light if extinguished,
even on lowest setting
Large-capacity oven has six porcelain-coated rack supports
n
and comes standard with three TruGlide
racks (see specifications chart for oven interior dimensions)
High performance cooking modes include Natural Airflow
n
Bake, Convection Bake, Broil, Convection Broil, Convection
Dehydrate, and Convection Defrost
All convection functions utilize the ProFlow
n
Baffle, which is specifically designed to ensure balanced air
flow for even heat distribution
Exclusive – combination of single 30,000 BTU U-shaped burner
n
and broiler with SureSpark
30" Wide Gas Self-Clean Range
vkg_GasRange_salesheet.indd 1
TM Ignition System
TM full extension oven
TM Convection Air
Ignition System
TM
15,000 BTU broiler provides intense searing heat for broiling
n
applications
Heavy-duty broiler pan and tray provide better broiling
n
performance
Two halogen oven lights for excellent visibility throughout
n
oven cavity
Shipped standard with 6" high backguard
n
Easy Operation and Cleanup
Extremely large self-clean convection oven
n
Permanently sealed burners – spills cannot enter the one-
n
piece, tooled and porcelainized burner box
Durable metal die-cast knobs with child-proof, push-to-turn
n
safety feature
Customer-removable knobs, grates, and burners/caps for
n
easy cleaning
Grate design provides continuous cooking surface for easy
n
movement of pots and pans

Installation Accessories

Island trim
n
High shelf
n
Countertop side trim
n
Countertop rear trim
n
Curb base and custom curb base front
n
Exclusive Finishes
Available in Stainless Steel (SS), Black (BK), White (WH),
n
Apple Red (AR), Biscuit (BT), Burgundy (BU), Chocolate (CH),
Cinnamon (CN), Cobalt Blue (CB), Cotton White (CW),
Dijon (DJ), Graphite Gray (GG), Iridescent Blue (IB),
Kettle Black (KB), Lemonade (LE), Mint Julep (MJ), Plum (PL),
Racing Red (RR), Sage (SA), Sea Glass (SE), Stone Gray (SG),
Taupe (TP), Viking Blue (VB) and Wasabi (WS)
Customizable Options
Shipped standard with chrome knob and handle inserts
n
Create your own look with customizable knob and handle
n
inserts
Accessory kits available in the following finishes:
n
Paintable clear plastic
l
Wood – cherry, oak, maple, and unfinished maple
l
(can be stained to match existing cabinetry)
4/11/12 11:01 AM
