Page 1: Color Monitor

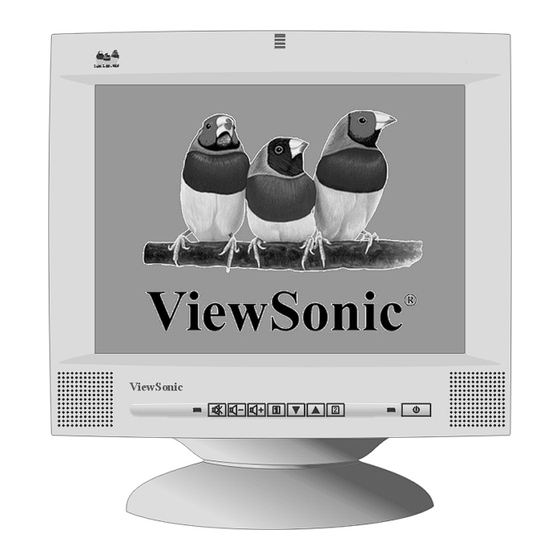

G70fm/ Color Monitor G70fmb User Guide Guide de l’utilisateur Bedienungsanleitung Guida dell’utente Guía del usuario Guia do Usuário Användarhandbok Käyttöopas Podręcznik użytkownika With Plug & Play ✘ 17" (16.0" Viewable Diagonal) -
Page 2: Table Of Contents
Setting the Timing Mode ...........5 OSD Lock Settings ............5 Adjusting the Screen Image ........6 Other Information ..........10 Specifications ............10 Troubleshooting ............11 Customer Support ...........12 Cleaning the Monitor ..........13 Limited Warranty .............14 Appendix .............15 Safety Guidelines ............15 Compliance Information ..........16 CE Conformity ............16 ViewSonic G70fm/G70fmb... -
Page 3: Product Registration
No part of this document may be copied, reproduced or transmitted by any means for any purpose without prior written permission from ViewSonic Corporation. Product Registration To register your product online, go to the ViewSonic website for your region. See the Customer Support table in this guide. Product name:... -
Page 4: Getting Started
• D-sub video cable (attached) • Audio cable • Microphone cable • Quick Start Guide • ViewSonic Wizard CD-ROM (includes User Guide PDF and INF/ICM dis- play optimization files) Precautions • For best viewing conditions sit at least • Place your monitor in a well ventilated 18”... -
Page 5: Quick Installation
This sequence (monitor before computer) is important. To register your product online, go to NOTE: Windows 95, 98 or 2000 the ViewSonic website for your users may receive a message region. See the Customer Support asking them to install the INF file. -
Page 6: Using Your Monitor
Select the resolution by moving the slider, which displays in the Desktop area or Screen area in the window. NOTE: The refresh rate should already be set if you have completed the ViewSonic Wizard CD installation (or refer to your graphics card’s documentation). OSD Lock Settings You have the option of using the OSD Lock feature to prevent current image adjustments from being changed. -
Page 7: Adjusting The Screen Image
Displays the Main Displays the highlighted Mutes audio Menu or exits and option or toggles output saves between options Power button Power light: Scrolls through Increases/decreases green = on options or adjusts audio volume orange = power save settings ViewSonic G70fm/G70fmb... -
Page 8: Menu Options
Pin Balance left or right. adjusts the top and bottom of the screen image until Trapezoid they have equal length. slants the vertical edges of the screen image until Parallelogram they are parallel. ViewSonic G70fm/G70fmb... - Page 9 Language for the menus and control screens: English, French, German, Italian, and Spanish. allows you to move the on-screen menus and OSD Position control screens. ViewSonic G70fm/G70fmb...
- Page 10 Exception: This control does not affect changes made with the User Color control. ® displays information regarding the current input Viewmeter signal coming from the graphics card of the computer. See Setting the Timing Mode on page 5. ViewSonic G70fm/G70fmb...
-
Page 11: Other Information
Power modes Green = On (normal, <100w) Orange = Off mode (< 3 W) Macintosh users may need an adapter. Contact ViewSonic (see Customer Support on page 12). Preset Timing Modes VGA 640 x 400 @ 70 Hz VESA 1280 x 1024 @ 75 Hz ®... -
Page 12: Troubleshooting
• Connect the monitor to another computer. • Select Degauss from the Main Menu. Do this only once. • If you have an older graphics card, contact ViewSonic ® Customer Support. Entire screen image rolls vertically •... -
Page 13: Customer Support
Customer Support For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product serial number. Country/ Web site T = Telephone Email Region F = FAX United States viewsonic.com/ Canada ViewSonic G70fm/G70fmb... -
Page 14: Cleaning The Monitor
Some chemical cleaners have been reported to damage the screen and/or case of the monitor. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 15: Limited Warranty
If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components. -
Page 16: Appendix
N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED. If you have any questions concerning which proper power cord to use, consult the dealer from whom you have purchased the product. ViewSonic G70fm/G70fmb... -
Page 17: Compliance Information
If this equipment does cause harmful interfer- ence to radio or television reception, which can be determined by turning the equipment off and on, the user is ViewSonic G70fm/G70fmb... - Page 18 ViewSonic Corporation...
