- Page 1 ViewSonic G773 User's Guide Guide de l'utilisateur Bedienungsanleitung Manual de instrucciones...
- Page 2 User’s Guide ViewSonic G773 Color Monitor with Plug & Play 17" (16" Diagonal Viewable) ® ViewSonic Corporation...
-
Page 3: For Your Records
U.S. Environmental Protection Agency (EPA). NERGY Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. - Page 4 If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will at its sole option repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.
-
Page 5: Safety Guidelines
If you lose the fuse cover, the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local ViewSonic dealer. IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME, THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. -
Page 6: Fcc Information
Radio Interference Regulations of the Canadian Department of Communications. DOC avis de conformation Cet appareil est bien conforme à la directive communautaire No 82/499/CEE. This device complies with the requirements of the EEC directive 89/336/EEC with regard to "Electromagnetic compatibility." ViewSonic G773 FCC Information CE Certification... - Page 7 ViewSonic G773...
-
Page 8: Table Of Contents
..........24 ViewSonic G773... - Page 9 Contents ViewSonic G773...
-
Page 10: Introduction

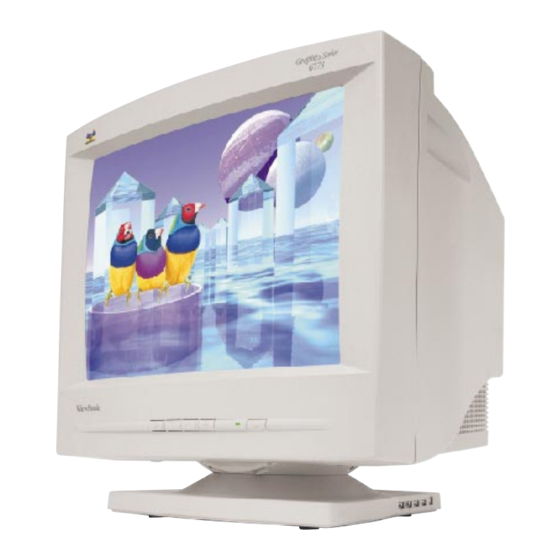

INTRODUCTION Package Contents Congratulations on your purchase of a ViewSonic G773 high quality color monitor! Your ViewSonic G773 package includes the following: ViewSonic G773 monitor Attached video cable with 15 pin high density (HD) mini D-sub connector Power cord User’s guide... -
Page 11: Features
Ten factory preset video modes are available for image size and positioning. Six additional timings are user definable for a total of 16 timing settings. Introduction screen treatment refracts light away from the user rotation horizontally and 20 ViewSonic G773... - Page 12 Our shipping cartons are made of recyclable material. *Macintosh computers require a ViewSonic ViewSonic for your adapter. See Chapter 4 on troubleshooting for a telephone number in your area. ViewSonic G773 and DDC2B for Plug &...
-
Page 13: Specifications
Power User Controls/ Funcitions Video input *Macintosh ® computers require ViewSonic ViewSonic for your adapter. See Chapter 4 on troubleshooting for a telephone number in your area. Introduction Type 17" (16.0" viewable screen diagonal), 0.26mm dot pitch with Microfilter Phosphor... - Page 14 LED modes Other Features All products and trademarks are brand names of their respective companies. Specifications subject to change without notice. ViewSonic G773 0.30mm (max) at center 0.40mm (max) at corner 300mm (H) x 225mm (V) typical 330mm (H) x 240mm (V) 5°F to 95°F (10°C to 40°C)
-
Page 15: Dimensions
Height (with base) Base Tilt down Top View Swivel Angles left right Introduction r87mmr74mm287mm ROT A TI ON 070mm 370 mm (14.6") 308 mm (12.1") 406 mm (16.0") 387 mm (15.2") 374 mm (14.7") 287mm (11.3") 370mm 406mm ViewSonic G773... -
Page 16: Installation
Adjust user controls according to personal preference (see Chapter 3). Is the image satisfactory? Installation is complete! Enjoy your new G773 high quality graphics monitor! ViewSonic G773 Macintosh users, see Chapter 4 for a telephone number in your area to ®... -
Page 17: Installing/Removing The Monitor Base
With the front of the monitor facing you, slip the L-shaped tabs into the slots on the bottom of the monitor. Then gently slide the base toward the front of the monitor until the catch snaps into place. ViewSonic G773... -
Page 18: Monitor Controls
Some controls are grouped in pairs on the Main Menu (see page 12). Press button [2] to toggle between them. 5 To adjust the selected user control, press the M or L button. Exception: ViewSonic G773 • Scrolls up Main Menu, high- lighting control to be adjusted • Increases value of selected control •... -
Page 19: Onview Main Menu
Press button [1] to return to the Main Menu. Press button [1] again to clear the screen. B R I G H T N E S S E X I T Operation C O N T R A S T: ViewSonic G773... - Page 20 VIEWMETER (horizontal scan and refresh rate). Press button [2] to select this feature. ViewSonic G773 adjusts the width of screen image. moves screen image left or right. moves screen image up or down.
- Page 21 3 When you are finished making all color adjustments, press button [1] twice. LANGUAGE German, or Spanish. To select a language, press button [2]. MEMORY RECALL ® provides three color adjustment modes: COLOR ® of OnView screens can be set to English, French, ViewSonic G773...
-
Page 22: Operation
The following table lists the maximum refresh rates at which the ViewSonic G773 will operate at a number of standard resolutions. While the monitor is capable of this level of performance, not all video cards are capable of running at these high refresh rates. -
Page 23: Factory Preset Timings
640 x 480 31.47 640 x 480 37.50 800 x 600 46.08 800 x 600 53.67 1024 x 768 60.02 1024 x 768 68.68 1280x1024 60.01 640 x 480 35.00 832 x 624 49.73 Polarity of Syn- Horiz/Vertical ViewSonic G773... -
Page 24: Plug And Play
Note Some older computer systems are not compatible with the DDC standard. If your monitor is displaying a monochrome image or the wrong resolution, call ViewSonic’s customer support for a non-DDC adapter. If you upgrade to a DDC compatible system later and want to use Plug &... -
Page 25: Ddc Diagnostic Utility
The ViewSonic G773 uses DDC (Display Data Channel) protocol to communicate with your computer's video card. The software diskette or CD included in the ViewSonic G773 package has a utility file called DDCTEST.EXE. This utility is useful for troubleshooting if DDC-related... -
Page 26: Power Management System
Suspend yellow orange Note: The G773 complies with European NUTEK Power Management Standards. Note: The Off state means the monitor is in the lowest DPMS state with the highest power savings. The monitor goes into these power saving stages with the following video... -
Page 27: Troubleshooting
TROUBLESHOOTING If your ViewSonic G773 monitor is not performing properly, use this troubleshooting chart for quick solutions to common problems. If the problem persists, call your monitor dealer. For further support or to order your free Macintosh adapter, call ViewSonic number in your area: U.S. - Page 28 Magnetic object nearby? has wavy oscillations Electric power wiring? Image is distorted Is the earth’s magnetic field interfering with display? ViewSonic G773 Remedy... Use correct signal connector. Connect signal cable properly. Check for bent or missing pins. Check your graphics board manual for the proper monitor setting.
-
Page 29: Additional Information
It is dangerous to continue using the monitor. Never remove the rear cover. The display unit contains high-voltage parts. You may suffer electric shock if you touch these parts. Call your dealer or ® ViewSonic Customer Support. Additional Information ViewSonic G773... -
Page 30: Care Of Your Monitor
If the plastic is very dirty, use a neutral, non-abrasive detergent. Do not use alcohol or ammonia based solutions. Avoid spilling liquid on the monitor. Always handle your monitor with care when moving it. ViewSonic G773 Additional Information... -
Page 31: Index
Timing, 4, 14, 15 Trapezoid, 13 Troubleshooting, 20 Vertical size (height), 13 Vertical centering (position), 13 VESA, 16 ® ViewMatch Color, 14 ® ViewMeter , 13 Warranty, ii Weight, 7 Width (monitor dimensions), 7, 8 Width (screen size), 13 ViewSonic G773... - Page 32 ® ViewSonic 381 Brea Canyon Rd. Walnut, CA 91789 Tel (909) 869-7976 Tel (800) 688-6688 Fax (909) 468-1202 V70420001...
