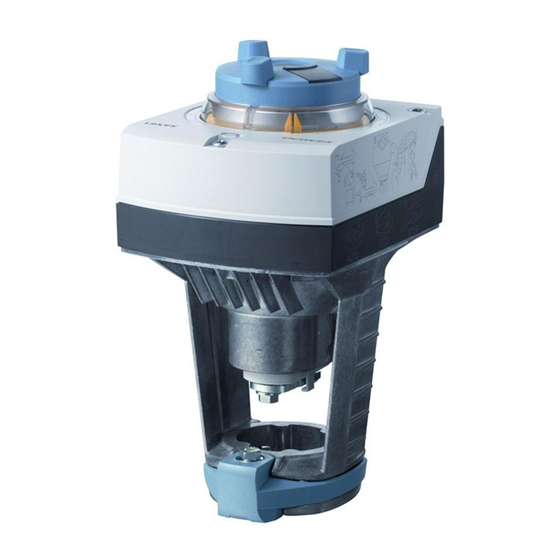

Siemens ACVATIX SAX619.03 Manual

Electromotoric actuators for valves with a 20 mm stroke

Use

CE1Q4501en

2013-11-11

ACVATIX™

Electromotoric actuators for

valves

with a 20 mm stroke

· SAX319.. Operating voltage AC 230 V, 3-position control signal

· SAX619.. Operating voltage AC/DC 24 V, control signal DC 0...10 V,

4...20 mA

· SAX619.. Position feedback, override control,

choice of flow characteristic

· For direct mounting on valves; no adjustments required

· Manual adjuster, position indicator and status indication per LED

· Optional functions with auxiliary switches, potentiometer,

function module

For the operation of Siemens 2-port and 3-port valves, types V..F21.., V..F31..,

V..F40.., V..F41.., V..G41.., VVF52.. and V..F53.. with 20 mm stroke as control and

safety shut-off valves in heating, ventilation and air conditioning systems.
