Introduction to SCALANCE XB-100
Purpose and Validity of Operating Instructions
Explains the manual's purpose and lists covered SCALANCE XB-100 devices, along with related documentation.
Security Information
Provides information on Siemens' industrial security functions and customer responsibilities for network security.
Device Handling and Disposal
Covers procedures for defective devices, recycling, and disposal regulations.
Safety Notices for SCALANCE XB-100
General Safety Notices
Contains general safety notices and warnings, including those for explosion protection.
Safety Notices for Hazardous Areas
Details specific safety requirements for devices used in Hazardous Locations (HazLoc) and FM.
Description of the SCALANCE XB-100 Device
Properties and Functions
Describes the SCALANCE XB-100 as an unmanaged Industrial Ethernet switch with its key features.
Product Overview and Article Numbers
Lists article numbers, provides device views, and explains type designation.
Unpacking and Checking
Instructions on how to unpack and check the product for completeness and damage.
Accessories and Spare Parts
Lists available accessories and spare parts for the SCALANCE XB-100.
Device Views

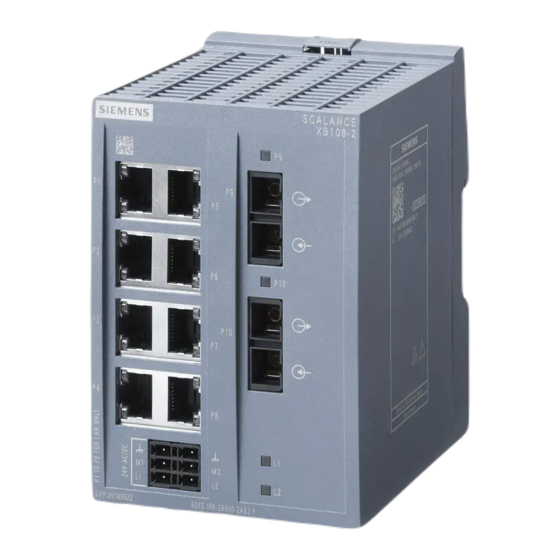

Provides visual overviews of different SCALANCE XB-100 models with component identification.
LED Display Information
Explains the meaning of port LEDs (RJ-45, SC/ST) and power LEDs.
Installation of SCALANCE XB-100
Safety Notices for Installation
Provides safety warnings related to installing the device, including ambient temperature and hazardous areas.
Mounting on DIN Rails
Details the procedure for mounting the device on a DIN rail and removing it.
Connecting Up SCALANCE XB-100
Safety when Connecting Up
Safety notices and warnings to observe when connecting the device, especially in hazardous areas.
Industrial Ethernet Connections
Covers electrical and optical connections for Industrial Ethernet, including connector types.
Wiring Rules
Specifies guidelines for wiring, including cable cross-sections and wire end ferrules.
Power Supply Connection
Details requirements and information for connecting the power supply, including voltage and current.
Functional Grounding
Explains the importance and connection procedure for functional grounding to ensure data transmission immunity.
Upkeep and Maintenance
Low Voltage LED Indicators
Explains how the LED display indicates low voltage conditions.
Handling Defective Devices
Instructions for dealing with defective devices, emphasizing service center repair.
Technical Specifications
SCALANCE XB Series Specifications Overview
Details electrical data, ambient conditions, dimensions, and MTBF for SCALANCE XB models.
Cable Lengths and Switching Properties
Details permitted cable lengths and key switching characteristics of the SCALANCE XB-100.
Mechanical Stability
Specifies mechanical stability ratings under shock and vibration conditions for the SCALANCE XB-100.
Dimension Drawings
Front View Dimensions
Shows front views and dimensions (width, height) for SCALANCE XB108-2, XB112, and XB116.
SCALANCE XB124 Front View Dimensions
Shows the front view and dimensions (width, height) for the SCALANCE XB124.
Side View Dimensions
Shows the side view and depth dimension for the SCALANCE XB-100.
Approvals
Product Approvals Overview
Lists current approvals on the internet and notes for machine manufacturers.
EC Declaration of Conformity
States compliance with EC directives and harmonized European standards.
ATEX, IECEx, and Laser Safety Approvals
Details ATEX/IECEx classifications and laser safety compliance.
EMC, cULus, and Regional Approvals
Covers EMC, cULus, RCM, MSIP, and FM approvals.
