Page 2: Introduction

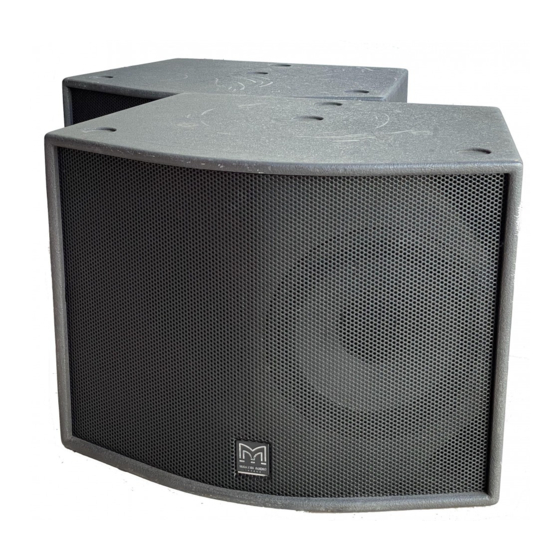

Thank you for purchasing a Martin Audio M2 system controller and ICT500 compact loudspeaker system. The M2 is used to optimise the performance of the ICT500, whether it is used as a stand-alone system or with additional sub-bass enclosures. UNPACKING Every Martin product is built to the highest standard and thoroughly inspected before it leaves the factory. -
Page 3: Mains Connection
Hearing loss is cumulative and can result from levels above 90dB if people are exposed for a long period. Never stand close to loudspeakers driven at high level. Martin Audio – M2 and ICT500... -
Page 4: Tripod Mounting
PRINT GUIDES Tripod mounting The ICT500 incorporates a pole mounting socket to facilitate mounting on tripod stands. When using stands, the following precautions are advised: Ensure that the stand will support the weight of the speaker by checking the stand manufacturers rating. -
Page 5: M2 Connections
M2 OPERATION The M2 is a full range 2-channel system controller which is recommended for use with the Martin Audio ICT500 loudspeaker system. If extra sub bass cabinets are required the M2 has a dedicated sub bass output TRS jack socket. This output is a left and right mono summed output providing the correct crossover point and equalisation to drive additional sub bass amplifiers. -
Page 6: Amplifier Power
When powering down the system, reverse the sequence and switch off the amplifiers first. Connecting to an amplifier The panel at the rear of the ICT500 is fitted with a Neutrik Speakon NL4 connector wired as follows: PIN 1-... -
Page 7: Warranty
GUIDES Cable lengths When connecting an ICT500 to an amplifier, it is recommended that the return resistance of the cable used is less than one tenth of the nominal impedance of the system or systems in parallel. The table below gives an indication of the maximum permissible cable runs for various conductor cross-sectional areas driving 4 ohm loads. -
Page 8: Technical Specifications
(W) 625mm x (H) 470mm x (D) 505mm (W) 24.6ins x (H) 18.5ins x (D) 19.9ins SHIPPING WEIGHT 33kg (72.75lbs) Due to our policy of continuous product improvement all specifications are subject to change without notice. Martin Audio – M2 and ICT500... - Page 9 < > CONTENTS PRINT GUIDES System Controller & ICT500 Compact Loudspeaker Please Click here to return to main menu Please Click here to visit our website MARTIN AUDIO L O N D O N The Martin Experience Century Point, Halifax Road, Cressex Business Park, High Wycombe, Buckinghamshire HP12 3SL, England.
