Summary of Contents for Taco ES2 PURE
- Page 1 INSTALLATION AND OPERATION INSTRUCTIONS TACO ENERGY SAVING ES2 ADAPT ES2 SOLAR ES2 PURE...
- Page 3 Applies only to circulators marked with the energy efficiency index EEI. See the pump name- plate. • RoHS II Directive (2011/65/EU) This CE declaration of conformity is valid only when published as part of the Taco Italia installa- tion and operating instructions. Sandrigo, 31th May 2018...
-
Page 4: Table Of Contents
Performance curves - ES2 70 11.3 Performance curves - ES2 C 60 11.4 Performance curves - ES2 C 70 11.5 Performance curves - ES2 ADAPT 60 11.6 Performance curves - ES2 ADAPT 70 11.7 Performance curves - ES2 SOLAR 60 11.8 Performance curves - ES2 SOLAR 70 11.9... - Page 5 Maintenance Faults, causes and remedies 13.1 Fault finding table 13.2 Unlocking procedure Warranty Disposal Contents...
-
Page 6: Indication Of Instructions
ENERGY SAVING These instructions include information necessary to assemble and use the product correctly. Besides respecting the general safety regulations, it is necessary to observe all points specifi- cally and specially marked. 3 Indication of instructions This manual contains information and prescriptions marked by the following symbols. The inobservance of the safety provisions marked by the symbol “CAUTION”: hazard”... -
Page 7: Important Safety And Installation Instructions
4 Important safety and installation instructions Prior to installation, read these installation and operating instructions. The installation and operation should also be in accordance with national regulations and accepted codes of good practice. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of expe- rience and knowledge, only if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards... - Page 8 ENERGY SAVING 5. Improper use This is a circulator to be used in heating plants and for the circulation of clean water without abrasive particles. This is not a submersible pump. Do not use this circulator: • With liquids other than water (e.g. flammable liquids, etc.) (EN60335-2-51); •...
- Page 9 10. Any modification to the equipment must be prior agreed upon with and au- thorized by the manufacturer. Original spare parts and accessories authorized by the manufacturer are integral part contributing to the safety of the equip- ment and of the machines. The use of not original components or accessories may endanger the safety and causes the termination of the warranty.
-
Page 10: Field Of Application
Circulation of water/liquids in hot water heating systems and in renewable energy solar thermal systems: • Solar thermal systems • One-pipe systems ES2 ADAPT • Two-pipe systems ES2 SOLAR • Systems with constant or variable flows • Underfloor heating systems •... -

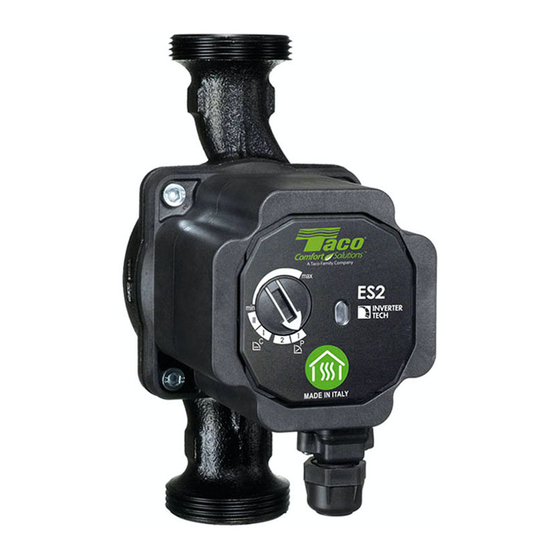

Page 11: Description Of The Product
Pump housing available in cast iron, plastic composite material (C) and plastic composite material with air separator (C A) Premium version with operating modes activeADAPT, P, C and min-max. ES2 ADAPT Pump housing available in cast iron. Solar thermal systems version with operating modes P and min-max. -
Page 12: Name Plate
ENERGY SAVING 6.3 Name plate Type Code Input power P1[W] / Input curren I1[A] / System pressure [MPa] Voltage, frequency Temperature class / Protection class Energy Efficiency Index (EEI) CE mark / Appliance class / Quality mark Fig. 6.1: Name plate (example) 6.4 Components Fig. -
Page 13: Technical Data
Sound pressure level < 43 dB(A) EN 61000-3-2 / EN 61000-3-3 EMC (electromagnetic compatibility) EN 55014-1 / EN55014-2 ES2 60 ES2 ADAPT 60 IEE ≤ 0,20 - Part 2 ES2 SOLAR 60 ES2 C 60 ES2 C 70 Specific EEI values ES2 70 IEE ≤... - Page 14 To avoid condensation in the motor and the electronics the temperature of the pumped liquid must always be greater than the ambient temperature. Ambient temperature Liquid temperature [°C] Min. [°C] Max. [°C] ES2 C ES2 ADAPT ES2 SOLAR Product information...
-
Page 15: Installation At Site
7 Installation at Site Installation and service by qualified personnel only! 7.1 Installation The circulator must be mounted in a stable/fixed position in a dry, well ventilated, frost-free, waterproof and protected place, with sufficient ventilation around it. Assemble the circulator only after having ended all welding and brazing works on the hosing. Before installing the circulator, make sure that the internal part of the tubes is clean. -
Page 16: Permissible Installation Positions
ENERGY SAVING Thread Pump housing material Tightening torque Composite PA 66 GF Max. 50 Nm Cast Iron EN-GJL-200 Max. 85 Nm G1½ Cast Iron EN-GJL-200 Max. 125 Nm Cast Iron EN-GJL-200 Max. 165 Nm 7.2 Permissible installation positions Install the circulator with horizontal motor shaft axis (Fig. 7.2). Fig. -
Page 17: Insulation Of Pump Housing
The heat loss from the pump and pipework can be reduced by insulating the pump housing and the pipe with the thermal insulation shells supplied with the circulator (supplied as standard only with model ES2 ADAPT) → Fig. 7.5. CAUTION Do not insulate the control box or cover the control panel. -
Page 18: Electric Connection
ENERGY SAVING 8 Electric connection The electric connection has to be performed by a qualified electrician in compliance with the national regulations. Follow the safety regulations and installation regulations of your country. Connection to the power supply must be carried out in compliance with the standards via a fixed power cable which is fitted with a plug-type connection or an all-pole isolating switch with a minimum contact opening of 3 mm. -
Page 19: Commissioning
For cables with outer min. Ø 7.0 mm max. Ø 8.5 mm diameter of the sheath between 7 mm and 8.5 mm: remove the rubber retainer from the cable gland. In this case, the circulator can only be installed with the cable gland down. -
Page 20: Automatic Detection Of The Presence Of Air - Vent System
ENERGY SAVING 9.3 Mode of operation A LED provides information about the operation status of the circulator. COLOR DESCRIPTION ActiveADAPT mode The activeADAPT mode enables the circulator to actively adapt its performance to the demands of the system during Violet short control intervals inside a defined control area. - Page 21 9.4 Automatic detection of the presence of air - Vent system 10 min Fig. 9.2: Filling and venting of heating systems Fill and bleed the system correctly. The circulator can be noisy at start due to the presence of air. Such noise should stop after few minutes of operation. Usually the pump rotor chamber normally bleeds automatically after a short time in operation.
- Page 22 Modify the performance of the circulator (head) as needed by rotating the selector using a flat screwdriver, as given in the following table. The selection of the right functioning curve depends on the characteristics of the heating system in question and the actual heat demand. MODEL ES2 ADAPT ES2 SOLAR ES2 PURE activeADAPT *...
-
Page 23: Circulator Setting
11 Performance curves 11.1 Performance curves - ES2 60 15 Q [US.gpm] Q [IMS.gpm] H [m] H [ft] min - max Q [m Q [l/s] 11.2 Performance curves - ES2 70 Q [US.gpm] Q [IMS.gpm] H [m] H [ft] min - max Q [m Q [l/s] Circulator setting... -
Page 24: Performance Curves - Es2 C
ENERGY SAVING 11.3 Performance curves - ES2 C 60 15 Q [US.gpm] Q [IMS.gpm] H [m] H [ft] min - max Q [m Q [l/s] 11.4 Performance curves - ES2 C 70 Q [US.gpm] Q [IMS.gpm] H [m] H [ft] min - max Q [m Q [l/s]... -
Page 25: Performance Curves - Es2 Adapt
11.5 Performance curves - ES2 ADAPT 60 15 Q [US.gpm] Q [IMS.gpm] H [m] H [ft] activeADAPT min - max CIII CIII CIII activeADAPT CI CI activeADAPT Q [m Q [l/s] 11.6 Performance curves - ES2 ADAPT 70 Q [US.gpm] Q [IMS.gpm]... -
Page 26: Performance Curves - Es2 Solar
ENERGY SAVING 11.7 Performance curves - ES2 SOLAR 60 15 Q [US.gpm] Q [IMS.gpm] H [m] H [ft] min - max Q [m Q [l/s] 11.8 Performance curves - ES2 SOLAR 70 Q [US.gpm] Q [IMS.gpm] H [m] H [ft] min - max Q [m Q [l/s]... -
Page 27: Performance Curves - Es2 Pure C
11.9 Performance curves - ES2 PURE C 40 Q [US.gpm] Q [IMS.gpm] H [m] H [ft] min - max Q [m Q [l/s] Performance curves... -
Page 28: Maintenance
ENERGY SAVING 12 Maintenance The circulator does not require any special maintenance during operation. Motor bearings are lubricated by the pumped liquid. Before each maintenance intervention, disconnect power supply and wait for the circulator to cool. 13 Faults, causes and remedies 13.1 Fault finding table FAULTS CONTROL PANEL... -
Page 29: Unlocking Procedure
FAULTS CONTROL PANEL CAUSES REMEDIES Disassemble the motor and clean the impeller if the Should you fail to eliminate The rotor is blocked the cause of the malfunction, Circulator is not refer to the Distributor or running although the nearest Service Center. LED red electrical power supply doesn’t succeed (→... -
Page 30: Warranty
ENERGY SAVING 14 Warranty The warranty covers manufacturing and processing defects. It does not cover damages deriving from incorrect installation or design defects of the system, damages which occur during transport, or seizure due to residues within the system. Proof of purchase is required to administer warranty claims. - Page 32 Taco Italia S.r.l. - Via G. Galilei, 89-91 - 36066 Sandrigo (VI) - ITALY www.tacoitalia.com...
