Summary of Contents for Trueheat RCT6-4

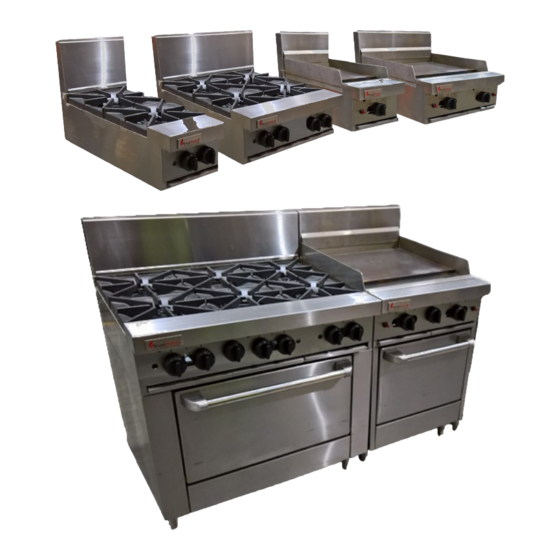

- Page 1 Open Burner, Griddle & Oven Range Trueheat RCT & RCR IO Manual Page 1 of 20...
- Page 2 Reproduction or copying of any part of this manual by any means whatsoever is strictly forbidden unless authorised in writing by Comcater. Comcater reserves the right to change design and specifications without prior notice. © Copyright Comcater Pty Ltd, August 2017. Trueheat RCT & RCR IO Manual Page 2 of 20...
-
Page 3: Table Of Contents
Griddle Seasoning and Maintenance ................15 Daily Cleaning, Stainless Steel, Enamel coated surfaces ..........16 Recommended Service Plan ..................17 TROUBLESHOOTING Burner will not light ......................18 Pilot will not light ......................18 Trueheat RCT & RCR IO Manual Page 3 of 20... -
Page 4: Introduction
INTRODUCTION GENERAL The Trueheat RC Series is designed for commercial catering purposes only and incorporates a wide range of design features. It is designed to deliver high-end performance to fulfill the busy demands within a commercial kitchen. It is available in various appliances and configurations including: Ranges with open burners, griddles with oven or as Counter-Top unit. -
Page 5: Warnings
SUPPLY VALVE TO THE UNIT. CONTACT YOUR GAS SUPPLIER OR AN AUTHORISED PERSON. BEFORE TURNING ON THE MAIN GAS SUPPLY, CHECK THE UNIT TO BE CERTAIN THAT ALL THE VALVES ARE IN THE “OFF” POSITION. Trueheat RCT & RCR IO Manual Page 5 of 20... -
Page 6: General Information
The authorized person installing this equipment must commission the equipment in accordance with AS 5601 - gas leakage, operational checking, adjustments and instructing the owner on use of the equipment are prescribed requirements. Trueheat RCT & RCR IO Manual Page 6 of 20... -
Page 7: Specifications
Adjustable legs for RCT Counter-Top mounting only 432018-900HK 900mm 3/4” flexible gas hose with quick connect fittings & restraint 432018-1200HK 1200mm 3/4” flexible gas hose with quick connect fittings & restraint Trueheat RCT & RCR IO Manual Page 7 of 20... -
Page 8: Gas Configuration
1/8 turn out from fully in NOTES: When checking gas pressure, ensure that all other equipment on the same line is turned “ON”. Values shown are those measured at the manifold pressure test point Trueheat RCT & RCR IO Manual Page 8 of 20... -
Page 9: Gas Consumption By Model
RCT6-4 96 MJ/h 96 MJ/h RCT6-6G 33 MJ/h 33 MJ/h RCT9-2-6G 81 MJ/h 81 MJ/h RCT9-4-3G 112.5 MJ/h 112.5 MJ/h RCT9-6 144 MJ/h 144 MJ/h RCT9-9G 49.5 MJ/h 49.5 MJ/h Trueheat RCT & RCR IO Manual Page 9 of 20... -
Page 10: Installation
Press down firmly until the flue cover is in place. Trueheat RCT & RCR IO Manual Page 10 of 20... -
Page 11: Installation Clearances
NOTE: Unleveled Oven Ranges will affect door alignment and may cause heat to escape around door. DO NOT LAY THE UNIT ON ITS BACK. ENSURE THE UNIT IS CORRECTLY LEVELLED. Trueheat RCT & RCR IO Manual Page 11 of 20... -
Page 12: Leak Test
Natural Gas 25mm 600mm & 900mm Propane Gas Fully Open Oven Burner Natural Gas 25mm Griddle Burner Propane Gas 13mm Both Natural Gas & Open Burner Fully Open Propane Gas Trueheat RCT & RCR IO Manual Page 12 of 20... -
Page 13: Gas Conversion Kits
PERFORM A LEAK TEST BEFORE IGNITING AND CALIBRATING BURNER AND PILOT ADJUSTEMENTS. The RCT & RCR Series of Open burners, Griddles & Ovens can be configured to operate on either Natural Gas or Propane Gas. If a Gas Conversion is required, Gas conversion kits are available through Comcater Spare Parts for either gas type. -
Page 14: Operation
“Low-flame” Position 600mm & 900mm Oven Controls Beneath Oven Kicker Plate Control knob marker “Off” Position “Pilot” Position Pilot viewing hole Pilot viewing hole Piezo ignitor Piezo ignitor Temperature Range Trueheat RCT & RCR IO Manual Page 14 of 20... -
Page 15: Maintenance
Note: The grill plate is made of steel and can be easily scored or dented by careless use of scrapers and spatulas. Trueheat RCT & RCR IO Manual Page 15 of 20... -
Page 16: Daily Cleaning, Stainless Steel, Enamel Coated Surfaces
Place the burner cap back on the burner, ignite and check that the flame is even and comes from all ports (this dries the burner cap). Trueheat RCT & RCR IO Manual Page 16 of 20... -
Page 17: Recommended Service Plan
Check and adjust specified gas pressures Leak test Full operation, performance and safety test For all technical queries, please contact Comcater’s Technical Support Team. Technical Phone Support Phone: 1800 810 161 Email: techsupport@comcater.com.au Trueheat RCT & RCR IO Manual Page 17 of 20... -
Page 18: Troubleshooting
The repair is beyond the scope of the operator, please call Comcater service to organise a technician. For all technical queries regarding troubleshooting please contact Comcater Technical Support: Phone: 1800 810 161 Email: techsupport@comcater.com.au Trueheat RCT & RCR IO Manual Page 18 of 20... - Page 19 NOTES Trueheat RCT & RCR IO Manual Page 19 of 20...
- Page 20 Trueheat RCT & RCR IO Manual Page 20 of 20...
