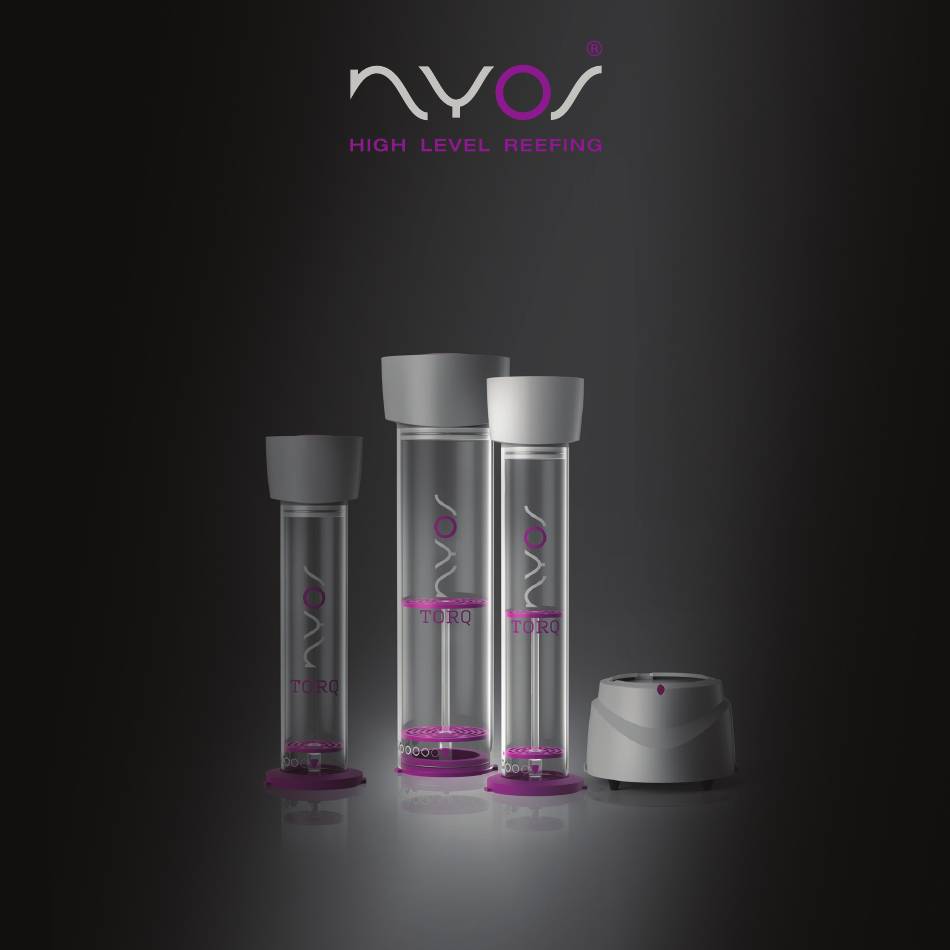

- Page 1 TORQ® system reactor for filter media INSTRUCTIONS TORQ Dock & TORQ Body 0.75 | 1.0 | 2.0 ® ®...
-
Page 2: Table Of Contents
CONGRATULATIONS We congratulate you on the purchase of your new NYOS TORQ ® ® media reactor. Please read the instructions and safety information carefully before you use the device. CONTENTS SAFETY INFORMATION ..............3 WARRANTY................. 4 INSTALLATION AND OPERATION ..........6 RECOMMENDED MEDIA CAPACITIES AND TANK SIZES .. -
Page 3: Safety Information
SAFETY INFORMATION • Only connect the unit if the electrical data of the unit and the power supply coincide. The unit data is to be found on the unit type plate. • The dock may only be connected to an outlet with earth contact. -
Page 4: Warranty
• This device is not intended for the use by persons (inclu- ding children) with limited physical, sensory or mental capacities, unless they are supervised by a person respon- sible for the safety or this person instructed them on how to use the device. - Page 5 EXCLUSION OF WARRANTY This warranty does not cover: • Soiling and lime scale deposits • Dry running of the pump • Wear and tear damages on wear and tear parts (e.g. rotor, seals) • Improper handling and use (including the use of products from other manufacturers) • Any kind of damages (e.g.
-
Page 6: Installation And Operation
Thoroughly check the product after you receive it to ensure that it is complete and has not been damaged in transit. Any damage must immediately be reported to the relevant seller. STEP 01 Positioning the Nyos TORQ Dock in your sump ®... - Page 7 (Fig. 2). • The filter sponge for the lid should always be used. • For small-grain filter media (such as Nyos PHOSI-EX) we ®...
- Page 8 Filling with one filter media 1. Remove the lid by slightly pressing it upwards. The lid is fixated only with an O-ring by clamping effect. 2. The separating screen included with Body 1.0 and 2.0 (part no. 6) can be removed when one filter media is used.
- Page 9 3. For the second filter media, please proceed as follows: Insert the filter sponge without hole into the tube. Push the filter sponge a few centimeters into the tube by using the separating screen. Keep hold of the acrylic stick, and insert the second filter media.
- Page 10 STEP 03 Insert body and start operation • Place the filled body on the dock. The body can only be placed on the dock if the two violet markings point to each other. This is the position for removal and insertion.
- Page 11 • The Nyos TORQ media reactor was desi- ® ® gned in such a way that it is virtually bub- ble-free and silent at optimum use. This requires a run-in period of several days. A smear layer is created on the outside of the body, so that the water fully moistens the body.
-
Page 12: Recommended Media Capacities And Tank Sizes
TORQ Body 1.0 TORQ Body 2.0 ® ® ® Usage of one filter media Phosphate remover (Nyos PHOSi-EX) ® Maxium capacity 450 ml (15 fl oz) 750 ml (25 fl oz) 1.500 ml (50 fl oz) Optimal capacity 350 ml (12 fl oz) 500 ml (17 fl oz) 1.000 ml (34 fl oz) -
Page 13: Faq And Trouble Shooting
FAQ AND TROUBLE SHOOTING PROBLEM CAUSE SOLUTiON Bubbles in the outlet and Water does not fully moisten Wait for a few days (even after splattering the outside of the body cleaning) to allow the smear layer on the outside of the body to regenerate itself Flow rate is too high Reduce flow rate... -
Page 14: General Information
GENERAL INFORMATION Emergency overflow The lid of Nyos TORQ has an emergency overflow on the ® ® top for when the filter sponge in the lid is clogged. Using filter floss For very dirty or abrasive filter media, you can use filter floss in the free space of the lid (Fig. -
Page 15: Maintenance And Cleaning
MAINTENANCE AND CLEANING Filter floss in case of seve- re soiling • Nyos TORQ Bodies can be cleaned easily with tap water. ® ® There is no need to use detergents. • The grid of the pump should be cleaned regularly in order to ensure constant performance. -
Page 16: Spare Parts And Exploded Drawings
PARTS LIST TORQ BODIES ® Number TORQ Body 0.75 TORQ Body 1.0 TORQ Body 2.0 ® ® ® Lid 70 Lid 70 Lid 100 Part No.: T-BSP_2511 Part No.: T-BSP_2511 Part No.: T-BSP_2528 Filter sponge for Filter sponge for Filter sponge for lid 70 lid 70 lid 100... - Page 17 EXPLODED DRAWINGS TORQ BODIES ® TORQ Body 0.75 TORQ Body 1.0 TORQ Body 2.0 ® ® ®...
- Page 18 PARTS LIST AND EXPLODED DRAWING TORQ DOCK ® Number TORQ Dock TORQ DOCK ® ® Motor block Part No.: T-DSP_Motor Impeller Part No.: T-DSP_Imp Shaft Part No.: T-DSP_2740 Bearing Part No.:T-DSP_2757 12, 13, 14 Pump housing with slider Part No.: T-DSP_2764 Dock housing Part No.:T-DSP_2771 Dock base plate...
- Page 19 NOTES...
- Page 20 Manufactured by Nyos Aquatics GmbH, ® Siemensstr. 26, 70825 Korntal-Muenchingen, Germany www.nyos.info, info@nyos.info Patents pending in EU, US and elsewhere. TORQ is a protected ® trademark of Nyos Aquatics GmbH. ®...
