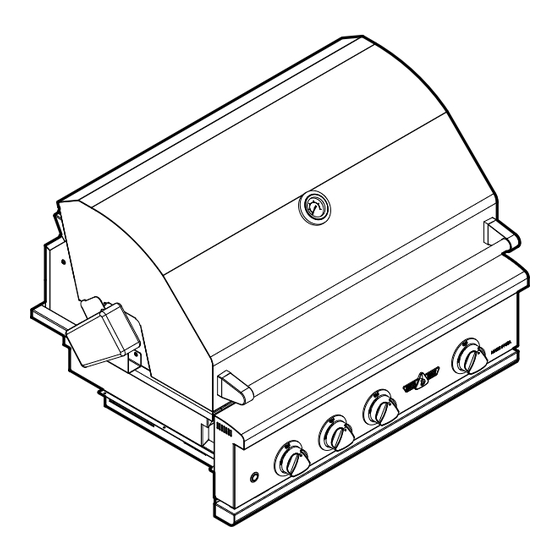

- Page 1 DELTA HEAT GAS GRILL INSTALLATION, USE, & CARE MANUAL MODELS: DHBQ26G-D DHBQ32G-D DHBQ32R/S-D DHBQ38G-D DHBQ38R/S-D P/N: 17542A 10/18...
- Page 3 A Special Message to our Customers... Congratulations on your purchase of Delta Heat gas barbecue grill. Delta Heat is committed to making outdoor cooking products you’ll be proud to own for years. This manual gives you easy to follow instructions for installing, operating and maintaining your Delta Heat grill.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING! Read this manual carefully and completely before using your grill to ensure proper op- eration, proper installation, proper servicing and to reduce the risk of fire, burn hazard and/ or other injury. AVERTISSEMENT! Lire ce manuel avec soin et en entier avant l’utilisation de votre barbecue afin d’en assurer un fonctionnement, une installation et un entretien adéquats et réduire le risque d’in- cendie, de brûlures et d’autres blessures.
- Page 5 • The pressure regulator and hose assembly supplied with the Delta Heat Gas Grill must be used. Replacement pressure regulators and hose assemblies must be those specified by DELTA HEAT.
-
Page 6: Table Of Contents
TABLE OF CONTENTS GETTING STARTED GAS SAFETY REQUIREMENTS LP GAS HOOK-UP PORTABLE LP CONNECTION NATURAL GAS INSTALLATION LEAK TEST ELECTRICAL REQUIREMENT WIRING DIAGRAM BURNER FLAME / AIR SHUTTER ADJUSTMENT LOCATING THE GRILL GRILL CUT-OUT DIMENSIONS INSULATION JACKET ASSEMBLY INSTRUCTIONS 14-15 OPERATING INSTRUCTIONS 16-18 WINDY CONDITIONS... -
Page 7: Getting Started
DER THE SUN WITH PROTECTIVE PLASTIC FILM ON FOR A LONG PERIOD OF TIME AS IT WILL BECOME DIFFICULT TO REMOVE THE FILM. 2. Check to ensure that all grill accessories listed below are included. GRILL ACCESSORIES DHBQ26G-D DHBQ32/38G-D DHBQ32/38R/S-D GRATE, STAINLESS STEEL BRIQUETTE TRAY ASSEMBLY 3 / 2... - Page 8 GETTING STARTED - CONT. 5. Get familiar with the knobs and burners identification below: DHBQ26G-D DHBQ32G-D GRILL BURNER GRILL GRILL BURNER GRILL SEAR ZONE (OPT) BURNER SEAR ZONE (OPT) BURNER DHBQ38R/S-D DHBQ32R/S-D DHBQ38G-D GRILL BURNER / GRILL GRILL BURNER /...
-
Page 9: Gas Safety Requirements
Do not operate the gas grill indoors or in any enclosed area. If the gas grill is not in use, the gas must be turned off at the supply cylinder. If the grill is to be stored indoors, disconnect the gas supply cylinder and leave the cylinder outdoors. Delta Heat Service (562) 263-3600 | 3... -
Page 10: Lp Gas Hook-Up
TO ALLOW HOOD BRASS COUPLING TO FULLY OPEN INSTALLER SUPPLIED 1/2 NPT X 1/2 FLARE REGULATOR SET AT 10” WC (LP) (MUST BE PURCHASED FROM DELTA HEAT) FACTORY SUPPLIED HI-PRESSURE LP TYPICAL BOTTOM HOSE ASSEMBLY GAS CONNECTION FACTORY SUPPLIED VENTS REQUIRED ON... -
Page 11: Portable Lp Connection
DO NOT STORE SPARE LP GAS CYLINDER UNDER OR NEAR THIS APPLIANCE. NEVER FILL THE CYLINDER BEYOND 80 PERCENT FULL. FAILURE TO DO SO, A FIRE CAUSING DEATH OR SERIOUS INJURY MAY OCCUR Delta Heat Service (562) 263-3600 | 5... -
Page 12: Natural Gas Installation
Do not use any replacement regulator other than that specified by DELTA HEAT. Use only pipe sealants that are approved for use with Natural and LP gases. An installer-supplied gas shutoff valve must be installed in an accessible location. -
Page 13: Leak Test
Check to ensure that flexible hoses do not have any cuts and wear that may affect the safety before each use. Only the factory supplied hose and regulator must be used. Use only replace- ment regulator and hose assemblies specified by DELTA HEAT. LEAK TEST 1. -
Page 14: Electrical Requirement
ELECTRICAL REQUIREMENT TO INSTALL AND SECURE POWER TRANSFORMER Grill models with interior lights have a power transformer with an attached power supply cord. This transformer must be secured in a dry location and away from the grill firebox and excessive heat area. -
Page 15: Wiring Diagram
PLUG IGNITER IGNITER HALOGEN HALOGEN LAMP LAMP LED LIGHT LED LIGHT LED LIGHT LED LIGHT 2 PIN PLUG FOR SIDE BURNER MICRO MICRO MICRO MICRO SPARK SWITCH SWITCH SWITCH SWITCH MODULE ILLUMINATION SWITCH Delta Heat Service (562) 263-3600 | 9... -
Page 16: Burner Flame / Air Shutter Adjustment
BURNER FLAME / AIR SHUTTER ADJUSTMENT Each grill burner is tested and adjusted at the factory prior to shipment; however, variations in the local gas supply may make it necessary to adjust the burners. The flames of the U-burners should be visually checked. -
Page 17: Locating The Grill
Le gril peut être installé directement à proximité d’une construc- tion incombustible en-dessous de la surface de cuisson. Delta Heat Service (562) 263-3600 | 11... -
Page 18: Grill Cut-Out Dimensions
GRILL CUT-OUT DIMENSIONS THESE DIMENSIONS ARE FOR NON-COMBUSTIBLE CONSTRUCTION ONLY. FOR COMBUSTIBLE CONSTRUCTION SEE NEXT PAGE. (SHOWN) DHBQ38R/S-D DHBQ38G-D DHBQ32G-D (SHOWN) DHBQ32R/S-D DHBQ26G-D 19 3/4 36 1/2 9 1/2 19 3/4 30 1/2 9 1/2 19 3/4 24 1/2 9 1/2... -
Page 19: Insulation Jacket
Do not build the grill under overhead combustible construction. If the grill is to be placed into com- bustible enclosure, an approved insulating jacket is necessary to prevent fire, property damage and bodily injury. Use only Delta Heat (DHIJ26, 32, 38) insulating jacket. IMPORTANT If using LP gas cylinder and insulation jacket (DHIJ), use stainless flexible hose to connect LP gas cylinder to grill regulator. -
Page 20: Assembly Instructions
ASSEMBLY INSTRUCTIONS The DELTA HEAT Grill is produced fully assembled and tested in the factory and requires no major assembly in the field. For the purpose of safe shipping and transit, some parts such as the briquette trays and rotisserie components are wrapped inside the grill and require minor assembly. - Page 21 3. Place a basting pan on top of the stainless steel grates to catch the drippings (basting pan not sup- plied) BATTERY LOCATION INSTALL THE BATTERY AS SHOWN Delta Heat Service (562) 263-3600 | 15...
-
Page 22: Operating Instructions
OPERATING INSTRUCTIONS BEFORE LIGHTING THE GRILL • DO NOT ATTEMPT TO LIGHT THE GRILL IF YOU SMELL GAS. • WARNING! IT IS CRITICAL THAT THE GAS BURNERS ARE PROPERLY INSTALLED WITH THEIR ORIFICES INSIDE THE BURNERS AIR SHUTTERS. If not properly installed, gas may leak outside of the burner that could lead to fire, potential damage to your grill, bodi- ly injury or death. - Page 23 5. Allow grill to cool, then clean the drip pan after each use. INTERIOR LIGHT OPERATION The DELTA HEAT grill is equipped with interior halogen lights for late night grilling. The grill is equipped with a switch that controls the functionality of the interior lights.
- Page 24 OPERATING INSTRUCTIONS - CONT. USING THE ROTISSERIE BURNER (For DHBQ32R-D & DHBQ38R-D Units) The Rotisserie system rotates the food in front of infrared burner heat for even cooking and juicier taste. 1. Install the rotisserie motor on the motor bracket and plug it in to proper voltage. Reference electrical requirements.
-
Page 25: Windy Conditions
Delta heat grill features advanced engineering with features like our “Delta Heat Wave” that deflect wind as well as internal heat shields and insulation to protect electrical components. -
Page 26: Cleaning & Maintenance
However, the conditions outlined above, along with neglect, can lead to surface corrosion or rust. It is recommended that your Delta Heat products be kept dry and covered when not in use. This is even more important when long-term storage is intended. - Page 27 3. Replace the trim that holds briquette. CAUTION: DO NOT place briquette trays over the infrared sear zone burner. This will block the infrared heat and will cause dam- age to the tray. Delta Heat Service (562) 263-3600 | 21...
- Page 28 CLEANING & MAINTENANCE - CONT. BURNERS Burners are made of heavy gauge stainless steel and can be soaked in water and cleaned with a wire brush. Check every port hole for clogs. Use a wire pin to clean out clogged ports. Make sure the burner is dry before installing it back into the grill.
-
Page 29: Troubleshooting Guide
TROUBLESHOOTING GUIDE BEFORE CALLING FOR SERVICE: If your DELTA HEAT grill does not function properly, use the following troubleshooting guide before contacting your dealer for service. The troubleshooting guide may save the cost of a service call and the inconvenience of being without your grill. -
Page 30: Exploded View
EXPLODED VIEW 24 | www.deltaheat.com... -
Page 31: Replacement Parts List
REAR HOOD LINER, 38” R S15303 NG REGULATOR S16355 LED, BLUE S13199 KNOB, BEZEL S13201 DELTA HEAT LOGO S13195 DELTA HEAT KNOB S23327 MANIFOLD PLATE COVER S16274-1 SPARK IGNITER (U-BURNER) S16288 IGNITER, SEAR ZONE S16272 BATTERY PACK Delta Heat Service (562) 263-3600 | 25... - Page 32 REPLACEMENT PARTS LIST - CONT. ITEM DHBQ DHBQ DHBQ DHBQ DHBQ DHBQ DHBQ DHBQ DHBQ DHBQ PART NO. DESCRIPTION 26G-N 26G-L 32G-N 32G-L 32R/S-N 32R/S-L 38G-N 38G-L 38R/S-N 38R/S-L S23338-26G PANEL, FRONT, 26, G S23338-32G PANEL, FRONT. 32, G S23338-32R PANEL, FRONT, 32, R S23338-38G PANEL, FRONT, 38, G...
- Page 33 I.R. FLEX TUBING FUSE, 6.3A 250V 5X20MM SLOW S16290 BLOW GLASS 6-32 X 1/4 PH PAN TYPE F BEZEL S14121 SCREW SCREW, 10-24 X 1/2, PH, PAN, TYPE S14275 F, S/S S15141 BRASS, PLUG Delta Heat Service (562) 263-3600 | 27...
-
Page 34: Warranty
3600. Be prepared to furnish the following information: Purchaser’s name, model and serial number of the grill, date of purchase and the accurate description of the problem. Delta Heat will not pay for service calls for correcting an installation problem. Owner shall be responsible for proper installation, providing normal care and maintenance, providing proof of purchase upon request and making the grill accessible for service. -
Page 35: How To Obtain Service
HOW TO OBTAIN SERVICE For service, please contact your DELTA HEAT dealer or call DELTA HEAT direct at (562) 263-3600 or (800) 422-0091 or fax (562) 802-3391 Mailing address: DELTA HEAT, Inc. 13259 166th Street Cerritos, CA 90703 Visit us at www.deltaheat.com Please provide: •... - Page 36 PLACE POSTAGE HERE Customer Service ATTN: Warranty Department 13259 166th Street Cerritos, CA 90703 Service Direct Line: (562) 263-3600 Fax: (562) 801-3391...
