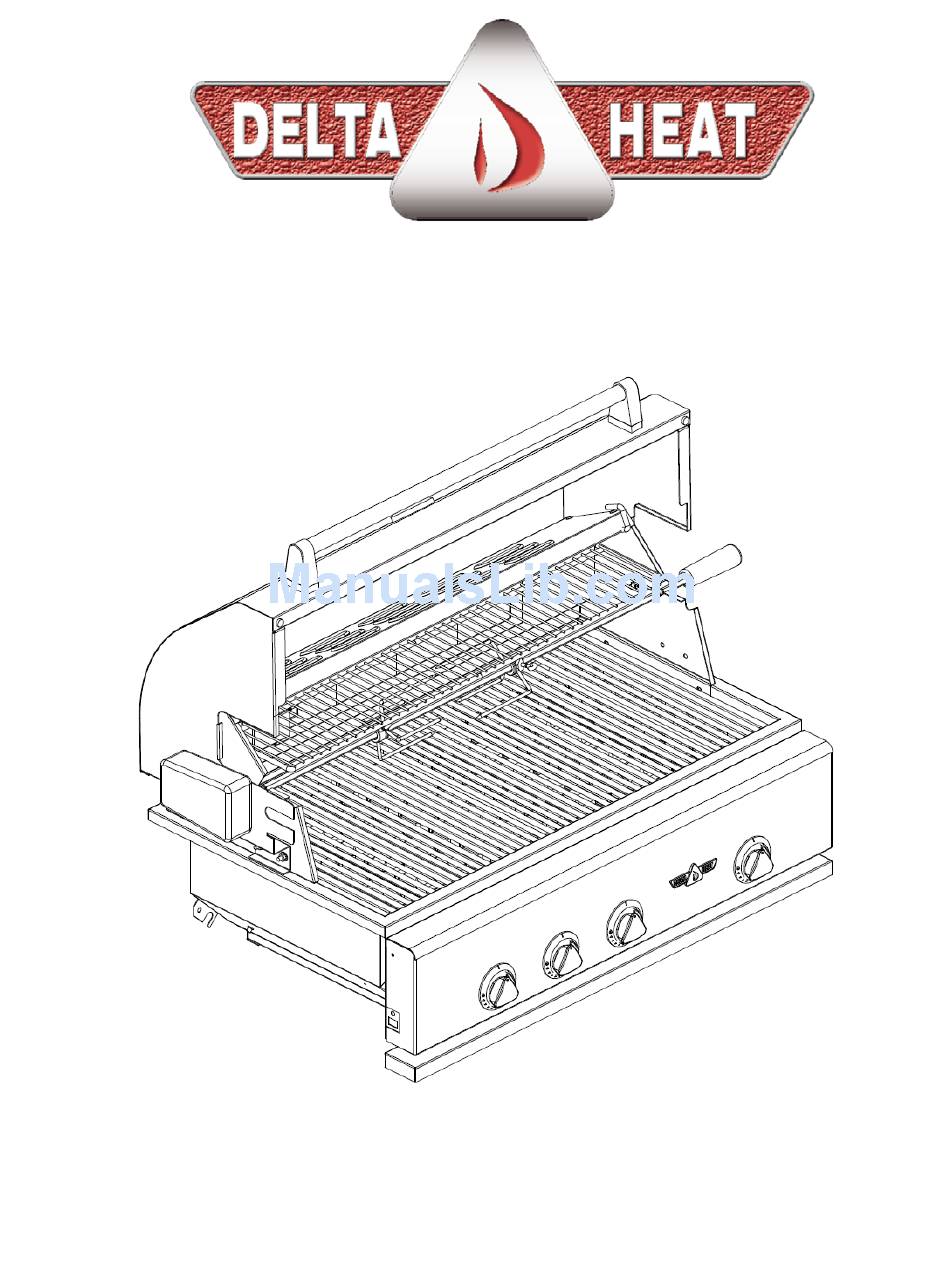

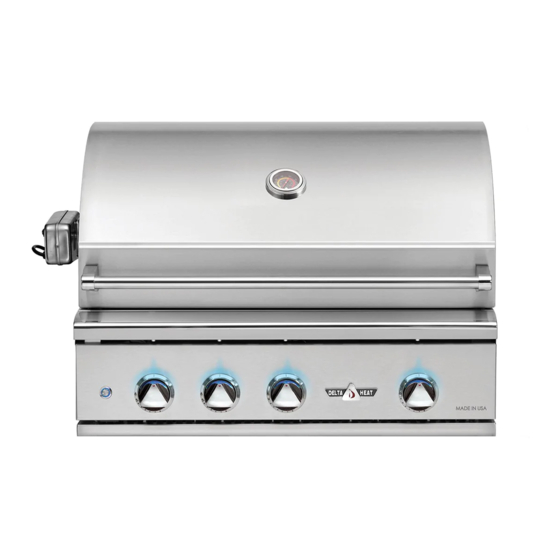

- Page 1 ELTA RILL INSTALLATION, USE & CARE MANUAL Models DHBQ26G DHBQ32G DHBQ38R P/N: 18617E (03/12)
- Page 2 A special message… Congratulations on your purchase of Delta Heat gas barbecue grill. Delta Heat is committed to making outdoor cooking products you’ll be proud to own for years. This manual gives you easy to follow instructions for installing, operating and maintaining your Delta Heat grill.
-
Page 3: Important Safety Information
– D IMPORTANT SAFETY INFORMATION ELTA RILL WARNING! Read this manual carefully and completely before using your grill to ensure proper operation, proper installation, proper servicing and to reduce the risk of fire, burn hazard and/ or other injury. F O R Y O U R S A F E T Y A V E R T I S S E M E N T If you smell gas: S’il y a une odeur de gaz:... - Page 4 Without the drip pan, hot grease and debris could leak downward and produce a fire hazard. 13. The pressure regulator and hose assembly supplied with the Delta Heat Gas Grill must be used. Replacement pressure regulators and hose assemblies must be those specified by Delta Heat.
-
Page 5: Table Of Contents
– D TABLE OF CONTENTS ELTA RILL GETTING STARTED…………………………………………………………………… …………….. 2 GAS REQUIREMENTS o GAS SAFETY REQUIREMENT……………………………………………………….. o LP GAS HOOKUP………….…………………………………………………………… 5 o PORTABLE LP CONNECTION………….………………………………………..…… 6 o NATURAL GAS INSTALLATION…………………………………………………..… 7 o LEAK TEST…………………………………………………………………………….. ELECTRICAL REQUIREMENTS AND ELECTRICAL DIAGRAM…………………………..…. WIRING CONNECTION DRAWING DIAGRAM………………………………..…………………. -
Page 6: Getting Started
UNDER THE SUN WITH PROTECTIVE PLASTIC FILM ON FOR A LONG PERIOD OF TIME AS IT WILL BE DIFFICULT TO REMOVE THE FILM. 2. Check to ensure that all grill accessories listed below are included. Grill Accessories DHBQ26G DHBQ32G DHBQ38R Grate, Stainless Steel Briquette Tray Assy. - Page 7 Get familiar with the knobs and burners identification below. DHBQ26G DHBQ32G Grill Burner Grill Grill Burner Grill Grill Burner Sear Zone (Opt) Sear Zone (Opt) Burner Burner DHBQ38R Grill Burner Rotisserie Grill Grill Sear Zone (Opt) Burner Burner Infrared Rotisserie Burner located...
-
Page 8: Gas Requirements
– D GAS SAFETY REQUIREMENTS ELTA RILL Each appliance is set and tested at the factory for the type of gas supply to be used. Identify the type of gas, either natural gas or LP gas and make sure that the marking on the data plate (rating plate) matches the gas being supplied to the grill. -
Page 9: Lp Gas Hookup
– D LP GAS HOOK-UP ELTA RILL Install the factory-supplied hose and regulator assembly as shown. Connect the ” flare end of the hose to the grill coupling using a ¾” open wrench. Do not apply pipe sealant to the ”... -
Page 10: Portable Lp Connection
– D PORTABLE LP CONNECTION ELTA RILL NOTE: Use only a 20-lbs. (5 gallon capacity) gas cylinder. WARNING: DO NOT PLACE MORE THAN ONE CYLINDER IN THE BASE CABINET ENCLOSURE AT ANY TIME. WARNING: DO NOT USE A DENTED OR RUSTED LP CYLINDER. -
Page 11: Natural Gas Installation
Do not use any replacement regulator other than that specified by DELTA HEAT. Use only pipe sealants that are approved for use with natural and LP gases. An installer-supplied gas shutoff valve must be installed in... -
Page 12: Leak Test
Check to ensure that flexible hoses do not have any cuts and wear that may affect the safety before each use. Only the factory supplied hose and regulator must be used. Use only replacement regulator and hose assemblies specified by DELTA HEAT. LEAK TEST 1) Prepare a leak testing solution of sudsy water by mixing in a spray bottle with half liquid soap and half water. -
Page 13: Electrical Requirements And Electrical Diagram
– D ELECTRICAL REQUIREMENTS ELTA RILL TO INSTALL AND SECURE POWER TRANSFORMER Grill models with interior lights have a power transformer with an attached power supply cord. This transformer must be secured in a dry location and away from the grill firebox and excessive heat area. -
Page 14: Wiring Connection Drawing Diagram
– D WIRING DIAGRAM ELTA RILL 120 V 12 V DHBQ26G SPARK SPARK IGNITER IGNITER 120 V 12 V DHBQ32G SPARK SPARK SPARK IGNITER IGNITER IGNITER 120 V 12 V SPARK DHBQ38R IGNITER SPARK SPARK SPARK IGNITER IGNITER IGNITER... -
Page 15: Locating The Grill
– D LOCATING THE GRILL ELTA RILL This gas appliance is design and certified for outdoor use only. Do not locate this grill under overhead combustible surfaces. Do not operate the grill inside a building, garage, recreation vehicle or any enclosed area. When choosing an area, consider exposure to wind, proximity to traffic paths and length of gas supply line. -
Page 16: Grill
– D GRILL CUT-OUT DIMENSIONS ELTA RILL 19 3/4 DETAIL SEE DETAIL (TYPICAL TO ALL TOP UNITS) -
Page 17: Assembly Instructions
– D ASSEMBLY INSTRUCTIONS ELTA RILL ELTA Grill is produced fully assembled and tested in the factory and requires no major assembly in the field. For the purpose of safe shipping and transit, some parts such as the briquette trays and rotisserie components are wrapped inside the grill and require minor assembly. Check to ensure that all packaging material have been removed prior to grill operation. -
Page 18: Rotisserie
ROTISSERIE ASSEMBLY For Larger Loads 1. Install the rotisserie motor horizontally as shown. The motor socket hole will line up with the front notch of the saddles. 2. Insert the rotisserie-rod into the motor socket hole and place the rod on the front notch of each saddle. -
Page 19: Operating Instructions
– D OPERATING INSTRUCTIONS ELTA RILL BEFORE LIGHTING THE GRILL DO NOT ATTEMPT TO LIGHT THE GRILL IF YOU SMELL GAS. WARNING! IT IS CRITICAL THAT THE GAS BURNERS ARE PROPERLY INSTALLED WITH THEIR ORIFICES INSIDE THE BURNERS AIR SHUTTERS. If not properly installed, gas may leak outside of the burner that could lead to fire, potential damage to your grill and bodily injury. -
Page 20: Match Lighting Instructions
Match/BBQ Lighter Lighting Instructions: If there is no electrical power supply available or if spark igniter will not light the burners, the burners can be lit manually using a lighted long match, taper or BBQ lighter. 1. Push and turn the knob counter-clock-wise to the biggest flame marking on the bezel. -
Page 21: Using The Rotisserie Burner
USING THE ROTISSERIE BURNER (For DHBQ38R Units) The Rotisserie system rotates the food in front of infrared burner heat for even cooking and juicier taste. 1. Install the rotisserie motor on the motor bracket and plug it in to proper voltage. Reference electrical requirements. -
Page 22: Cleaning And Maintenance
ELTA RILL STAINLESS STEEL DELTA HEAT grill is made of all welded stainless steel. It is non-rusting and non-magnetic. Never clean the stainless steel when it is hot. After the initial grilling use, certain areas of the grill may discolor. This is a normal discoloration caused by the intense heat given off by the burners. Specks of grease can gather on the surface of the stainless steel and get baked-on. -
Page 23: U-Burner & Sear Zone Burner
BURNERS Burners are made of heavy gauge stainless steel and can be soaked in water and cleaned with wire brush. Check every port hole for clogs. Use a wire pin to clean out clogged ports. Make sure the burner is dry before installing it back to the grill. INFRARED SEAR ZONE BURNER INFRARED SEAR ZONE BURNER The infrared burner has stainless housing and protective... -
Page 24: Trouble Shooting Guide
RILL BEFORE CALLING FOR SERVICE: If your DELTA HEAT grill does not function properly, use the following troubleshooting guide before contacting your dealer for service. The troubleshooting guide may save the cost of a service call and the inconvenience of being without your grill. -
Page 25: Exploded View
– D EXPLODED VIEW ELTA RILL 3, 4, 5 8, 9, 10 11, 12, 13 16, 17, 18 46, 47, 48 44, 45 29, 30, 31 24, 23 41, 42 35, 36, 37 38, 39, 40... -
Page 26: Replacement Parts List
Front Panel (32”) S22070-38 Front Panel (38”) S22095-26Y 26” Drip Pan Assembly S22095-32Y 32” Drip Pan Assembly S22095-38Y 38” Drip Pan Assembly S13163 Delta Heat Logo S14160 Logo Clip S13162 Delta Heat Knob S13165 Stainless Steel Knob Bezel S14136 Bezel Screw S12742YN Manifold Assembly (26”) NG... - Page 27 REPLACEMENT PARTS LIST – ELTA RILL CONTINUED DHBQ DHBQ DHBQ DHBQ DHBQ DHBQ Item No. TE Part No. Description 26GN 26GL 32GN 32GL 38RN 38RL S13355 Wire Mesh, (IR Sear Zone Burner) S13353 I.R. Sear Zone Burner S12602 Brass Coupling ( 3/8 Flare x ½ FIP ) S15344 LP Regulator with Hose Assembly S15103...
-
Page 28: Limited Product Warranty
800-422-0091. Be prepared to furnish the following information: Purchaser’s name, model and serial number of the grill, date of purchase and the accurate description of the problem. Delta Heat will not pay for service calls for correcting an installation problem. Owner shall be responsible for proper installation, providing normal care and maintenance, providing proof of purchase upon request and making the grill accessible for service. -
Page 29: Warranty Registration Card
HOW TO OBTAIN SERVICE For service, please contact your DELTA HEAT dealer or call DELTA HEAT direct at (800) 422- 0091 Mailing address: DELTA HEAT, Inc. 13231 166 Street Cerritos, CA 90703 Visit us at www.deltaheat.com Please provide: Model number ... - Page 30 Here Place Postage Here Customer Service ATTN: Warranty Department 13231 166 Street Cerritos, CA 90703...
