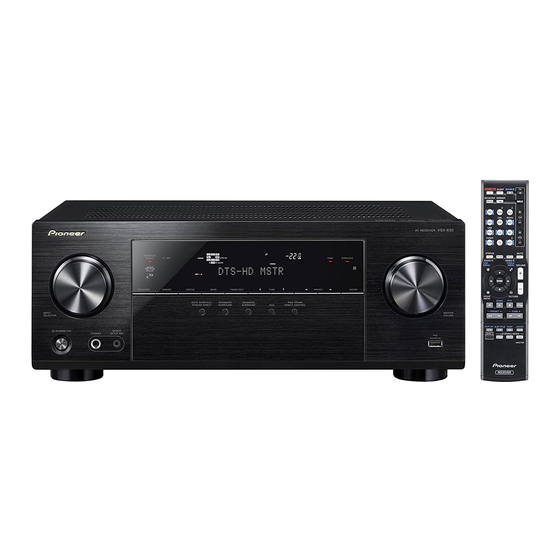

Pioneer VSX-45 ELITE Service Manual

AV Receiver
VSX-830-K
VSX-45
VSX-830-S
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model Type
VSX-830-K CUXESM
VSX-45 CUXE
VSX-830-K SYXEV8
VSX-830-S SYXEV8
THIS SERVICE MANUAL SHOULD BE USED TOGETHER WITH THE FOLLOWING MANUAL(S).
Model
VSX-830-K, VSX-45, VSX-830-S
PIONEER CORPORATION
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION
Power Requirement
AC 120 V
AC 120 V
AC 220 V to 230 V
AC 220 V to 230 V
Order No.
RRV4595 SCHEMATIC DIAGRAM, PCB CONNECTION DIAGRAM, PCB PARTS LIST
1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan
2015
VSX-830-K
Remarks
K-MZV MAR.
ORDER NO.
RRV4594
Remarks
2015 Printed in Japan
