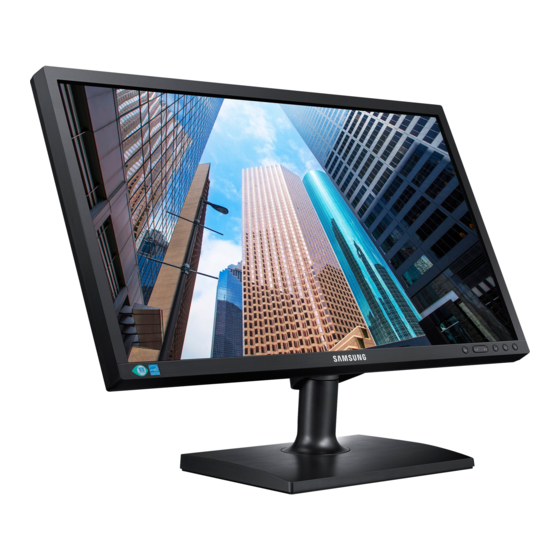

User Manual
SE200 SE450 SE650 SERIES
The color and the appearance may differ depending on the product, and the specifications are subject to change without prior
notice to improve the performance.
The contents of this manual are subject to change without notice to improve quality.
© Samsung Electronics
Samsung Electronics owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.
Trademarks other than that of Samsung Electronics are owned by their respective owners.
•
An administration fee may be charged if either
‒ (a) an engineer is called out at your request and there is no defect in the product
(i.e. where you have failed to read this user manual).
‒ (b) you bring the unit to a repair center and there is no defect in the product
(i.e. where you have failed to read this user manual).
•
The amount of such administration charge will be advised to you before any work or home visit is carried out.
Advertisement
Table of Contents
Related Manuals for Samsung SE650 SERIES
Summary of Contents for Samsung SE650 SERIES
- Page 1 © Samsung Electronics Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. Trademarks other than that of Samsung Electronics are owned by their respective owners.
-
Page 2: Table Of Contents
Changing Brightness, Contrast and Sharpness Screen Setup settings Gamma Changing the Volume setting Brightness Adjusting the Product Tilt (SE200 Series) Adjusting the Product Tilt and Height Contrast (SE450, SE650 Series) Resizing or Relocating the Screen Rotating the Monitor (SE450, SE650 Series) - Page 3 Source Detection (Except S19E200NW / Extended warranty S19E200NY / S22E200N / S22E200NY) INFORMATION Installing the Software MultiScreen Troubleshooting Guide Requirements Before Contacting Samsung Customer Service Center Testing the Product Checking the Resolution and Frequency Check the following. Q & A...
-
Page 4: Before Using The Product
Be sure to allow the amount of space as shown below or greater when installing ― Contact your nearest Samsung Customer Service Center if you want to clean the inside of the product the product. (Service fee will be charged.) ―... -
Page 5: Symbols
‒ Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the monitor. • Only use the power cord provided with your product by Samsung. Do not use the power cord with ‒ Do not spray water or detergent directly on the product. -
Page 6: Installation
Do not expose the product to direct sunlight, heat, or a hot object such as a stove. ‒ Be sure to consult Samsung Customer Service Center if you want to install the product at such a ‒ The product lifespan may be reduced or a fire may result. -
Page 7: Operation
There is a high voltage inside the product. Never disassemble, repair or modify the product ‒ Be sure to power off the product and disconnect the power cord when water or other foreign yourself. substances have entered the product. Then contact Samsung Customer Service Center. ‒ Contact Samsung Customer Service Center for repairs. •... - Page 8 Caution • Leaving the screen fixed on a stationary image for an extended period of time may cause afterimage burn-in or defective pixels. ‒ Activate power-saving mode or a moving-picture screen saver if you will not be using the product for an extended period of time. •...
-
Page 9: Preparations
Key Guide Eye Saver Mode function can be used by pressing the button. (The SE200 Series, S**E450B*, S**E650B*, S**E450D* Saver Mode is available even when the OSD control is locked.) Press to enable or disable Eye Saver Mode. -
Page 10: Reverse Side
Reverse Side Icons Description Confirm a menu selection. ― The color and shape of parts may differ from what is shown. Specifications are subject to change without Pressing the button when the OSD menu is not displayed will change notice to improve quality. the input source (Analog DisplayPort... -
Page 11: Right Side View (S**E450D*)
Right Side View (S**E450D*) ― The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Port Description Connect to a USB device. ― Applicable to the stand models that have USB ports only. -
Page 12: Changing Brightness, Contrast And Sharpness Settings
IN port. Brightness ― The functions available on the monitor may vary depending on the model. Refer to the actual product. ― This menu is not available when SAMSUNG Bright is set to Dynamic Contrast mode. -
Page 13: Adjusting The Product Tilt (Se200 Series)
Adjusting the Product Tilt (SE200 Series) Adjusting the Product Tilt and Height (SE450, SE650 Series) ― The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. ― The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. -
Page 14: Rotating The Monitor (Se450, Se650 Series)
― The locking device shape and locking method depend on the manufacturer. Refer to the user guide You can rotate your monitor as shown below. provided with your anti-theft locking device for details. To lock an anti-theft locking device: SE200 Series SE450, SE650 Series DVI IN RGB IN POWER IN Fix the cable of your anti-theft locking device to a heavy object such as a desk. -
Page 15: Installing A Wall-Mount Kit Or Desktop Stand
― Power the product off and remove the power cable from the power socket. SE200 Series Place a protective cloth or cushion on a flat surface. Next, place the product with the face down on top of the cloth or Unfasten the screw from the back of the product. - Page 16 ‒ Samsung shall not be held liable for any product damage or personal injury caused by using a wall-mount kit other than the one specified or from an attempt to install the wall-mount kit on your own.
- Page 17 ‒ Samsung shall not be held liable for any product damage or personal injury caused by using a wall-mount kit other than the one specified or from an attempt to install the wall-mount kit on your own.
-
Page 18: Installation
Installation Attaching the Stand (SE200 Series) ― Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards. ― The exterior may differ depending on the product. Insert the Stand Connector into the Stand in the Check if the Stand Connector is firmly connected. -
Page 19: Attaching The Stand (Se450, Se650 Series)
Attaching the Stand (SE450, SE650 Series) ― Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards. ― The exterior may differ depending on the product. ― Disassembly is the reverse order of assembly. Place a protective cloth or cushion on a flat Do not remove the fixing pin until you are Insert the stand base into the stand in the... -
Page 20: Removing The Stand (Se200 Series)
Removing the Stand (SE200 Series) ― Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards. ― The exterior may differ depending on the product. Place a soft cloth over the table to protect the product... -
Page 21: Connecting And Using A Source Device
Chapter 03 Connecting and Using a Source Device Read below before installing the monitor. Connecting and Using a PC Check the shapes of both ends of the cables that came with the monitor, and check the shapes and Select a connection method suitable for your PC. ―... -
Page 22: Connection Using The Dvi Cable
Connection Using the DVI Cable Connection Using the DVI-HDMI Cable Check to make sure that the power cables for the monitor and external devices, such as Check to make sure that the power cables for the monitor and external devices, such as computers and set-top boxes, are not connected to the power outlet. -
Page 23: Connecting To Headphones Or Speakers
Connecting to Headphones or Speakers (S**E450M*) Connecting the Power POWER IN To use the product, connect the power cable to a power outlet and the POWER IN port on the product. ― The input voltage is switched automatically. ― Applicable to the models that have speakers only. -
Page 24: Connecting A Usb Device (S**E450D*)
Connecting a USB device (S**E450D*) Connect the port of the monitor and the USB port of the computer with the USB cable. ― To use port, you have to connect the UP (Upstream Cable) to the PC. ― Applicable to the stand models that have USB ports only. ―... -
Page 25: Correct Posture To Use The Product
Driver Installation ― You can set the optimum resolution and frequency for this product by installing the corresponding drivers. ― To install the latest version of the product driver, download it from the Samsung Electronics website at http://www.samsung.com. Setting Optimum Resolution An information message about setting optimum resolution will appear if you power on the product for the first time after purchase. -
Page 26: Screen Setup
Specifications are subject to change without notice to improve quality. Adjust the contrast between the objects and background. (Range: 0~100) Brightness A higher value will increase the contrast to make the object appear clearer. ― This option is not available when SAMSUNG Bright is in Cinema Dynamic Contrast mode. -
Page 27: Eye Saver Mode
Eye Saver Mode SAMSUNG MAGIC Bright Set to an optimum picture quality suitable for eye relaxation. This menu provides an optimum picture quality suitable for the environment where the product will be used. TÜV Rheinland “Low Blue Light Content” is a certification for products which meet requirements for ―... -
Page 28: Samsung Magic Angle (Except S19E200Ny / S22E200Ny / S24E650Bw)
SAMSUNG MAGIC Angle (Except S19E200NY / SAMSUNG MAGIC Upscale S22E200NY / S24E650BW) Upscale function can enhance the layers of the picture details and the vividness of the picture. SAMSUNG MAGIC The function has more obvious effects on low-resolution pictures. SAMSUNG... -
Page 29: Image Size (Except S19E200Br / S19E450Br / S19E450Mr)
Image Size (Except S19E200BR / S19E450BR / Response Time (S24E650BW) S19E450MR) Accelerate the panel response rate to make video appear more vivid and natural. ― It is best to set Response Time Standard Faster when you are not viewing a movie. Change the picture size. -
Page 30: Configuring Tint
Chapter 05 Configuring Tint A detailed description of each function is provided. Refer to your product for details. Adjust the tint of the screen. This menu is not available when SAMSUNG Bright is in Cinema mode, Dynamic Contrast mode. This menu is not available when... -
Page 31: Color Tone
Color Tone Adjust the general color tone of the picture. ― This menu is not available when SAMSUNG Angle is enabled. MAGIC • Cool 2: Set the color temperature to be cooler than Cool • Cool 1: Set the color temperature to be cooler than Normal mode. -
Page 32: Resizing Or Relocating The Screen
Chapter 06 Resizing or Relocating the Screen A detailed description of each function is provided. Refer to your product for details. ― The functions available may vary depending on the product model. The color and shape of parts may differ Menu H-Position &... -
Page 33: Setup And Reset
Chapter 07 Setup and Reset A detailed description of each function is provided. Refer to your product for details. ― The functions available may vary depending on the product model. The color and shape of parts may differ Smart Eco Saving from what is shown. -
Page 34: Off Timer Plus (Except S19E200Nw / S19E200Ny / S22E200N / S22E200Ny)
Off Timer Plus (Except S19E200NW / PC/AV Mode (Except S19E200NW / S19E200NY / S22E200N / S22E200NY) S19E200NY / S22E200N / S22E200NY) PC/AV Mode to AV. The picture size will be enlarged. Configuring Off Timer This option is useful when you view a movie. Timer: Turn on Off Timer mode. -
Page 35: Information
INFORMATION View the current input source, frequency and resolution. INFORMATION PICTURE LS********/** S / N : *************** COLOR Analog MENU SETTINGS **kHz **Hz ** ****x**** SETUP&RESET Optimal Mode ****x**** **Hz INFORMATION ― The displayed image may differ depending on the model. -
Page 36: Installing The Software
Chapter 08 Installing the Software MultiScreen System Requirements Hardware • Windows™ 2000 • At least 32MB of memory • Windows XP Home Edition • At least 60MB of free space on the hard disk drive • Windows XP Professional MultiScreen enables users to use the monitor by partitioning multiple sections. •... -
Page 37: Troubleshooting Guide
Check the following. Customer Service Center Installation issue (PC mode) ― Before calling Samsung Customer Service Center, test your product as follows. If the problem persists, contact Samsung Customer Service Center. The screen keeps switching on and off. Check the cable connection between the product and PC, and ensure the connectors are locked. - Page 38 Sound issue The screen is not clear. The screen is blurry. Adjust Coarse and Fine. There is no sound. Remove any accessories (video extension cable, etc.) and try again. Check the connection of the audio cable or adjust the volume. Set the resolution and frequency to the recommended level.
-
Page 39: Q & A
Q & A ― Refer to the user manual for your PC or graphics card for further instructions on adjustment. How can I change the frequency? Set the frequency on your graphics card. • Windows XP: Go to Control Panel → Appearance and Themes → Display → Settings → Advanced → Monitor, and adjust Refresh rate under Monitor settings. •... -
Page 40: Specifications
Chapter 10 Specifications General Model Name S19E200NY S19E200NW / S19E200BW / S19E450BW / S19E200BR / S19E450BR / S19E450MR S22E200NY / S22E200B / S22E200N / S19E450MW S22E450B / S22E450M / S22E450D Size 19 CLASS (18.5 inches / 47.0 cm) 19 CLASS (19.0 inches / 48.1 cm) 19 CLASS (19.0 inches / 48.2 cm) 22 CLASS (21.5 inches / 54.6 cm) Display area... - Page 41 ― The above specifications are subject to change without notice to improve quality. ― This device is a Class B digital apparatus. ― For detailed device specifications, visit the Samsung Electronics website. (USA only) Dispose unwanted electronics through an approved recycler.
-
Page 42: Standard Signal Mode Table
Standard Signal Mode Table Model Name Synchronization Resolution Horizontal Frequency Vertical Frequency Optimum Resolution Maximum Resolution S19E200NY 30 – 81 kHz 56 – 75 Hz 1366 x 768 @ 60 Hz 1366 x 768 @ 60 Hz S19E200NW / S19E200BW / S19E450BW / S19E450MW 1440 x 900 @ 60 Hz 1440 x 900 @ 75 Hz S19E200BR / S19E450BR / S19E450MR... - Page 43 S19E200NY Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V) IBM, 720 x 400 31.469 70.087 28.322 MAC, 640 x 480 35.000 66.667 30.240 MAC, 832 x 624 49.726 74.551 57.284 VESA, 640 x 480 31.469 59.940 25.175 VESA, 640 x 480...
- Page 44 S19E200NW / S19E200BW / S19E450BW / S19E450MW Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V) IBM, 720 x 400 31.469 70.087 28.322 MAC, 640 x 480 35.000 66.667 30.240 MAC, 832 x 624 49.726 74.551 57.284 MAC, 1152 x 870 68.681...
- Page 45 S19E200BR / S19E450BR / S19E450MR Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V) IBM, 720 x 400 31.469 70.087 28.322 MAC, 640 x 480 35.000 66.667 30.240 MAC, 832 x 624 49.726 74.551 57.284 MAC, 1152 x 870 68.681 75.062 100.000...
- Page 46 S22E200NY / S22E200N / S22E200B / S23E200B / S24E200BL / S22E450B / S22E450M / S22E450D / S23E450B / S24E450BL / S24E450DL / S24E450B / S24E450M / S24E450D / S27E450B / S27E450D Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V) IBM, 720 x 400 31.469...
- Page 47 S22E200BW / S22E450BW / S22E450MW / S22E450DW Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V) IBM, 720 x 400 31.469 70.087 28.322 MAC, 640 x 480 35.000 66.667 30.240 MAC, 832 x 624 49.726 74.551 57.284 MAC, 1152 x 870 68.681...
- Page 48 S24E650BW Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V) VESA, 640 x 480 31.469 59.940 25.175 VESA, 800 x 600 35.156 56.250 36.000 VESA, 800 x 600 37.879 60.317 40.000 VESA, 1024 x 768 48.363 60.004 65.000 VESA, 1280 x 720...
-
Page 49: Appendix
• Use of supplies or separatly sold product unspecified by Samsung. • Repair from a person besides an engineer of outsourcing service company or partner of Samsung Not a product defect Electronics Co., Ltd. •... -
Page 50: Extended Warranty
Samsung guarantee that replacement parts will be available for 5 years after the end of production. After 5 years, in the event that the Samsung’s service center has run out of replacement parts and cannot repair the product, Samsung will replace your product at no additional charge. If the model you...
