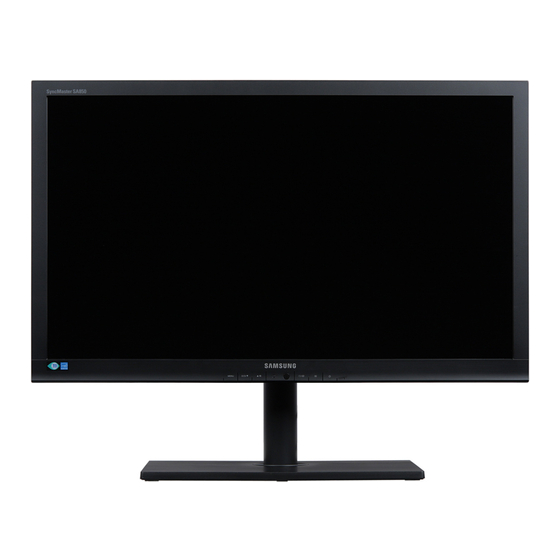

User Manual
SyncMaster
S27A850D
The color and the appearance may differ depending on
the product, and the specifications are subject to
change without prior notice to improve the performance.
BN46-00082A-11
Great user manuals database on
UserManuals.info

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SyncMaster S27A850D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samsung SyncMaster S27A850D

Summary of Contents for Samsung SyncMaster S27A850D

  • Page 1 User Manual SyncMaster S27A850D The color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance. BN46-00082A-11 Great user manuals database on UserManuals.info...
  • Page 2 ⓒ 2011 Samsung Electronics Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. The SAMSUNG and SyncMaster logos are registered trademarks of Samsung Electronics.
  • Page 3 Before Using the Product Icons used in this manual The following images are for reference only. Real-life situations may differ from what is shown in the images. Symbols for safety precautions A serious or fatal injury may result if instructions are not followed. Warning Personal injury or damage to properties may result if instructions are Caution...
  • Page 4 Before Using the Product Cleaning Cleaning Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched. Take the following steps when cleaning. 1. Power off the monitor and computer. 2. Disconnect the power cord from the monitor. Hold the power cable by the plug and do not touch the cable with wet hands.

  • Page 5: Securing The Installation Space

    High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used nearby. Be sure to contact Samsung Customer Service Center (81page) if the inside of the monitor needs cleaning. (service fee will be charged). Before Using the Product Great user manuals database on UserManuals.info...

  • Page 6: Safety Precautions

    Before Using the Product Safety Precautions Electricity and Safety The following images are for reference only. Real-life situations may differ from what is shown in the images. Warning Do not use a damaged power cord or plug, or a loose power socket. An electric shock or fire may result.

  • Page 7: Installation

    The product may become damaged by an electric shock. Do not use the power cord for products other than authorized products supplied by Samsung. An electric shock or fire may result. Keep the power socket where the power cord is connected unobstructed.
  • Page 8 Before Using the Product Do not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.). The product may fall and break or cause a personal injury. Using the product in an area with excess vibration may damage the product or cause a fire.

  • Page 9: Operation

    SAMSUNG time) may seriously affect its performance. Be sure to consult Samsung Customer Service Center (81page) before installation if you want to install the product at such a place. Operation Warning High voltage runs through the product.
  • Page 10 Before Using the Product During a lightning or thunderstorm, power off the product and remove the power cable. An electric shock or fire may result. Do not drop objects on the product or apply impact. An electric shock or fire may result. Do not move the product by pulling the power cord or any cable.
  • Page 11 (paper, match, etc.) into the vent or ports of the product. If water or any foreign substance enters the product, be sure to power off the product, remove the power cord, and contact Samsung Customer Service Center (81page). Product failure, an electric shock or fire may result.
  • Page 12 Before Using the Product Do not let water enter the DC power device or get the device wet. An electric shock or fire may result. Avoid using the product outdoors where it can be exposed to rain or snow. Be careful not to get the DC power adapter wet when you wash the floor. Do not put the DC power adapter near to any heating apparatus.

  • Page 13: Correct Posture To Use The Product

    Before Using the Product Exercise caution when adjusting the product angle or stand height. Otherwise, children's fingers or hands may become stuck and injured. Tilting the product excessively may cause it to fall and result in personal injury. Do not place heavy objects on the product. Product failure or personal injure may result.

  • Page 14: Table Of Contents

    Table Of Contents BEFORE USING THE Copyright PRODUCT Icons used in this manual Symbols for safety precautions Cleaning Cleaning Securing the Installation Space Precautions for storage Safety Precautions Electricity and Safety Installation Operation Correct posture to use the product PREPARATIONS Checking the Contents Removing the Packaging Checking the Components...
  • Page 15 Connecting the Product to a PC as a USB HUB Connecting a PC to the Product Utilizing the Product as a USB HUB Connecting the Power SCREEN SETUP MAGIC SAMSUNG MAGIC Bright SAMSUNG MAGIC Color Brightness Configuring Brightness Contrast Configuring Contrast Sharpness...
  • Page 16 Table Of Contents Gamma Configuring Gamma RESIZING OR RELOCATING THE Mode Contrast SCREEN Image Size Changing the Picture Size H-Position & V-Position Configuring H-Position or V-Position SETUP AND RESET Eco Motion Sensor Eco Light Sensor Eco Saving Eco Icon Display Menu Transparency Changing Menu Transparency Language...
  • Page 17 Initializing Settings (Reset) INFORMATION MENU AND INFORMATION OTHERS Displaying INFORMATION Configuring Brightness in the Startup Screen TROUBLESHOOTING Requirements Before Contacting Samsung Customer Service Center GUIDE Testing the Product Checking the Resolution and Frequency Check the followings. Q & A SPECIFICATIONS General PowerSaver...

  • Page 18: Preparations

    Preparations Checking the Contents 1.1.1 Removing the Packaging Open the packaging box. Be careful not to damage the product when you open the packaging with a sharp instrument. Remove the Styrofoam from the product. Check the components and remove the Styrofoam and plastic bag. The appearance of actual components may differ from the image shown.

  • Page 19: Checking The Components

    Preparations 1.1.2 Checking the Components Contact the dealer from whom you purchased the product if any item is missing. The appearance of the components and items sold separately may differ from the image shown. Components Quick Setup Guide Warranty Card User Manual (Not available in all locations) Power cable...

  • Page 20: Parts

    Preparations Parts 1.2.1 Frontal Buttons The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Icons Description Open or close the onscreen display (OSD) menu, or return to the last menu.
  • Page 21 Preparations Icons Description Configure Customized Key and press [ ]. The following options will be enabled. MAGIC Image Size To configure Customized Key, go to SETUP&RESET Customized Key and select the mode you want. Adjust the screen brightness. Volume can be adjusted if a cable is connected to the [DP IN] or [AUDIO IN] port.

  • Page 22: Reverse Side

    Preparations 1.2.2 Reverse Side The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Port Description Connects to the DC power adapter. Connects to a PC via a DVI cable. Connects to a PC via a DP cable.

  • Page 23: Installation

    Preparations Installation 1.3.1 Attaching the Stand Place a protective cloth or Insert the stand base into the Do not remove the fixing pin until cushion on a flat surface. Next, stand in the direction of the you are finished attaching the place the product with the face arrow.

  • Page 24: Adjusting The Product Tilt And Height

    Preparations 1.3.2 Adjusting the Product Tilt and Height The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. To adjust the height, remove the fixing pin. The monitor tilt and height can be adjusted. Hold the top center of the product and adjust the height carefully.

  • Page 25: Installing A Wall-Mount Kit Or Desktop Stand

    Preparations 1.3.4 Installing a Wall-mount Kit or Desktop Stand Before Installation Power the product off and remove the power cable from the power socket. Place a protective cloth or Unfasten the screw from the Lift and detach the stand. cushion on a flat surface. Next, back of the product.

  • Page 26: Anti-Theft Lock

    Samsung shall not be held liable for any product damage or personal injury caused by using a wall- mount kit other than the one specified or from an attempt to install the wall-mount kit on your own.

  • Page 27: Magicrotation Auto

    Preparations "MagicRotation Auto" The "MagicRotation Auto" function detects the rotation of monitors that are fitted with a rotation sensor and rotates the Windows screen accordingly. [Software Installation] Insert the user manual CD provided with the product into the CD-ROM drive. Follow the instructions given on the screen to proceed with installation.

  • Page 28: Connecting And Usinga Source Device

    Connecting and Using a Source Device Before Connecting 2.1.1 Pre-connection Checkpoints Before connecting a source device, read the user manual provided with it. The number and locations of ports on source devices may differ from device to device. Do not connect the power cable until all connections are completed. Connecting the power cable during connection may damage the product.

  • Page 29: Connecting And Using A Pc

    Connecting and Using a Source Device Connecting and Using a PC 2.2.1 Connecting to a PC Select a connection method suitable for your PC. Connecting parts may differ in different products. Connection using a Dual-link DVI cable (digital type) DVI IN Connect the DVI cable to the [DVI IN] port on the back of the product and the DVI port on the PC.

  • Page 30: Driver Installation

    An installation driver is contained on the CD supplied with the product. If the file provided is faulty, visit the Samsung homepage (http://www.samsung.com) and download the file. Insert the user manual CD provided with the product into the CD-ROM drive.

  • Page 31: Setting Optimum Resolution

    Connecting and Using a Source Device 2.2.3 Setting Optimum Resolution An information message about setting optimum resolution will appear if you power on the product for the first time after purchase. Select a language and change the resolution to the optimum value. The optimal resolution for this monitor is as follows: 2560 x 1440 60Hz Follow the above settings to set the resolution.

  • Page 32: Changing The Resolution Using A Pc

    Connecting and Using a Source Device 2.2.4 Changing the Resolution Using a PC Adjust the resolution and refresh rate in Control Panel on your PC to obtain optimum picture quality. The picture quality of TFT-LCDs may degrade if the optimum resolution is not selected. Changing the Resolution on Windows XP Go to Control Panel Display...
  • Page 33 Connecting and Using a Source Device Changing the Resolution on Windows Vista Go to Control Panel Personalization Display Settings and change the resolution. 2 Connecting and Using a Source Device Great user manuals database on UserManuals.info...
  • Page 34 Connecting and Using a Source Device Changing the Resolution on Windows 7 Go to Control Panel Display Screen Resolution and change the resolution. 2 Connecting and Using a Source Device Great user manuals database on UserManuals.info...

  • Page 35: Connecting Headphones

    Connecting and Using a Source Device Connecting Headphones AUDIO IN Connect the stereo cable to the [AUDIO IN] port on the back of the product and the AUDIO OUT port on the PC. If the stereo cable is connected, the Volume can be adjusted using the [ ] buttons on the front...

  • Page 36: Connecting The Product To A Pc As A Usb Hub

    Connecting and Using a Source Device Connecting the Product to a PC as a USB HUB 2.4.1 Connecting a PC to the Product The product can function as a HUB by connecting to a PC via a USB cable. You can connect a source device directly to the product and control the device from the product, without having to connect the device to the PC.

  • Page 37: Connecting The Power

    Connecting and Using a Source Device Connecting the Power Put the DC power adapter in the groove, with the switch facing upward. - Push the adapter until you hear a “click.” Connect the power cable to the DC power adapter. Next, connect the DC power adapter to the product.

  • Page 38: Screen Setup

    Configure the screen settings such as brightness and color tone. MAGIC This feature optimizes the brightness and colors according to how the product will be used. 3.1.1 SAMSUNG MAGIC Bright This menu provides an optimum picture quality suitable for the environment where the product will be used.

  • Page 39: Samsung Magic Color

    Screen Setup 3.1.2 SAMSUNG MAGIC Color SAMSUNG Color is a new picture-quality improvement technology developed independently by Samsung, MAGIC which delivers vivid natural colors without picture quality degradation. SAMSUNG This menu is not available when Bright is in Cinema Dynamic Contrast mode.

  • Page 40: Brightness

    Screen Setup Brightness Adjust the general brightness of the picture. (Range: 0~100) A higher value will make the picture appear brighter. SAMSUNG This menu is not available when Bright is set to Dynamic Contrast mode. MAGIC This menu is not available when...

  • Page 41: Contrast

    Screen Setup Contrast Adjust the contrast between the objects and background. (Range: 0~100) A higher value will increase the contrast to make the object appear clearer. SAMSUNG This menu is not available when Bright is in Cinema Dynamic Contrast mode.

  • Page 42: Sharpness

    Screen Setup Sharpness Make the outline of objects more clear or blurry. (Range: 0~100) A higher value will make the outline of objects clearer. SAMSUNG This menu is not available when Bright is in Cinema Dynamic Contrast mode. MAGIC SAMSUNG...

  • Page 43: Response Time

    Screen Setup Response Time Accelerate the panel response rate to make video appear more vivid and natural. It is best to set Response Time Normal Faster when you are not viewing a movie. The functions available on the monitor may vary depending on the model. Refer to the actual product.

  • Page 44: Configuring Tint

    Configuring Tint SAMSUNG Adjust the tint of the screen. This menu is not available when Bright is set to Cinema MAGIC Dynamic Contrast mode. Adjust the value of the color red in the picture. (Range: 0~100) A higher value will increase the intensity of the color.

  • Page 45: Green

    Configuring Tint Green Adjust the value of the color green in the picture. (Range: 0~100) A higher value will increase the intensity of the color. SAMSUNG This menu is not available when Color is in Full Intelligent mode. MAGIC This menu is not available when is set to On.

  • Page 46: Blue

    Configuring Tint Blue Adjust the value of the color blue in the picture. (Range: 0~100) A higher value will increase the intensity of the color. SAMSUNG This menu is not available when Color is in Full Intelligent mode. MAGIC This menu is not available when is set to On.

  • Page 47: Color Tone

    Configuring Tint Color Tone Adjust the general color tone of the picture. SAMSUNG This menu is not available when Color is in Full Intelligent mode. MAGIC This menu is not available when is set to On. 4.4.1 Configuring the Color Tone Settings Press [ ] on the product.

  • Page 48: Gamma

    Configuring Tint Gamma Adjust the mid-range brightness (Gamma) of the picture. This menu is not available when is set to On. 4.5.1 Configuring Gamma Press [ ] on the product. Press [ ] to move to COLOR and press [ ] on the product.

  • Page 49: Resizing Or Relocating The Screen

    Resizing or Relocating the Screen The PBP (Picture by Picture) function separates the screen in half displaying output from two different source devices simultaneously on the left and right sides of the screen. Compatible with Windows 7 only. 5.1.1 Mode Press [ ] on the product.
  • Page 50 Resizing or Relocating the Screen The PBP function may not be available depending on the specifications of the graphics card used. If the screen is blank in PBP mode when the optimum resolution (1280 x 1440) is selected, go to Control Panel Display Screen Resolution and click Detect on the PC.

  • Page 51: Image Size

    Resizing or Relocating the Screen Image Size Change the picture size. This menu is not available when is set to On. 5.2.1 Changing the Picture Size Press [ ] on the product. Press [ ] to move to SIZE&POSITION and press [ ] on the product.

  • Page 52: Configuring H-Position Or V-Position

    Resizing or Relocating the Screen H-Position & V-Position H-Position: Move the screen to the left or right. V-Position: Move the screen up or down. This menu is only available when Image Size is set to Screen Fit. This menu is not available when is set to On.

  • Page 53: Setup And Reset

    Setup and Reset Eco Motion Sensor, Eco Light Sensor, and Eco Saving options are displayed on the same menu page so that you can conveniently configure the power saving settings. 6.1.1 Eco Motion Sensor Eco Motion Sensor activates to save power when it does not detect any movement within a specified area for a specified period of time.
  • Page 54 Setup and Reset The selected option will be applied. Configuring Backlight Press [ ] on the product. Press [ ] to move to SETUP&RESET and press [ ] on the product. Press [ ] to move to and press [ ] on the product.

  • Page 55: Eco Light Sensor

    6.1.2 Eco Light Sensor Eco Light Sensor feature optimizes the view condition and contributes to power saving by adjusting the screen brightness depending on the ambient light intensity. SAMSUNG This menu is not available when Bright is set to Dynamic Contrast mode.
  • Page 56 Setup and Reset Configuring Sensitivity Press [ ] on the product. Press [ ] to move to SETUP&RESET and press [ ] on the product. Press [ ] to move to and press [ ] on the product. Press [ ] to move to Sensitivity and press [...
  • Page 57 Setup and Reset Configuring Brightness Level Press [ ] on the product. Press [ ] to move to SETUP&RESET and press [ ] on the product. Press [ ] to move to and press [ ] on the product. Press [ ] to move to Brightness Level and press [...

  • Page 58: Eco Saving

    Setup and Reset 6.1.3 Eco Saving Eco Saving function reduces power consumption by controlling the electric current used by the monitor panel. SAMSUNG This menu is not available when Bright is set to Dynamic Contrast mode. MAGIC This menu is not available when Eco Light Sensor is set.

  • Page 59: Eco Icon Display

    Setup and Reset 6.1.4 Eco Icon Display Configuring Eco Icon Display Press [ ] on the product. Press [ ] to move to SETUP&RESET and press [ ] on the product. Press [ ] to move to and press [ ] on the product.
  • Page 60 Setup and Reset bar level will decrease with a moon image displayed. The brightness slide bar will be displayed for 3 seconds after the sensor activates. You've saved * tree(s). A pop-up as shown above will appear when an energy tree completes while Eco Icon Display is On.

  • Page 61: Menu Transparency

    Setup and Reset Menu Transparency Set the transparency for the menu windows: 6.2.1 Changing Menu Transparency Press [ ] on the product. Press [ ] to move to SETUP&RESET and press [ ] on the product. Press [ ] to move to Menu Transparency and press [ ] on the product.

  • Page 62: Language

    Setup and Reset Language Set the menu language. A change to the language setting will only be applied to the onscreen menu display. It will not be applied to other functions on your PC. 6.3.1 Changing the Language Press [ ] on the product.

  • Page 63: Pc/Av Mode

    Setup and Reset PC/AV Mode PC/AV Mode to AV. The picture size will be enlarged. This option is useful when you view a movie. This menu is not available when is set to On. 6.4.1 Configuring PC/AV Mode Press [ ] on the product.

  • Page 64: Auto Source

    Setup and Reset Auto Source Activate Auto Source. This menu is not available when is set to On. 6.5.1 Configuring Auto Source Press [ ] on the product. Press [ ] to move to SETUP&RESET and press [ ] on the product. Press [ ] to move to Auto Source...

  • Page 65: Display Time

    Setup and Reset Display Time Set the on-screen display (OSD) menu to automatically disappear if the menu is not used for a specified period of time. Display Time can be used to specify the time after which you want the OSD menu to disappear. 6.6.1 Configuring Display Time Press [ ] on the product.

  • Page 66: Key Repeat Time

    Setup and Reset Key Repeat Time Control the response rate of a button when the button is pressed. 6.7.1 Configuring Key Repeat Time Press [ ] on the product. Press [ ] to move to SETUP&RESET and press [ ] on the product. Press [ ] to move to Key Repeat Time...

  • Page 67: Customized Key

    Setup and Reset Customized Key You can set Customized Key to the mode you want as follows. This menu is not available when is set to On. 6.8.1 Configuring Customized Key Press [ ] on the product. Press [ ] to move to SETUP&RESET and press [ ] on the product.

  • Page 68: Off Timer On/Off

    Setup and Reset Off Timer On/Off Enable or disable the off timer that automatically powers off the product. 6.9.1 Configuring Off Timer On/Off Press [ ] on the product. Press [ ] to move to SETUP&RESET and press [ ] on the product. Press [ ] to move to Off Timer On/Off...

  • Page 69: Off Timer Setting

    Setup and Reset 6.10 Off Timer Setting The off timer can be set within a range of 1 to 23 hours. The product will automatically power off after the specified number of hours. This menu is only available when Off Timer On/Off is set to On.

  • Page 70: Reset

    Setup and Reset 6.11 Reset Return all the settings for the product to the default factory settings. This menu is not available when is set to On. 6.11.1 Initializing Settings (Reset) Press [ ] on the product. Press [ ] to move to SETUP&RESET and press [ ] on the product.

  • Page 71: Information Menu And

    INFORMATION Menu and Others INFORMATION View the current input source, frequency and resolution. 7.1.1 Displaying INFORMATION Press [ ] on the product. Press [ ] to move to INFORMATION. The current input source, frequency and resolution will appear. PICTURE COLOR SIZE&POSITION SETUP&RESET INFORMATION...

  • Page 72: Troubleshooting Guide

    Requirements Before Contacting Samsung Customer Service Center 8.1.1 Testing the Product Before calling Samsung Customer Service Center, test your product as follows. If the problem persists, contact Samsung Customer Service Center. Check if your product is operating normally by using the product test function.
  • Page 73 Troubleshooting Guide Screen issue Not Optimum Mode is displayed. This message appears if the signal from the graphics card exceeds the maximum resolution or frequency for the product. Change the maximum resolution and frequency to suit the product performance, referring to Standard Signal Mode Table (79page).
  • Page 74 Troubleshooting Guide Source device issue A beeping sound is heard when my PC is booting. If a beeping sound is heard when your PC is booting, have your PC serviced. 8 Troubleshooting Guide Great user manuals database on UserManuals.info...
  • Page 75 Troubleshooting Guide Q & A Question Answer How can I change the Set the frequency on your graphics card. frequency? Windows XP: Select Control Panel Appearance and Themes Display Settings Advanced Monitor, and adjust Refresh rate under Monitor settings. Windows ME/2000: Select Control Panel Display Settings Advanced...
  • Page 76 Troubleshooting Guide Question Answer How can I change the Windows XP: Go to Control Panel Appearance and Themes resolution? Display Settings and adjust the resolution. Windows ME/2000: Go to Control Panel Display Settings and adjust the resolution. Windows Vista: Go to Control Panel Appearance and Personalization Personalize...

  • Page 77: Specifications

    Specifications General Model Name S27A850D Panel Size 27 inches (68 cm) Display area 596.74mm(H) x 335.66mm(V) Synchronization Horizontal 31~90 kHz Frequency Vertical 56~76 Hz Frequency Display Color 16.7 M (True 8 bit) Resolution Optimum 2560 x 1440 @ 60 Hz resolution Maximum 2560 x 1440 @ 60 Hz...

  • Page 78: Powersaver

    Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect or call, (877) 278 - 0799 PowerSaver The power-saving function of this product reduces power consumption by switching off the screen and changing the color of the power LED if the product is not used for a specified period of time.

  • Page 79: Standard Signal Mode Table

    Specifications Standard Signal Mode Table This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Therefore, a resolution other than the specified resolution may degrade the picture quality.
  • Page 80 Specifications Horizontal Vertical Pixel Clock Sync Polarity Resolution Frequency Frequency (MHz) (H/V) (kHz) (Hz) VESA,1600 x 1200 75.000 60.000 162.000 VESA,1680 x 1050 65.290 59.954 146.250 VESA,1920 x 1200 74.556 59.885 193.250 VESA, 2560 x 1440(RB) 88.787 59.951 241.500 Horizontal Frequency The time required to scan a single line from the left to the right side of the screen is called a horizontal cycle.

  • Page 81: Appendix

    Appendix Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. NORTH AMERICA U.S.A 1-800-SAMSUNG (726-7864) http://www.samsung.com CANADA 1-800-SAMSUNG (726-7864) http://www.samsung.com/ca http://www.samsung.com/ch_fr (French) MEXICO 01-800-SAMSUNG (726-7864) http://www.samsung.com LATIN AMERICA...
  • Page 82 07001 33 11 http://www.samsung.com CROATIA 062 SAMSUNG (062 726 7864) http://www.samsung.com CZECH 800 - SAMSUNG (800-726786) http://www.samsung.com Samsung Zrt., česká organizační složka, Oasis Florenc, Sokolovská394/17, 180 00, Praha 8 DENMARK 70 70 19 70 http://www.samsung.com FINLAND 030 - 6227 515 http://www.samsung.com...
  • Page 83 Appendix EUROPE PORTUGAL 808 20 - SAMSUNG (808 20 http://www.samsung.com 7267) RUMANIA From landline : 08010-SAMSUNG http://www.samsung.com (7267864) From landline & mobile : (+40) 21 206 01 10 SERBIA 0700 Samsung (0700 726 7864) http://www.samsung.com SLOVAKIA 0800 - SAMSUNG http://www.samsung.com...
  • Page 84 BELARUS 810-800-500-55-500 http://www.samsung.com MOLDOVA 00-800-500-55-500 http://www.samsung.com ASIA PACIFIC AUSTRALIA 1300 362 603 http://www.samsung.com NEW ZEALAND 0800 SAMSUNG (0800 726 786) http://www.samsung.com CHINA 400-810-5858 http://www.samsung.com HONG KONG (852) 3698 - 4698 http://www.samsung.com/hk http://www.samsung.com/ hk_en/ INDIA 1800 1100 11 http://www.samsung.com...
  • Page 85 Appendix MIDDlE EAST IRAN 021-8255 http://www.samsung.com OMAN 800-SAMSUNG (726-7864) http://www.samsung.com KUWAIT 183-2255 http://www.samsung.com BAHRAIN 8000-4726 http://www.samsung.com EGYPT 08000-726786 http://www.samsung.com JORDAN 800-22273 http://www.samsung.com MOROCCO 080 100 2255 http://www.samsung.com SAUDI ARABIA 9200-21230 http://www.samsung.com U.A.E 800-SAMSUNG (726-7864) http://www.samsung.com AFRICA CAMEROON 7095- 0077 http://www.samsung.com...

  • Page 86: Correct Disposal Of This Product

    Appendix Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.

  • Page 87: Terminology

    Appendix Terminology OSD(On Screen Display) On screen display (OSD) allows you to configure on-screen settings to optimize the picture quality as required. It allows you to change the screen brightness, tint, size and many other settings using menus displayed on the screen. HUB refers to a device that is a common connection point for multiple devices connected over a network.
  • Page 88 Appendix Vertical Frequency One image is made of numerous horizontal lines. The vertical frequency is measured in Hz and represents how many images can be created per second by those horizontal lines. A vertical frequency of 60 means that an image is transmitted 60 times per second. The vertical frequency is also called "refresh rate"...

  • Page 89: Index

    Correct Disposal of This Product Correct posture to use the product Parts Customized Key PC/AV Mode PowerSaver Display Time Q & A Gamma Requirements Before Contacting Samsung Customer Service Center General Reset Green Response Time Image Size Index Great user manuals database on...
  • Page 90 Index Safety Precautions Sharpness Standard Signal Mode Table Terminology Utilizing the Product as a USB HUB Index...
