INSTALLATION, COMMISSIONING AND SERVICING INSTRUCTIONS

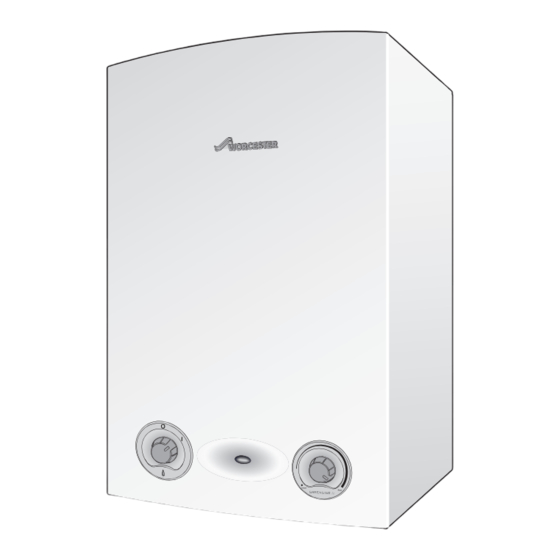

WALL HUNG RSF GAS FIRED CONDENSING BOILER
Greenstar Ri
FOR OPEN VENTED & SEALED CENTRAL HEATING SYSTEMS & INDIRECT MAINS FED DOMESTIC HOT WATER
ErP
These appliances are for use with:
Natural Gas or L.P.G.
(Cat. II 2H 3P type C13, C33 & C53)
Model
Natural Gas
12Ri
ErP
15Ri
ErP
18Ri
ErP
24Ri
ErP
LPG
12Ri
ErP
15Ri
ErP
18Ri
ErP
24Ri
ErP
If you smell gas:
▶ Well away from the building: call the National Gas Emergency
Service on 0800 111 999.
▶ L.P.G. boilers: Call the supplier's number on the side of the gas tank.
GC Number
41-406-41
41-406-43
41-406-45
41-406-47
41-406-42
41-406-44
41-406-46
41-406-48
