Garland M1G2ACE Installation Manual

M1gxxce filtering backplane chassis
Hide thumbs

Advertisement

Quick Links

Download this manual
Available in 1U (4 Slots) and 2U (12 Slots)
AC or DC Power with Filtering Backplane
The M1GXXCE Filtering Backplane Chassis can receive up to 4 or 12 1Gbps Modules
depending on whether the chassis is a 1U chassis or a 2U chassis. Both chassis are equipped
with dual internal power supplies for either AC or DC power sources.
The backplane feature can be used with all the Garland Technology 1Gbps Modular TAPs. If
you have Garland Technology Modules purchased before this Aggregating Backplane Chassis
was released (April, 2015) and you want to be able to take advantage of the aggregating
backplane you will need to update the firmware of the modules. Otherwise, the modules will
operate as they normally would in the new chassis. There is a RJ-45 Management port that
allows access to the Command Line Interface (CLI) and a Ethernet RJ-45 Management port so
the Chassis can be connected to the network.
Slot 1
Slot 1
Slot 1
AC
AC
Slot 1
Slot 1
Slot 1
Slot 1
Slot 1
Slot 1
Slot 1
Page 1
Page 1
Garland Technology
Modular Chassis
Slot 2
Slot 2
Slot 2
Rear View
Rear View
Slot 2
Slot 2
Slot 2
Slot 2
Slot 2
Slot 2
Slot 2

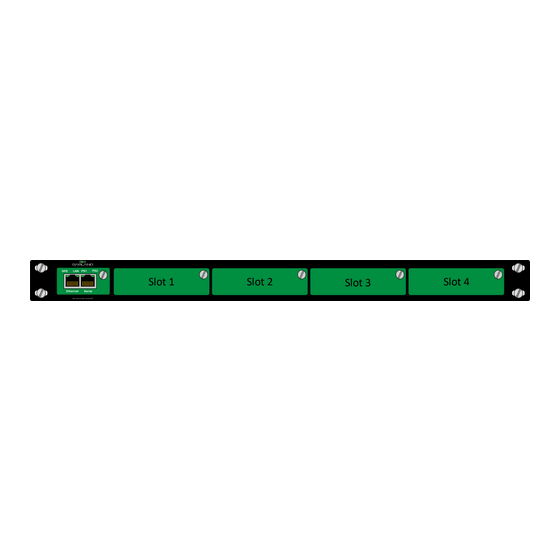

Figure 1: M1GXXCE Row & Slot Layout
M1G1ACE/M1G1DCE
M1G1ACE/M1G1DCE
M1G2ACE/M1G2DCE
M1G2ACE/M1G2DCE
Slot 4
Slot 4
Slot 4
Slot 3
Slot 3
Slot 3
Slot 4
Slot 4
Slot 4
Slot 3
Slot 3
Slot 3
Slot 3
Slot 4
Slot 4
Slot 3
Slot 4
Row 1
DC
DC
Row 1
Row 2
Row 3
V V e e r r 1 1 .6

Advertisement

loading
Need help?

Need help?

Do you have a question about the M1G2ACE and is the answer not in the manual?

Questions and answers

Related Manuals for Garland M1G2ACE

Summary of Contents for Garland M1G2ACE

  • Page 1 1U chassis or a 2U chassis. Both chassis are equipped with dual internal power supplies for either AC or DC power sources. The backplane feature can be used with all the Garland Technology 1Gbps Modular TAPs. If you have Garland Technology Modules purchased before this Aggregating Backplane Chassis was released (April, 2015) and you want to be able to take advantage of the aggregating backplane you will need to update the firmware of the modules.
  • Page 2 M1G2XCE will require 2U of rack space. You will need 2 AC or DC connections to apply power to the two internal power supplies. Now insert your Garland Technology Modular TAPs by carefully sliding into the available slots in the chassis.

  • Page 3: Flow Control

    M1G1ACE/M1G1DCE M1G1ACE/M1G1DCE M1G2ACE/M1G2DCE M1G2ACE/M1G2DCE Accessing the Garland Technology Modular Chassis with Filtering Backplane: Connect to the RJ-45 Management port using the supplied cable. You will need a serial terminal emulator like PuTTY using the settings listed below: User Name: admin...
  • Page 4 M1G1ACE/M1G1DCE M1G1ACE/M1G1DCE M1G2ACE/M1G2DCE M1G2ACE/M1G2DCE Setting up Network Configuration Garland Technology M1G1ACE (Code Version 1.0.21) Network Configuration Warning: This session depends on the current network config. Applying network config may drop this session. link: up current ip add:10.10.10.200 current config:static add: 10.10.10.200 mask:255.255.255.0 gwy:10.10.10.1 new config:static add: 10.10.10.200 mask:255.255.255.0 gwy:10.10.10.1...
  • Page 5 M1G1ACE/M1G1DCE M1G2ACE/M1G2DCE M1G2ACE/M1G2DCE Pressing will bring you back to the Main Menu Next, we will go to the Upgrade Menu by pressing Garland Technology M1G1ACE (Code Version: 1.0.21) Main Menu Select: 1. Change/View Module Configuration 2. Filtering 3. Change Username/Password 4.
  • Page 6 M1G1ACE/M1G1DCE M1G1ACE/M1G1DCE M1G2ACE/M1G2DCE M1G2ACE/M1G2DCE Selecting on the Main Menu will bring up the Select Slot Number Screen. Select slot number to view/modify Chassis Serial Number: 21870000107 Controller Serial Number: 21910000112 Power Supply 1: Down Power Supply 2: Up #: Module Type...

  • Page 7: Selecting Slot

    M1G1ACE/M1G1DCE M1G1ACE/M1G1DCE M1G2ACE/M1G2DCE M1G2ACE/M1G2DCE Selecting Slot brings up the Slot 2 Status Screen ========================= Slot 2 Status: ========================= Port A Port B Port C Port D Link State: Down Down Down Down Speed: Duplex: Media Type: RJ45 RJ45 RJ45 RJ45 Serial Number: 00000 Software Version: Boot:1.2.2 App:1.2.45...
  • Page 8 M1G1ACE/M1G1DCE M1G1ACE/M1G1DCE M1G2ACE/M1G2DCE M1G2ACE/M1G2DCE Pressing when on the Slot 1 Status Screen of a Copper TAP Module, will bring up this screen. ========================= Slot 1 Speed Mode Configuration ========================= Current Speed: 1G New Speed: 1G 1. 1G 2. 100M 0. Return and Apply...
  • Page 9 M1G1ACE/M1G1DCE M1G1ACE/M1G1DCE M1G2ACE/M1G2DCE M1G2ACE/M1G2DCE Pressing when on the Slot 1 Status Screen of a Copper TAP Module, will bring up the Duplex Configuration Screen. ========================= Slot 1 Duplex Configuration ========================= Current Mode: Link: Port A Port B Port C Port D...
  • Page 10 Pressing on a 1U chassis would take you directly to the Filter Row menu. The Select Row Screen Garland Technology M1G1ACE (code Version: 1.0.21) Select Row M1GCCBP M1GCCF...

  • Page 11: Layer 2 Filtering

    Naming the Filter The Filter has a name The Select Ingress Ports Menu Edit Filter: Edit Filter: Edit Filter: Garland Technology M1G1ACE (Code Version: 1.0.21) All Values in Decimal. All Values in Decimal. 1. Name 1. Name : Filter : Filter 1.
  • Page 12 M1G1ACE/M1G1DCE M1G2ACE/M1G2DCE M1G2ACE/M1G2DCE Return to the Row 1 Filters Screen The Filter is now being saved Garland Technology M1G1ACE (Code Version:1.0.21) Garland Technology M1G1ACE (Code Version:1.0.21) Row 1 Filters ***FILTER CONFIGURATION NOT SAVED OR APPLIED*** Row 1 Filters ***FILTER CONFIGURATION NOT SAVED OR APPLIED***...
  • Page 13 MAC address Press enter to accept the MAC address. We now have a valid Destination MAC address Back to the Row 1 Filters Screen Edit Filter: Garland Technology M1G1ACE (Code Version:1.0.21) 1. Name : case 432A dmac 2. Ports : [unav| i Row 1 Filters ***FILTER CONFIGURATION NOT SAVED OR APPLIED*** 3.
  • Page 14 M1G1ACE/M1G1DCE M1G1ACE/M1G1DCE M1G2ACE/M1G2DCE M1G2ACE/M1G2DCE The Filter is saved Adding a new filter named abc Adding a new filter named abc Garland Technology M1G1ACE (Code Version:1.0.21) Edit Filter: Edit Filter: 1. Name 1. Name : FILTER : FILTER 2. Ports 2. Ports Row 1 Filters 3.
  • Page 15 M1G2ACE/M1G2DCE Case 432A filter is now in first position Move the Selection Cursor Garland Technology M1G1ACE (Code Version:1.0.21) Garland Technology M1G1ACE (Code Version:1.0.21) Row 1 Filters ***FILTER CONFIGURATION NOT SAVED OR APPLIED*** Row 1 Filters ***FILTER CONFIGURATION NOT SAVED OR APPLIED***...
  • Page 16 SOURCE IP mask 255.255.255.255 and provides the opportunity to edit it if necessary. Press <enter> The Source IP address is created Back to Row 1 Filters screen Edit Filter: Garland Technology M1G1ACE (Code Version:1.0.21) 1. Name : src IP fltA 2. Ports : [Unav|i...
  • Page 17 M1G1ACE/M1G1DCE M1G1ACE/M1G1DCE M1G2ACE/M1G2DCE M1G2ACE/M1G2DCE DSCP filter Using the menu system as previously described, we created a filter named 'DSCP=21', 4A->4C. Now, to add a filter for all packets with DSCP=21. Setting up DSCP filter cont Start setting up DSCP filter...

  • Page 18: Icmp Filter

    M1G1ACE/M1G1DCE M1G1ACE/M1G1DCE M1G2ACE/M1G2DCE M1G2ACE/M1G2DCE Back at the Row 1 filters screen Garland Technology M1G1ACE (Code Version:1.0.21) Row 1 Filters ***FILTER CONFIGURATION NOT SAVED OR APPLIED*** Name Ports Count src IP fltA [Unav|i Case 432A [unav| i Case 432A dmac [unav| i [unav|i ->...
  • Page 19 M1G2ACE/M1G2DCE M1G2ACE/M1G2DCE Row 1 Filter now has six filters complete The ICMP filter is complete Edit Filter: Garland Technology M1G1ACE (Code Version:1.0.21) 1. Name : ICMP 2. Ports : [unav| i Row 1 Filters ***FILTER CONFIGURATION NOT SAVED OR APPLIED*** 3.
  • Page 20 We are finished setting up the email Destination port. Enter the DESTINATION port <enter> send filter. Press to return to the Row 1 Filters screen Back at the Row 1 filters screen Garland Technology M1G1ACE (Code Version:1.0.21) Row 1 Filters Name Ports Count src IP fltA...
  • Page 21 M1G1ACE/M1G1DCE M1G1ACE/M1G1DCE M1G2ACE/M1G2DCE M1G2ACE/M1G2DCE 1U – 1G Modular Chassis holds up to 4 TAPs with dual internal PSU M1G1ACE/M1G1DCE Rack Mount Space: Size dimensions (W x H x D): 17.44 x 1.72 x 13.32 inches Weight: 6.8 lbs Ambient Temperature: 0°C to+40°C/+32°F to+104°F...
  • Page 22 Description M1G1ACE 1U modular chassis with dual internal AC power supplies, supports up to four TAP modules. Backplane feature can be used with all of Garland Technology s 1Gbps modular TAPs that end with a letter F M1G1DCE 1U modular chassis with dual internal DC power supplies, supports up to four TAP modules.
  • Page 23 Garland Technology assumes no responsibi lity for any errors or omissi ons in t hi s document and shall have no obl igation to you as a result of having made t hi s document available to you or based...
