Garland INT10G10SP1 User Manual

This document describes the front panel, LED indications, interfaces, rear panel, rear switch and
Installation Procedure for the INT10G10SP1. The unit supports two span applications in one chassis.
The span port assignments are as follows:
Port 1
Port 3
Port 5
Port 7
Port 9
Port 2
Port 4
Port 6
Port 8
Port 10

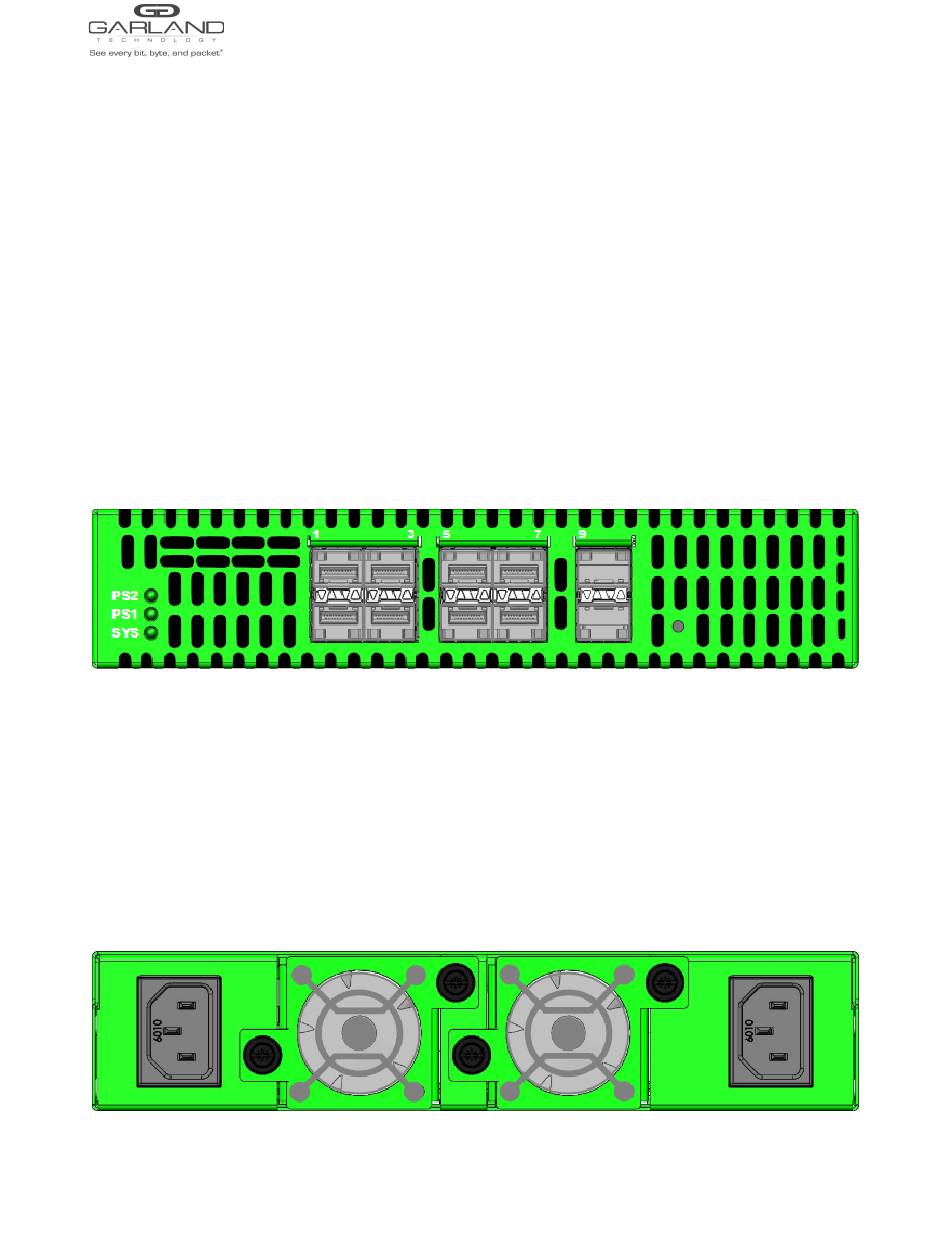

Front Panel

LED Indications

PS2
PS1
SYS
Port 1 – 9 Left Up Arrow
Port 1 – 9 Right Up Arrow
Port 2 – 10 Left Down Arrow
Port 2 – 10 Right Down Arrow

Rear Panel

PS 1
Fan 2
Garland Technology | 716.242.8500 | garlandtechnology.com/support
Copyright © 2021 Garland Technology, LLC. All rights reserved.
RegenTAP: Dual Breakout | INT10G10SP1 | 1.12.4
Input to span output ports 3, 5, 7, 9.
Span output from port 1.
Span output from port 1.
Span output from port 1.
Span output from port 1.
Input to span output ports 4, 6, 8, 10.
Span output from port 2.
Span output from port 2.
Span output from port 2.
Span output from port 2.
Power Supply 2 LED Green indicates normal
Power Supply 1 LED Green indicates normal
System LED
Green indicates link
Flashing Green indicates TX/RX activity
Green indicates link
Flashing Green indicates TX/RX activity
Fan 1
PS 2
User Guide
Off indicates power not applied
Off indicates power not applied
Green indicates normal
