JXHDARMT - Rack Mount for the JENSEN JXHD35 Speaker and JAN139 Antenna

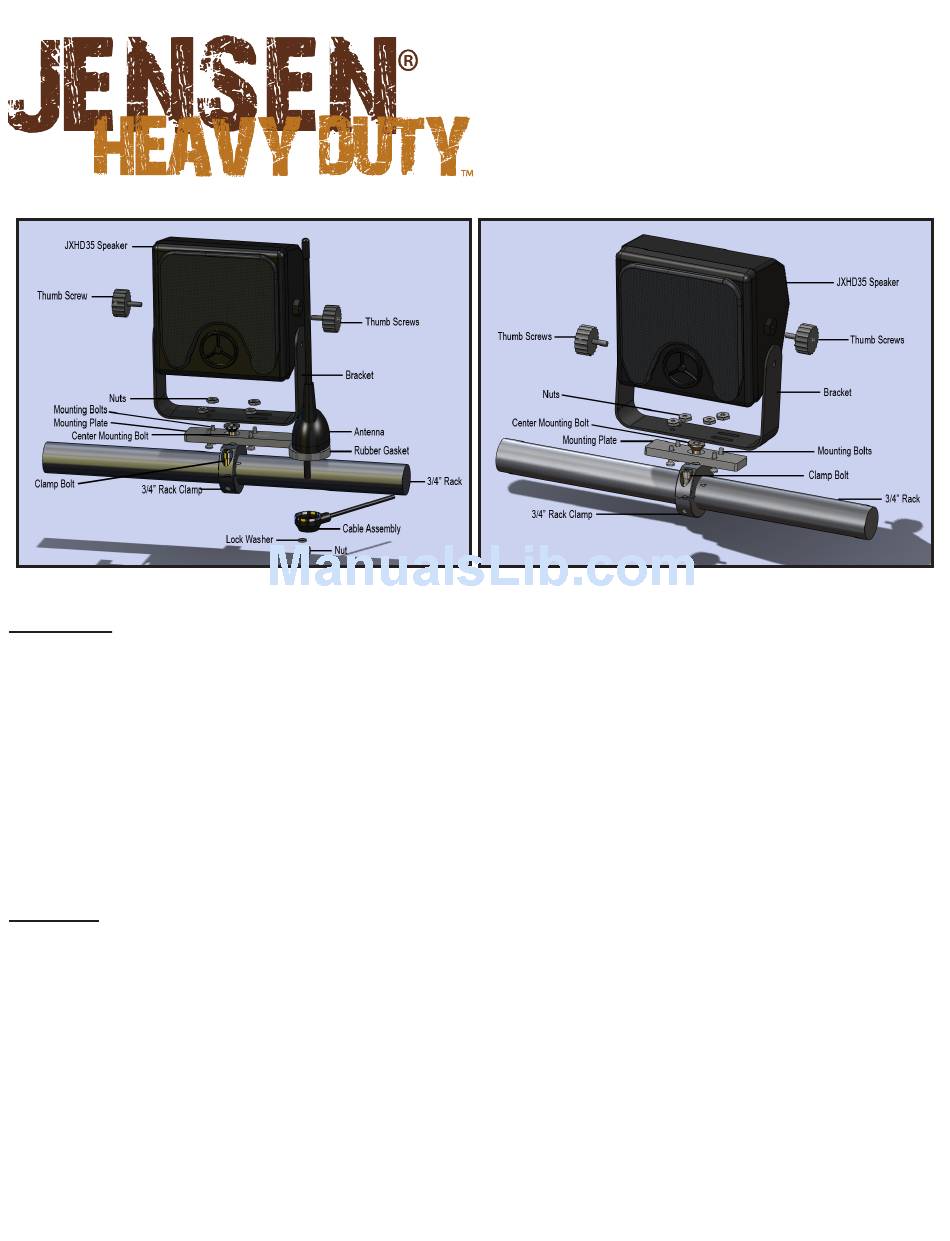

1. MOUNTING THE SPEAKER BRACKET:
Attach the Speaker Bracket to the Mounting Plate per the instructions included with the Speakers. Attach the speaker to the Speaker Bracket also per the
instructions included with the Speakers.
2. MOUNTING THE JAN139 ANTENNA:
Attach the Antenna to the mounting plate per the instructions included with the JAN139 Antenna.
3. MOUNTING THE RACK CLAMP:
1. Remove the 2 Clamp Bolts, using the supplied 5/32" hex key, separate the clamp and place the bottom half under the rack where
you want to locate the mount on the rack.
2. Place the top half of the clamp on the rack and install the Clamp Bolts. Tighten until you cannot move the clamp assembly.
JXHDRMT - Rack Mount for the other JXHD35 Speaker
Same as JXHDARMT above except skip step #2, Mounting the JAN139 Antenna.
Complete the Speaker and Antenna installation per the included instructions.
