ASA
Installation Guide for:
JHD910ROPS

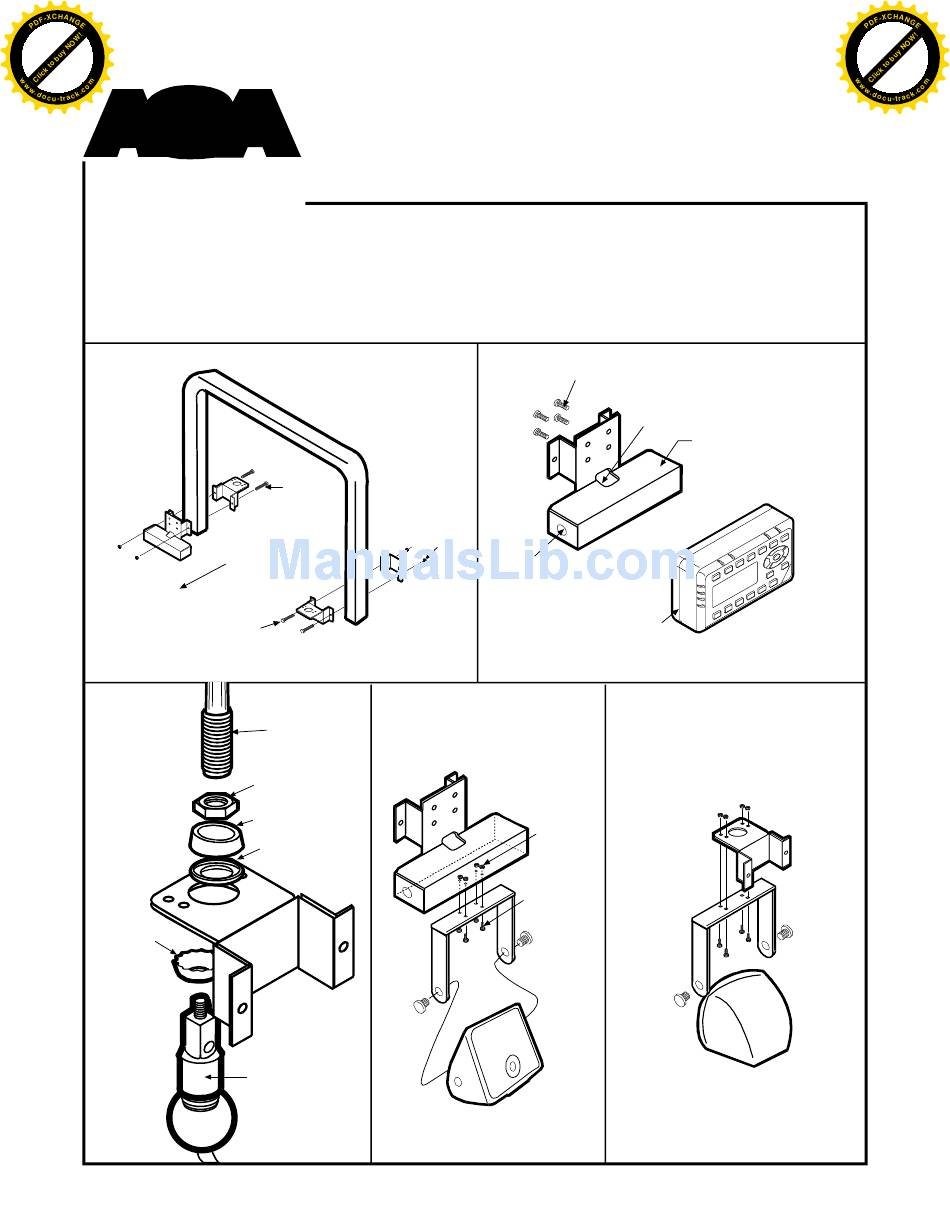

Fig.1
Front of Vehicle
Bolt
Use 2.5"
for 2x3 ROPS
and 1" for 1x2 ROPS)
Fig.3
Antenna Mast
Mounting Nut
Plastic Spacer
Rubber Gasket
Serrated
Washer
(Only
Use One)
Antenna Base
Mini Radio & JXHD35 Speakers
Bolt
Nut
Fig.4
Speaker Mounting (Main Bracket)
Universal/" ROPS" Roll
Bar Mounting Kit for JHD910
Fig. 2
Small Hex Head Bolts (4 pcs.)
Included with Radio (Not in this Kit)
Access Hole for Wiring
Hole for Headphone
Jack (If Required)
Radio
Fig.5
Speaker Mounting (Opposite Side)
1/2" Short
Bolts
Storage Area for
Concealing
Excess Wires
Printed in U.S.A.
Form# 37200033
