Toshiba THNSN81Q92CSE Manual

HK4R SERIES
ENTERPRISE SATA SSD
Designed for read-intensive workloads, the enterprise HK4R SATA SSD series
offers excellent performance, high reliability and low power consumption with high
quality of service, especially for enterprise and file server use.
The HK4R family supports 6.0 Gbit/s interface and is available in large capacities
up to 1.92TB. All 7.0mm height models are equipped with enterprise-grade features
such as Power Loss Protection.
KEY FEATURES

Capacity up to 1.92TB

1 DWPD

SATA 6.0 Gbit/s Interface

Low Operating Power

Power Loss Protection

End to End data protection

Hot-Plug/OS-Aware Hot Removal
SPECIFICATIONS
Standard Models
Connector Type
Memory
1)
Interface
1)
Capacity
1) 2) 3)
Performance
Supply Voltage
Power Consumption
Temperature
Shock
Vibration
Reliability
Size
Weight
More Features
Compliance
Refer to the notes on the next page.
Products and specifications discussed herein are for reference purposes
only and are subject to change without notice. All information discussed
herein is provided on an "as is" basis, without warranties of any kind.
Before creating and producing designs and using, customers must refer to
and comply with the latest versions of the product specifications.
APPLICATIONS






2.5-inch (7.0mmH)
Standard SATA
TOSHIBA MLC NAND Flash Memory
ACS-3, SATA revision 3.2, 1.5/3/6 Gbit/s
120/240/480/960/1920 GB
Sequential Read: 524 MB/s{500 MiB/s}
Sequential Write: 503 MB/s{480 MiB/s}
Random Read: 75,000 IOPS
Random Write: 14,000 IOPS
5.0 V ±5 %
Active: 4.5 W typ.
Idle: 1.2 W typ.
Operating: 0 °C - 55 °C
Non-operating: -40 °C - 70 °C
Operating / Non-operating: 9,800 m/s
2
Operating: 21 m/s
Non-operating: 159 m/s
Mean Time to Failure (MTTF): 2,000,000 hours
Product Life: Approximately 5 years
100.45 mm(Length) x 69.85 mm(Width) x 7.0 mm(Height)
60 g Max
28-bit LBA mode commands and 48-bit LBA mode commands support
Automatic retries and corrections for read errors
NCQ (Native Command Queuing) function supported
UL, cUL(CSA), TÜV, KC, FCC, BSMI, CE, RCM, ISED, VCCI
SSD

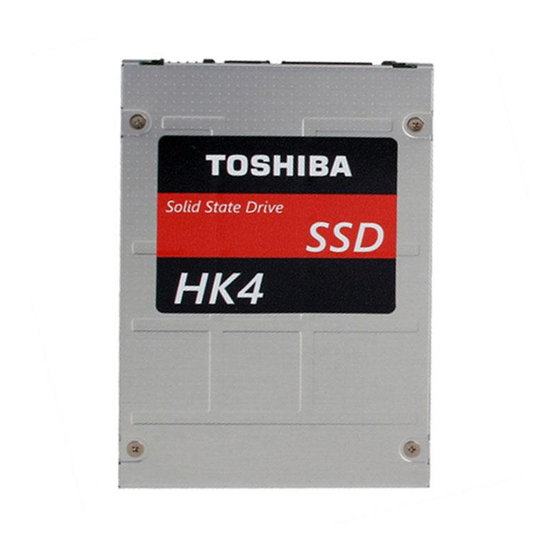

Product image may represent a design model
Web Servers
File Server
Media Streaming
VOD
Search Engine
Warm Data Storage
2
{1000 G} at 0.5 ms
{2.17 Grms} at 100-800 Hz
2
{16.3 Grms} at 20-2,000 Hz
Copyright © 2016-2017 Toshiba Corporation. All Rights Reserved.
Enterprise SATA SSD HK4R Series Brochure Rev.1.01
1 / 13
