SERVICE MANUAL
System
Laser: Semiconductor laser
Channel coverage (GX330):
NTSC
PAL-M (GX330:BR)
VHF: 2 to 13
UHF: 14 to 69
CATV: A-8 to A-1, A to W,
W+1 to W+84
Channel coverage (GX220):
PAL/SECAM* (BG, DK, I)
VHF: E2 to E12, R1 to R12,
Italian A to H, Ireland A to J,
South Africa 4 to 13
UHF: E21 to E69, R21 to R69,
B21 to B69
CATV: S01 to S05, S1 to S20
HYPER: S21 to S41
*not available on Oceanian models
Video reception: Frequency synthesizer
system
Audio reception:
(GX220): Split carrier system
(GX330): Inter carrier system
Antenna (GX330): 75-ohm antenna
terminal for VHF/UHF
Antenna/Aerial out (GX220):
75-ohm asymmetrical aerial socket
Timer: Clock: Quartz locked/Timer
indication:
24-hour cycle (digital)(GX220),
12-hour cycle (digital)(GX330)/
Power back-up duration: 1 hour
RDR-GX220/GX330
SPECIFICATIONS
Video recording format:
MPEG-2, MPEG-1
Audio recording format/applicable
bit rate: Dolby Digital 2 ch 256 kbps/
128 kbps (in EP and SLP mode)
Inputs and outputs
LINE OUT
(AUDIO): Phono jack/2 Vrms/10 kilohms
(VIDEO): Phono jack/1.0 Vp-p
(S VIDEO): 4-pin mini DIN/Y: 1.0 Vp-p,
C: 0.286 Vp-p (NTSC)(GX330),
0.3 Vp-p (PAL)(GX220)
LINE 1 IN/LINE 2 IN
(AUDIO): Phono jack/2 Vrms/more than
22 kilohms
(VIDEO): Phono jack/1.0 Vp-p
(S VIDEO): 4-pin mini DIN/Y: 1.0 Vp-p,
C: 0.286 Vp-p (NTSC)(GX330),
0.3 Vp-p (PAL)(GX220)
DV IN: 4-pin/i.LINK S100
DIGITAL OUT (COAXIAL): Phono jack/
0.5 Vp-p/75 ohms
COMPONENT VIDEO OUT
(Y, P , P ) (GX330),
B R
(Y, P /C , P /C ) (GX220):
B B R R
Phono jack/Y: 1.0 Vp-p/
P , P (GX330): 0.7 Vp-p
B R
P /C (GX220): 0.7 Vp-p
B B
P /C (GX220): 0.7 Vp-p
R R
RMT-D229A/D229P
Australian/New Zealand Model
Singapore Model
Russian Model
Brazilian Model
General
Power requirements:
220 - 240 V AC,
50/60 Hz (GX220)
110 - 240 V AC,
50/60 Hz (GX330)
Power consumption: 22W
Dimensions (approx.):
430 × 58 × 291 mm
(width/height/depth) incl. projecting parts
Mass (approx.): 3.1 kg
Operating temperature: 5°C to 35°C
Operating humidity: 25% to 80%
Supplied accessories:
Audio/video cord (1)
Power cord (mains lead) (1)
Antenna cable (aerial cable) (1)
Remote commander (remote) (1)
Size AA (R6) batteries (2)
Plug adapter (GX330:E)
Specifications and design are subject to
change without notice.

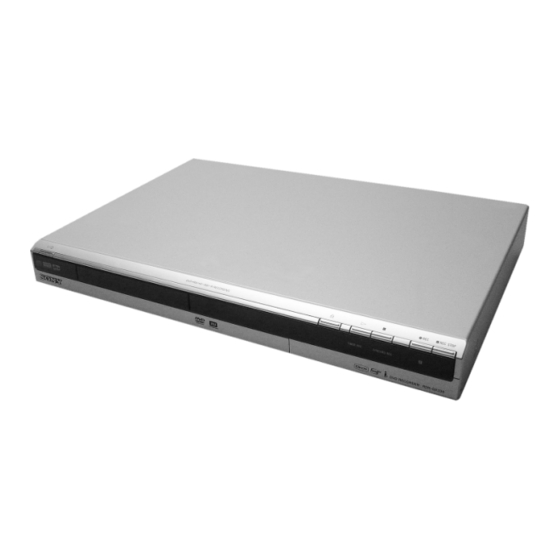

DVD RECORDER

RDR-GX220
E Model
RDR-GX330
