This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to
service or repair the products dealt with in this service information by anyone else could result in serious injury or death.
In order to avoid frostbite, be assured of no refrigerant leakage during the installation or repairing of refrigerant circuit.
WARNING
PRECAUTION OF LOW TEMPERATURE

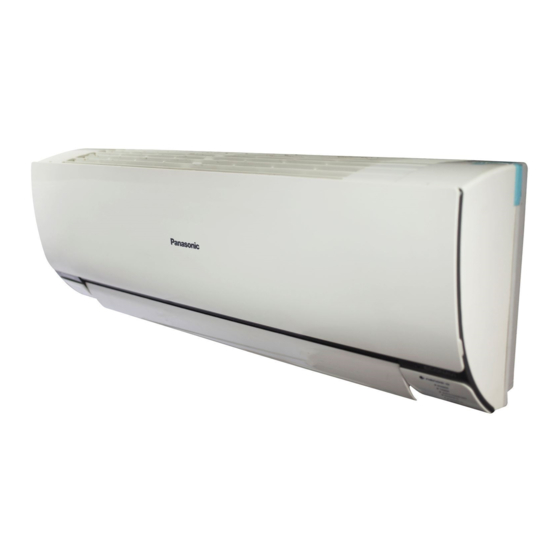

CS-S10PKH
CS-S13PKH
CS-S15PKH
CS-S18PKH
CS-S24PKH
Order No: PAPAMY1211001CE
CU-S10PKH
CU-S13PKH
CU-S15PKH
CU-S18PKH
CU-S24PKH
Destination
Malaysia
Myanmar
S.E.Asia
