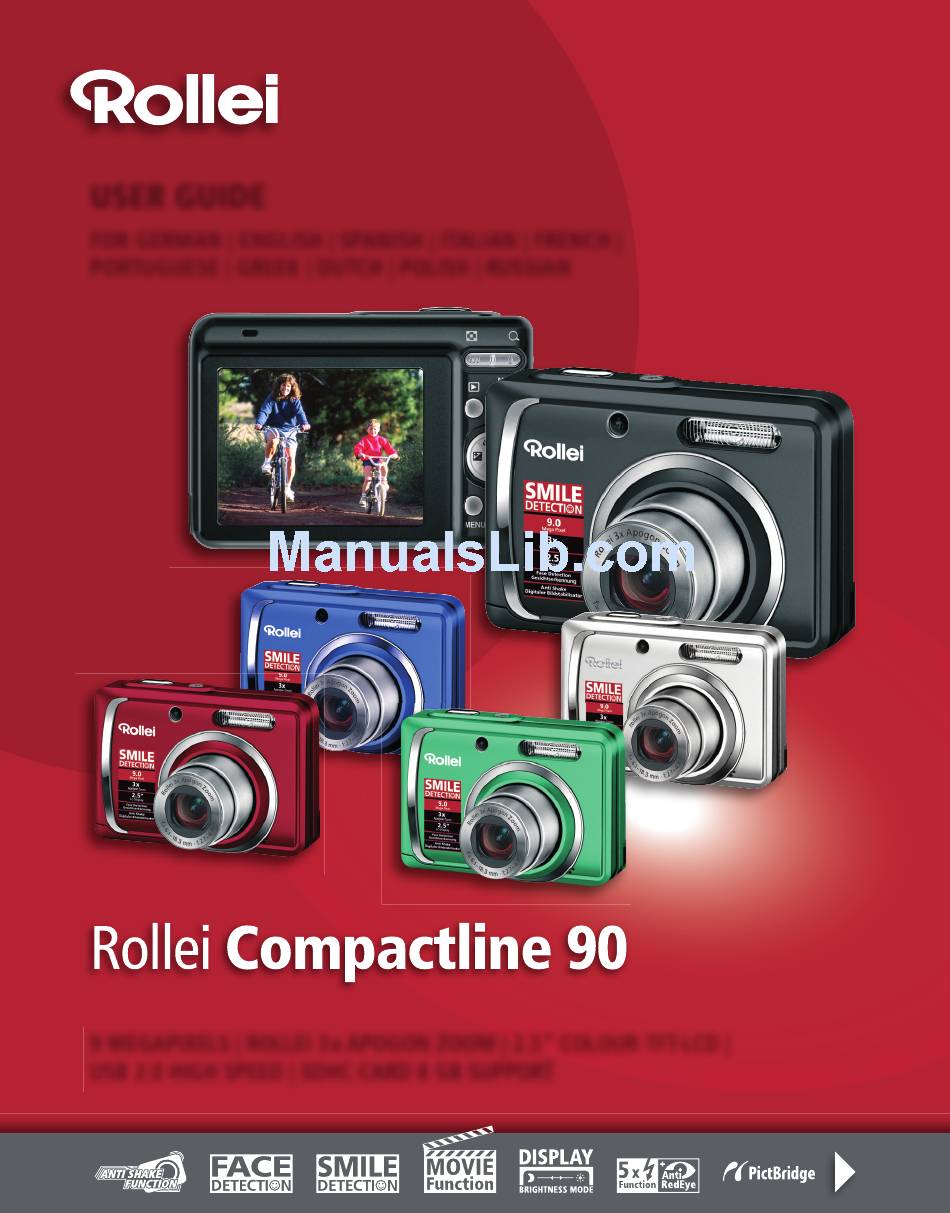

Page 1: User Guide
FOR GERMAN | ENGLISH | SPANISH | ITALIAN | FRENCH | PORTUGUESE | GREEK | DUTCH | POLISH | RUSSIAN 9 MEGAPIXELS | ROLLEI 3 x APOGON ZOOM | 2.5“ COLOUR-TFT-LCD | USB 2.0 HIGH SPEED | SDHC CARD 8 GB SUPPORT... -
Page 2: Fcc Statement
FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 3: Read This First
READ THIS FIRST Trademark Information ® ® Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. ® Pentium is a registered trademark of Intel Corporation. Macintosh is a trademark of Apple Inc. SD™ is a trademark. SDHC™ is a trademark. Other names and products may be trademarks or registered trademarks of their respective owners. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Read and understand all Warnings and Cautions before using this product. Warnings If foreign objects or water have entered the camera, turn the power off and remove the batteries. Continued use might cause fire or electric shock. Consult the store of purchase. - Page 5 Cautions Load the batteries paying careful attention to the polarity (+ or –) of the terminals. Loading the batteries with their polarities inverted might cause fire and injury, or damage to the surrounding areas due to the battery rupturing or leaking.
-
Page 6: Notes On Battery Usage
Notes on Battery Usage When you use the batteries, carefully read and strictly observe the Safety Instructions and the notes described below: Use only the specified batteries. Avoid extremely cold environments as low temperatures can shorten the battery life and reduce camera performance. Therefore Ni-MH rechargeable batteries are highly recommended. -
Page 7: Table Of Contents
CONTENTS INTRODUCTION 15 Playing Back Still Images Overview 15 Playing Back Video Clips Package Contents 16 Thumbnail Display 16 Removing Red-eye GETTING TO KNOW YOUR CAMERA 17 MENU OPTIONS Front View 17 Capture Menu Rear View 18 Video Menu 10 LCD Monitor Display 19 Playback Menu 19 Setup Menu 12 GETTING STARTED... -
Page 8: Introduction
INTRODUCTION Overview Congratulations on your purchase of the new digital camera. Capturing high-quality digital images is fast and easy with this state-of-the-art smart camera. Equipped with an 9.0-megapixel sensor, this camera is capable of capturing images with a resolution of up to 3472 x 2604 pixels. Package Contents Carefully unpack your camera and ensure that you have the following items: Common Product Components:... -
Page 9: Getting To Know Your Camera
GETTING TO KNOW YOUR CAMERA Front View 1. Shutter button 2. Self-timer LED 3. Power button 4. Flash 5. Lens 6. USB connector 7. Microphone EN-8... -
Page 10: Rear View
Rear View Function Item Capture Mode Video Mode Playback Mode 1. Shutter Button Record Button Voice memo Rec.(a) Previous mode 2. Playback mode Playback mode Previous mode 3. Focus Focus Rotation Right Auto> > > Normal> > 4. Compensation Previous file >... -
Page 11: Lcd Monitor Display
LCD Monitor Display Capture Mode 1. Scene mode 2. Flash mode [Blank] Auto Flash Flash On Flash Off Red-eye Slow Sync Pre-flash 3. Zoom status 00154 2008/01/01 4. Battery condition [l] 100% battery power [p] 75%battery power [o] 50% battery power [n] less than 20% battery power [m] less than 5% battery power * Poor lighting conditions. - Page 12 Video mode [S] 1. Mode icon 2. Flash mode 3. Zoom status 4. Battery condition 5. Storage media 6. Audio off icon 7. Video resolution 8. Video quality 9. Available recording time/Elapsed time 03:50 03:50 2008/01/01 2008/01/01 10. Main focus area 11.
-
Page 13: Getting Started
GETTING STARTED Preparation 1. Attach the camera strap. 2. Open the battery/memory card cover. 3. Load the supplied batteries with correct orientation as shown. 4. Insert an SD/SDHC memory card. The camera has 32MB internal memory (26MB available for image storage), but you can load an SD/SDHC memory card to expand the camera’s memory capacity. -
Page 14: Capture Mode
CAPTURE MODE Capturing Images Your camera is equipped with a 2.48” LTPS-TFT LCD monitor to help you compose images, playback recorded images/video clips or adjust menu settings. 1. Press the Power button to turn the power on. The status LED lights green and the camera is initiated. If the power is turned on in [8] or [w] mode, the lens will extend forward and it is ready for shooting. -
Page 15: Recording Shots Using Face Detection Technology
Recording Shots using Face Detection Technology Face Detection Technology can identify and focus on the human faces in the image. This advanced function simultaneously detects up to 5 human faces regardless of their position in the scene. 1. Toggle the button to [8]. -
Page 16: Playback Mode
PLAYBACK MODE Playing Back Still Images You can play back the still images on the LCD monitor. 1. Press the [x] button. The last image appears on the screen. 2. The images can be displayed in reverse or forward sequence with the buttons. -
Page 17: Thumbnail Display
Thumbnail Display This function allows you to view thumbnail images on the LCD monitor so you may search for a particular image/video clip/audio file. 1. Press the [x] button. The last image appears on the screen. 101-0001 2. Press the button. -
Page 18: Menu Options
MENU OPTIONS Capture Menu This menu is for the basic settings to be used when capturing still images. Toggle the button to [8]. 2. Press the MENU button, and select the [Capture] / Scene Next Menu [Function] menu with the button. -
Page 19: Video Menu
This sets the metering method for calculating the exposure. * [ X ] Center: Averages the light metered from the entire frame, but gives greater weight to the subject matter at the center. * [ q ] Spot: A very small portion of the center of the screen is measured, and the exposure is calculated. -
Page 20: Playback Menu
Refer to section in this manual titled “Digital Zoom” in Capture Menu for further details. Playback Menu In the [x] mode, choose which settings are to be used for playback. 1. Press the [x] button. 2. Press the MENU button. Next Menu Delete 3. - Page 21 3. Select the [Setup] menu with the button. 4. Select the desired option item with the buttons, and Next Menu press the SET button to enter its respective menu. Date/Time Language English 5. Select the desired setting with the buttons, and Auto Off 3 Min.
-
Page 22: Transferring Files To Your Computer
TRANSFERRING FILES TO YOUR COMPUTER System Requirement Windows Macintosh Pentium III 1GHz or equivalent PowerPC G3/G4/G5 Windows 2000/XP/Vista OS 9.0 or later 512MB RAM 256MB RAM (512MB recommended) 150MB available hard disk space 128MB available hard disk space CD-ROM drive CD-ROM drive Available USB port Available USB port... -
Page 23: Using The Camera As A Pc Camera
USING THE CAMERA AS A PC CAMERA Your camera can act as a PC camera, which allows you to videoconference with business associates, or have a real-time conversation with friends or family. 1. After installing the PC camera driver (included on the CD-ROM) in your Windows operating system, restart your computer. -
Page 24: Specifications
SPECIFICATIONS Item Description Image sensor 1/2.3” CMOS sensor (9.0 megapixels) Image resolution <Still image> 9M (3472 x 2604) , 6M (2816 x 2112) , 4M (2304 x 1728), 2M (1600 x 1200), VGA (640 x 480) <Video clip> VGA(640 x 480)(24fps), QVGA(320 x 240)(30fps) LCD monitor 2.48”... -
Page 25: Connecting To A Pictbridge Compatible Printer
Connecting to a PictBridge Compatible Printer Read this section if the model you purchased is included with the PictBridge functions. If a printer that supports PictBridge is available, images can be printed by connecting the digital still camera directly to the PictBridge-compatible printer without using a computer. Connecting the camera to the printer 1. - Page 26 A. Information on Disposal for Users (private households) 1.In the European Union Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin! Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.
- Page 27 RCP-Technik GmbH & Co. KG Tarpen 40/Gebäude 6b D-22419 Hamburg Hotline +49 (0)6 31/3 42 84 49 welcome @ rcp-technik.com www.rcp-technik.com Subject to technical changes!
