SERVICE MANUAL
• HCD-RG295 is the amplifier, CD player, tape
deck and tuner section in MHC-RG295.
• HCD-RG495 is the amplifier, CD player, tape
deck and tuner section in MHC-RG495.
• HCD-RG595 is the amplifier, CD player, tape
deck and tuner section in MHC-RG595.
TE
L 13942296513
Amplifier section
European model:
HCD-RG595
Front speaker
Power output (rated): 110 W + 110 W
(at 6 Ω, 1 kHz, 1% THD)
RMS output power (reference): 180 W +
180 W (per channel at 6 Ω, 1 kHz, 10%
THD)
Subwoofer
RMS output power (reference): 180 W
(at 6 Ω, 80 Hz, 10% THD)
HCD-RG495
Front speaker
Power output (rated): 95 W + 95 W (at
6 Ω, 1 kHz, 1% THD)
RMS output power (reference): 155 W +
155 W (per channel at 6 Ω, 1 kHz, 10%
THD)
Subwoofer
RMS output power (reference): 155 W
(at 6 Ω, 80 Hz, 10% THD)
HCD-RG295
Power output (rated): 95 W + 95 W (at
6 Ω, 1 kHz, 1% THD)
RMS output power (reference): 155 W +
155 W (per channel at 6 Ω, 1 kHz, 10%
THD)
www
.
Sony Corporation
9-887-527-02
Audio&Video Business Group
2008I05-1
Published by Sony Techno Create Corporation
© 2008.09
http://www.xiaoyu163.com
Other models:
HCD-RG595
The following are measured at AC 120, 127,
220 or 240 V, 50/60 Hz
Front speaker:
Power output (rated): 110 W + 110 W
(at 6 Ω, 1 kHz, 1% THD)
RMS output power (reference): 180 W + 180 W
(per channel at 6 Ω, 1 kHz, 10% THD)
Subwoofer:
RMS output power (reference): 180 W
(at 6 Ω, 80 Hz, 10% THD)
HCD-RG495
The following are measured at AC 120, 127,
220, 240 V 50/60 Hz
Front speaker
Power output (rated): 95 W + 95 W (at
6 Ω, 1 kHz, 1% THD)
RMS output power (reference): 155 W +
155 W (per channel at 6 Ω, 1 kHz, 10%
THD)
Subwoofer
RMS output power (reference): 155 W
(at 6 Ω, 80 Hz, 10% THD)
x
ao
u163
y
i
http://www.xiaoyu163.com
2 9
8

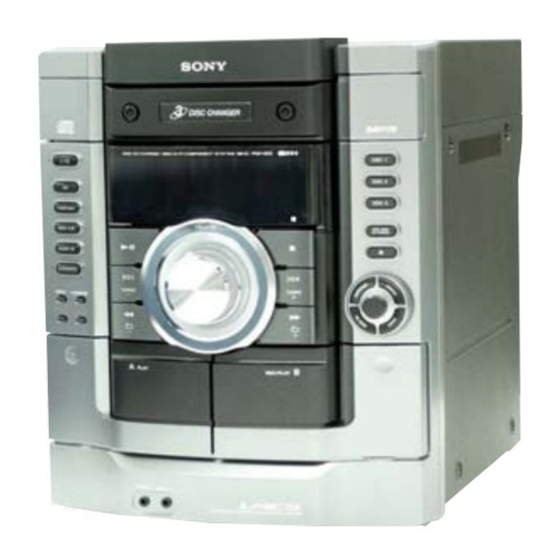

Photo: HCD-RG495
Model Name Using Similar Mechanism
CD
CD Mechanism Type
Section
Base Unit Name
Optical Pick-up Block Name
TAPE
Model Name Using Similar Mechanism
Section
Tape Transport Mechanism Type
3
6 7
1 3
1 5
SPECIFICATIONS
COMPACT DISC DECK RECEIVER
co
.
9 4
2 8
AEP Model
E Model
UK Model
Australian Model
HCD-RG490/RG590
CDM74KF-K6BD83S
BU-K6BD83S-WOD
HCD-RG490/RG590
CWN42FF609
0 5
8
2 9
9 4
2 8
HCD-RG295
The following are measured at AC 120, 127,
220, 240 V 50/60 Hz
Power output (rated): 95 W + 95 W (at
6 Ω, 1 kHz, 1% THD)
RMS output power (reference): 155 W +
155 W (per channel at 6 Ω, 1 kHz, 10%
THD)
Inputs:
AUDIO IN (stereo mini jack): voltage
250 mV, impedance 47 kilohms
Outputs:
PHONES (stereo mini jack): accepts
headphones of 8 ohms or more
SPEAKER: accepts impedance of 6 to
16 ohms
SUBWOOFER OUT (HCD-RG595/
RG495 only): accepts impedance of 6 to
16 ohms
- Continued on next page -
