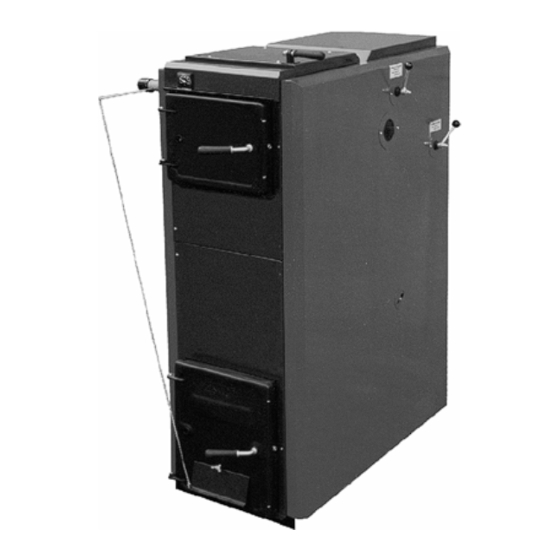

- Page 1 ® CENTRAL HEATING BOILER ON SOLID FUEL KALVIS-2-16, 2-25, 2-30, 2-40 USERS INSTALLATION AND OPERATION MANUAL CERTIFICATE NO. SPSC-5199...
- Page 2 - 2 -...
-
Page 3: Technical Data
Get acquainted with this technical certificate before installing the boiler. 1. Technical data. Central heating boiler "Kalvis-2-16, 2-25, 2-30, 2-40" (hereinafteer referred to as the boiler) is used for heating of various premises where central heating system with natural or forced circulation is arranged. -
Page 4: Design Description
Boiler frame is welded from special sheet steel has water cavities, where Boiler model mark water is heated (see 1 fig.). Internal boiler frame is made of 6 mm thick steel, external – 3 mm. Exterior of the boiler is covered with insulating KALVIS-2-16, 2-25, 2-30, 2-40 en 2009.05.18... - Page 5 Rear side of the boiler has drainage tube (p.21), return (p.20) and hot water (p.13) tubers, smoke pipe with draught damper (p.15). Boiler heat exchanger (except Kalvis-2-16) has turbulators (p.16) that ensure a better heat transfer. If there is an insufficient draught it is recommended to remove turbulators.
-
Page 6: Requirements For Chimney
In case of a Company breakdown Address contact Phone Manufacturer UAB “Šiaulių tauro kalvis” Pramonės 15, LT-78137 Šiauliai, Lithuania Phone: (+370 41) 540556 E-mail: info@kalvis.lt 2 fig. 3 fig. KALVIS-2-16, 2-25, 2-30, 2-40 en 2009.05.18... - Page 7 Recommended connection schema is shown in the 4 fig. (name, last name, signature) • Boiler may be connected to the heating system according to the project prepared by heating equipment specialists or works may be KALVIS-2-16, 2-25, 2-30, 2-40 en 2009.05.18...
- Page 8 67 % 1610 1,87 64 % Average coal caloric value 6500 kcal/kg (7,56 kWh/kg). 8. Receipt note Central heating boiler "Kalvis-2-____" factory No._________ conforms with manufacturing drawingsand is fit for service. Manufacturing date ______________________ Quality manager __________________________ KALVIS-2-16, 2-25, 2-30, 2-40 en...
- Page 9 Combustion heat of absolutely dry wood does not depend on the kind of wood and equals 4510 kcal/kg. So in order to compare different kinds of wood we need to assume their relative weight. 1m weighs: KALVIS-2-16, 2-25, 2-30, 2-40 en 2009.05.18...
- Page 10 Burner cleaning periods depend on pellet quality. When pellets with lots of admixtures are combusted burner should be cleaned every day. KALVIS-2-16, 2-25, 2-30, 2-40 en 2009.05.18...
- Page 11 15-20seconds if needed; Close the door damper (p.1) with draught adjuster (p.7); Slightly open fuel loading door (p.5), fully open them in 5-10 seconds and add fuel; Close fuel loading doors and dapers tightly; KALVIS-2-16, 2-25, 2-30, 2-40 en 2009.05.18...
- Page 12 60 degrees. 4.4. Requirements for the electric connections: If electric heating devices are isntalled Pos. Name q-ty Switch F1-F3 Heating device 3x1,5 kW thread G2B 3x2 kW L=400) 5 fig.. Recommended connection for electric heating KALVIS-2-16, 2-25, 2-30, 2-40 en 2009.05.18...
