  • Page 1 Wall Chasers Portable electric wall chasers Original User Guide M DE IN SP IN...
  • Page 2 Portable electric wall chaser Macroza S S C C 200 Macroza Macroza...
  • Page 4 G G E E N N E E R R A A L L S S A A F F E E T T Y Y R R U U L L E E S S RECOMENDED ¡WARNING! Read and understand all instructions before using MACROZA Wall Chasers. Failure to follow all basic safety measures listed below may result in electric shock, fire and/or serious personal injury.
  • Page 5 21. All moving parts should be periodically this book of proper chasing positions. inspected together with the cord and cutter 13. Store idle your MACROZA Wall Chaser in a protective cover. dry safe place under lock and key and out of reach of children.

  • Page 6: Electrical Safety

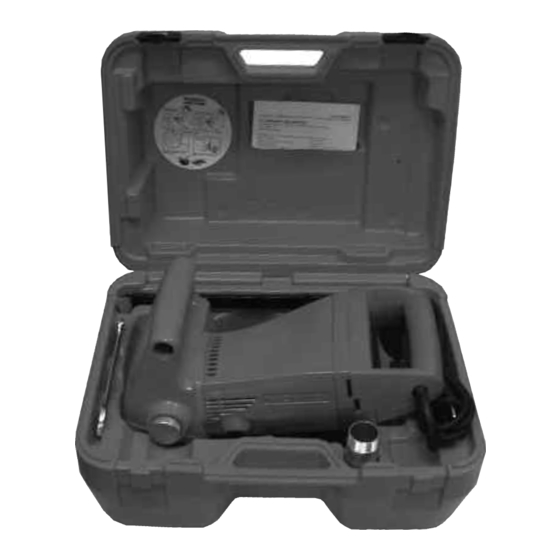

    ELECTRICAL SAFETY The installation voltage must be as stated on the MACROZA wall chasers’ specifications plate WARNING! To reduce risk of injury, end-user must read instruction manual carefully. 1 MACROZA wall chaser machine EQUIPMENT 1 Special fixed wrench for loosening the milling cutter...
  • Page 7 INSTALLING THE MILLING CUTTER • There are several sizes of MACROZA milling cutter depending on desired width and depth of the chase. • Only original MACROZA milling cutters should be used as they are specifically designed for MACROZA Wall Chasers.
  • Page 8 • Switch on the machine before contact with the surface to verify its rotating direction. Teeth must rotate forward as shown in Figure 4. • Lean your MACROZA wall chaser lateral to the wall. Slowly insert the milling cutter into the wall (Figure 4).
  • Page 9 HORIZONTAL CHASES • Horizontal chases are done from right to left. • The right hand holds the wall chaser by the right side of the milling cutter cover and pushes leftwards (Figure 6). • Right arm will lean on to the machine and push also leftward from the left hand side (Figure 7).
  • Page 10 ““Correct” ” OVERLOAD CIRCUIT If the milling cutter gets blocked with the wall chaser switched on in model MACROZA SC200 a red light will lit up and the machine will switched off automatically. After a few seconds a green light will be lit instead and the wall chaser will be able to carry...
  • Page 11 DUST COLLECTION OPTION FOR MACROZA M95 & Sc200 MACROZA M95 and SC200 come with optional dust collection outlet if needed. • Remove milling cutter cover cap as shown on Figure 9 • Insert dust collector adaptor. Figure 10 • Attach dust collector adaptor on dust collection system as shown on figure 11 figure.

  • Page 12: Milling Cutters

    MILLING CUTTERS MACROZA wall chasers’ cutting device is a Tungsten Carbide tipped milling cutter. There are seven different types of milling cutters depending on required cutting measure (depth x width): RZ or RD 10: 25 mm x 25 mm (suitable for all Macroza models)
  • Page 13 Carbide Sharpness tester MILLING CUTTER SHARPENING Use the MACROZA Carbide Tester before sharpening the “Do NOT use this milling cutter to check kind of machine for whether the carbide teeth sharpening.”.” need to be sharpened. Sharpening must be carried out with “Sharpening must be...
  • Page 14 - Fireproof bricks - Fly Ash blocks - Aerated concrete (AAC) blocks - Mortar-rendered walls - Cement blocks Do not use the MACROZA chaser machines on concrete, pre-cast concrete, stone or any other extremely hard material. MILLING HOURS MATERIAL Metres before...
  • Page 15 (figure 7). 4. Sharpen the new following instructions above. MAINTAINING THE MACROZA CHASER MACHINE: All repair & maintenance work on the machine must be carried out at a MACROZA Technical Service Centre. MACROZA Maintenance We strongly recommend that all maintenance of Macroza Wall Chasers is done at an official Macroza Technical Service Centre.

  • Page 22: Ec Declaration Of Conformity

    Macroza M80 EC DECLARATION OF CONFORMITY (2006/42/CE) The company MACRO s.l., wall chaser machines manufacturer with official address at: Calle Leñeros, 15 - 28039 Madrid - (SPAIN) DECLARES under its own responsibility that the portable wall chaser machine: Brand: MACROZA Model: M80 Voltage: 110V / 130V A.C.
  • Page 23 Macroza M95 EC DECLARATION OF CONFORMITY (2006/42/CE) The company MACRO s.l., wall chaser machines manufacturer with official address at: Calle Leñeros, 15 - 28039 Madrid - (SPAIN) DECLARES under its own responsibility that the portable wall chaser machine: Brand: MACROZA Model: M95 Voltage: 110V / 130V A.C.
  • Page 24 Macroza S 200 EC DECLARATION OF CONFORMITY (2006/42/CE) The company MACROZA s.l., wall chaser machines manufacturer with official address at: Calle Leñeros, 15 - 28039 Madrid - (SPAIN) DECLARES under its own responsibility that the portable wall chaser machine: Brand: MACROZA Model: SC200 Voltage: 110 V / 130V.a.c or...
