Compaq 207590-B21 - Power Distribution Unit Strip Quick Install Manual page 2

2

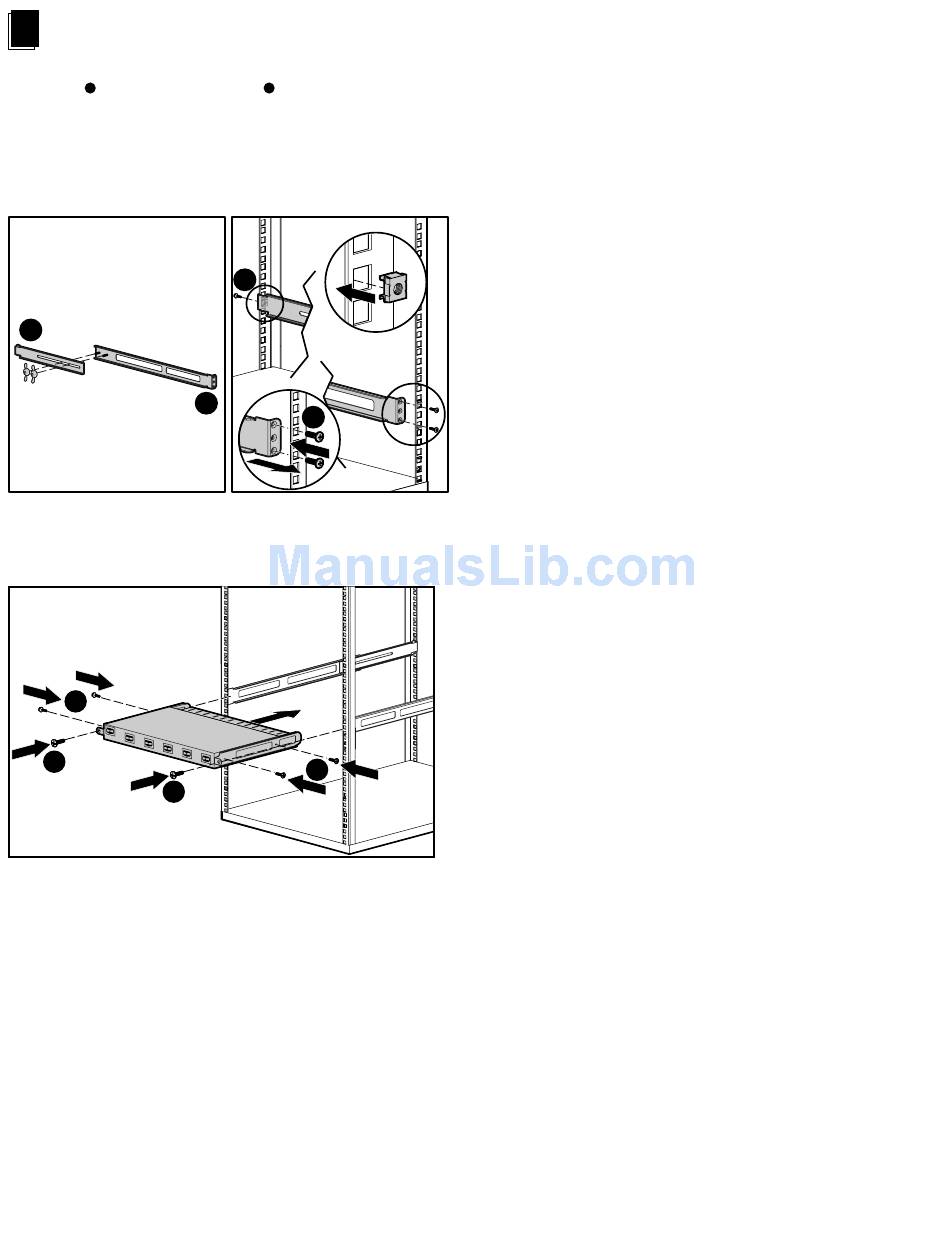

Installing the Unit - 1U Configuration
Use 1U installation template (included) to select and align rack mounting holes.
Place rear rail over the studs in the front rail . Tighten the nuts finger tight.
R F
The mounting tab will be facing out, so the holes will align with the rack sides.
Adjust the length of rail assembly to fit inside rack. Tighten the nuts.
Insert the cage nuts (one on each side) in rack. Set hooks at rear of rail over
holes in rack. Use screws 2 (one on each side) to attach the rails to the rear of
the rack, through the cage nut. Use screws 2 (two on each side) to attach the
rails to the front of the rack.
2
2
R
F
2
Align bracket with screw holes in unit. Use screws 1 to attach brackets to sides
of unit. Slide unit into rails and secure by using screws 2 to attach unit.
1
2
1
2
Rack installation is complete.
To complete installation of the unit, refer to the installation guide which is
included with the device.
