SERVICE MANUAL
Ver. 1.0 2008.04
System
Laser: Semiconductor laser
Channel coverage:
AEP, UK, Russian model
PAL (
B/G, D/K, I)/SECAM (L)
TE
VHF: E2 to E12, R1 to R12, F2 to
L 13942296513
F10, Italian A to H, Ireland A to J,
South Africa 4 to 11, 13
UHF: E21 to E69, R21 to R69, B21 to
B69, F21 to F69
CATV: S01 to S05, S1 to S20, France
B to Q
HYPER: S21 to S41
The above channel coverage merely ensures
the channel reception within these ranges. It
does not guarantee the ability to receive
signals in all circumstances. The channels
that can be received differ depending on the
country/region.
Channel coverage:
Canadian, E model
NTSC
VHF: 2 to 13
UHF: 14 to 69
CATV: A8 to A1, A to W, W+1 to W+84
Video reception: Frequency
synthesizer system
Audio reception: Split carrier system
Aerial out: AEP, UK, Russian model
Antenna out: Canadian, E model
75-ohm asymmetrical aerial socket
Timer: Clock: Quartz locked/Timer
www
indication: 24-hour cycle (digital)
Video recording format: MPEG-2,
MPEG-1
Audio recording format/applicable
.
bit rate: Dolby Digital 2 ch
256 kbps/128 kbps (in EP, SLP, and
SEP mode), PCM
9-883-980-11
http://www.xiaoyu163.com
(AEP)
Inputs and outputs
LINE 2
LINE OUT: Canadian, E model
(AUDIO): Phono jack/2 Vrms/10 kilohms
(VIDEO): Phono jack/1.0 Vp-p
(S VIDEO): 4-pin mini DIN/Y: 1.0 Vp-p,
C
: 0.3 Vp-p (PAL)
C: 0.286 Vp-p (NTSC)
LINE 2
LINE IN 1/2/3: Canadian, E model
(AUDIO): Phono jack/2 Vrms/more than
22 kilohms
(VIDEO): Phono jack/1.0 Vp-p
(S VIDEO): 4-pin mini DIN/Y: 1.0 Vp-p,
C: 0.3 Vp-p (PAL)
C: 0.286 Vp-p (NTSC)
LINE 3 – TV: 21-pin
AEP, UK, Russian model
CVBS OUT
S-Video/RGB OUT (upstream)
LINE 1/DECODER: 21-pin
AEP, UK, Russian model
CVBS IN/OUT
S-Video/RGB IN
Decoder
DV IN: 4-pin/i.LINK S100
DIGITAL OUT (COAXIAL): Phono
jack/0.5 Vp-p/75 ohms
COMPONENT VIDEO OUT
(Y, P
AEP, UK, Russian model
(Y, P
Phono jack/Y: 1.0 Vp-p,
P
/C
B
x
ao
u163
G-LINK*: mini jack
y
HDMI OUT: HDMI™ Connector
i
Home Electronics Network Company
http://www.xiaoyu163.com
RDR-HX680/HX780/HX785/
2 9
8

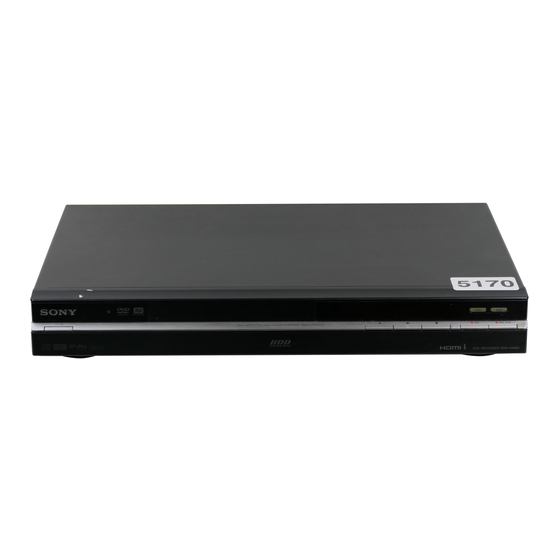

Photo: RDR-HX780
RMT-D246A
(AEP, UK, Russian)
SPECIFICATIONS
OUT: AEP, UK, Russian model
Q Q
3
6 7
1 3
1 5
IN: AEP, UK, Russian model
/C
, P
/C
):
B
B
R
R
, P
):
Canadian, E model
B
R
: 0.7 Vp-p, P
/C
: 0.7 Vp-p
B
R
R
co
.
Sony Corporation
HX980/HX1080
9 4
2 8
RMT-D246A/D249P/D250P
AEP Model
RDR-HX680/HX780/HX785/HX980/
Canadian Model
UK Model
E Model
Australian Model
Russian Model
Singapore Model
Thai Model
RDR-HX780/HX980
USB:
USB jack Type A (For connecting
digital still camera, Memory card
reader, USB memory and HDD
camcorder)
USB jack Type B (For connecting
0 5
8
2 9
9 4
2 8
PictBridge-compatible printers)
General
Power requirements: 220-240 V AC,
50/60 Hz
Power consumption:
43 W AEP, UK, Russian model
42 W Canadian, E model
Dimensions (approx.):
430 ⋅ 66.5 ⋅ 286.5 mm (width/height/
depth) incl. projecting parts
Hard disk drive capacity:
RDR-HX680/HX780/HX785:
160 GB
RDR-HX980: 250 GB
RDR-HX1080: 500 GB
Mass (approx.): 4.4 kg
Operating temperature: 5ºC to 35ºC
Operating humidity: 25% to 80%
Supplied accessories:
Mains lead (1)
Aerial cable (1)
Audio/video card (1) Canadian, E model
Re
mote commander (remote) (1)
Set top box controller (1)*
R6 (size AA) batteries (2)
* RDR-HX780/HX785/HX980/HX1080
AEP model only
Specifications and design are subject to
m
change without notice.

DVD RECORDER

Published by Quality Assurance Dept.
9 9
HX1080
RDR-HX780
9 9
2008D1600-1
©2008.04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RDR-HX1080 and is the answer not in the manual?

Questions and answers

Summarization of Contents

Service Manual and Specifications
Specifications
Detailed technical specifications for various models, including electrical and physical parameters.
Safety Information
Component Safety Warnings
Critical warning about components identified by marks for safe operation.
Handling Cautions
Precautions for using unleaded solder and avoiding eye hazards with optical instruments.
Service Notes and HDD Diagnosis
Disk Removal Procedure (Forced Ejection)
Procedure for manually ejecting a disc when the tray cannot be opened normally.
Model Name Setting Method
Method for setting the model name after replacing internal components like the engine.
HDD Failure Diagnosis
Troubleshooting steps and error code explanations for diagnosing Hard Disk Drive failures.
Error Troubleshooting and Final Checks
E01 and E02 Error Diagnosis
Flowcharts for diagnosing and resolving E01 and E02 errors related to unrecognized or system data issues.
Playback Freeze Troubleshooting
Steps to diagnose and resolve issues where media playback freezes without an error message.
Factory Check and SMART Test
Procedures for performing factory checks, SMART tests for HDD diagnosis.
Disassembly Procedures
Component Removal Steps
Step-by-step guides for disassembling major components like the upper case, tray, boards, and HDD.
Block Diagrams
Overall System Block Diagrams
High-level block diagrams showing interconnections for various models and regions.
Board-Level Block Diagrams
Detailed block diagrams for specific boards like AV-133, AV-134, RD-066, FR-291, FL-184, and Power Block.
Schematic Diagrams
Frame Schematic Diagram
Overall schematic diagram showing the main blocks and their interconnections.
Signal Waveforms
Visual representations of key signal waveforms for various circuit boards.
AV-133 Board Schematics
IT Controller, IR, and Video/Audio Sections
Schematic diagrams for IT controller, IR receiver, and video/audio processing of AV-133 board.
AV-134 Board Schematics
IT Controller, IR, and Video/Audio Sections
Schematic diagrams for IT controller, IR receiver, and video/audio processing of AV-134 board.
Jack Connections
Schematic diagram showing the input/output jack connections for the AV-134 board.
Tuner Section
Schematic diagram for the tuner section of the AV-134 board.
FR-291 & FL-184 Board Schematics
FR-291 Board Schematic
Schematic diagram for the FR-291 board, including FL driver and line 2 inputs.
FL-184 Board Schematics
DV, USB, Remocon Receiver, Power SW
Schematic diagram for the FL-184 board, covering DV, USB, remote receiver, and power switch.
RD-066 Board Schematics
Power Block, Memory, SATA/IDE, HDMI/DV/USB, DVD Drive
Schematics for key blocks of RD-066 board including power, memory, interfaces, and DVD drive.
Switching Regulator Schematics
Regulator Schematics (SRV-2101EK, SRV-2058EK, SRV-2059WW)
Schematics for switching regulators SRV-2101EK, SRV-2058EK, and SRV-2059WW.
Printed Wiring Boards (PWBs)
PWB Layouts (FR-291, AV-133, AV-134, RD-066, FL-184)
Printed wiring board layouts for all major boards including FR-291, AV-133, AV-134, RD-066, and FL-184.
IC Pin Function Descriptions
IT Control IC (IC101) Pinout
Detailed pinout and function description for the IT Control IC on AV-133/134 boards.
AV Encoder/Decoder IC (IC1001) Pinout
Pinout and function description for the AV Encoder/Decoder IC on the RD-066 board.
Service Mode Operations
Preparing for Service Tool
List of required equipment for service, including a monitor and remote controller.
Service Mode Map
Service Mode Navigation Flowchart
Flowchart detailing how to access various service modes using the remote control.
Diagnostic Mode Procedures
Model Setting Procedure
Procedure to set the model name of the unit, essential after component replacement.
Service Mode Overview and Version Information
Overview of service mode functions and how to check version and HDD information.
RF Level Simplified Diagnosis
Subscreen for diagnosing RF signal levels, including frequency difference and AGC voltage.
HDD Information for Return Sheet
Detailed steps to obtain HDD information for return sheets, including SMART status and life time.
HDD Handling Cautions
Important warnings and guidelines for safely handling the HDD, including shock and electrostatic discharge precautions.
HDD Error Logging
Recording Error History Display
Procedure to display and interpret HDD error logs, including various error messages and their descriptions.
ATA/ATAPI History Logs
ATA/ATAPI History - ERR
How to display ATA/ATAPI error history, including command and status registers.
HDD Access Flow Confirmation
Guide to confirming HDD access flow and diagnosing errors by checking OK/NG results.
ATA/ATAPI Debugging and LD Judgment
ATA/ATAPI Debugging Screen & LD Deterioration
Accessing ATA/ATAPI debugging screens and performing LD deterioration judgment for writers.
LD Degradation Judgment
ATA/ATAPI DEBUG OSD (Subscreen 4)
Detailed procedure for judging LD degradation for CDs and DVDs, including conditions for updating values.
VR Recording Error History
History of VR Recording-related Errors
How to display and check VR recording-related error logs, including tips for analysis.
DV Service Mode Operations
DV Debugging Procedure
Steps to enter and use the DV service mode for debugging and checking device connections.
EPG Service Mode Operations
EPG Summary Screen
Procedure to enter EPG Service Mode for checking EPG data status and error logs.
EPG Service Mode Detail Screens
EPG Data Receive Error Details
Explanation of the detail screens accessed within EPG Service Mode, showing reception data and error logs.
Aging Mode Operations
Aging for DVD Discs
Steps for performing aging mode tests on DVD-RW, DVD-R, and DVD-R/+R discs for long-term reliability.
HDD Operations in Aging and Check Modes
Aging for the HDD
Procedure for aging the HDD, including data erasure, recording, and playback tests.
HDD Check Mode Procedure
Steps to enter HDD Check Mode to diagnose potential HDD errors.
Setup Related Menu Operations
Firmware Downloading Procedure
Procedure for downloading firmware, required after replacing major components or if errors occur.
Area-Specific Channel Setting
Steps to set broadcast reception channels, especially for troubleshooting flickering or sync issues.
OSD Filter Setting Adjustment
OSD Filter Setting (Subscreen 4)
Procedure for adjusting the OSD filter to correct flickering characters on the monitor.
Video System Adjustments
Video Output Level Checks
Methods to check video output levels for standard signal compliance.
S-Video and Component Video Checks
Methods to check S-Video and Component video outputs for signal amplitude and color accuracy.
Scart Video Output Checks
Methods to check Scart video output levels for PAL standard compliance and color accuracy.
Repair Parts List
Exploded Views and Overall Section
Visual exploded views showing assembly and parts for the overall unit.
Chassis Section Parts
Exploded view and parts list focusing on the chassis and internal structural components.
Electrical Parts List
Comprehensive lists of components like capacitors, diodes, ICs, connectors, fuses, transistors, and resistors.
Revision History
Document Revision Details
Document revision history showing version, date, and release status.
