SERVICE MANUAL
Ver. 1.0 2008.04
System
Laser: Semiconductor laser
Channel coverage:
AEP, UK, Russian model
PAL (
B/G, D/K, I)/SECAM (L)
TE
VHF: E2 to E12, R1 to R12, F2 to
L 13942296513
F10, Italian A to H, Ireland A to J,
South Africa 4 to 11, 13
UHF: E21 to E69, R21 to R69, B21 to
B69, F21 to F69
CATV: S01 to S05, S1 to S20, France
B to Q
HYPER: S21 to S41
The above channel coverage merely ensures
the channel reception within these ranges. It
does not guarantee the ability to receive
signals in all circumstances. The channels
that can be received differ depending on the
country/region.
Channel coverage:
Canadian, E model
NTSC
VHF: 2 to 13
UHF: 14 to 69
CATV: A8 to A1, A to W, W+1 to W+84
Video reception: Frequency
synthesizer system
Audio reception: Split carrier system
Aerial out: AEP, UK, Russian model
Antenna out: Canadian, E model
75-ohm asymmetrical aerial socket
Timer: Clock: Quartz locked/Timer
www
indication: 24-hour cycle (digital)
Video recording format: MPEG-2,
MPEG-1
Audio recording format/applicable
.
bit rate: Dolby Digital 2 ch
256 kbps/128 kbps (in EP, SLP, and
SEP mode), PCM
9-883-980-11
http://www.xiaoyu163.com
(AEP)
Inputs and outputs
LINE 2
LINE OUT: Canadian, E model
(AUDIO): Phono jack/2 Vrms/10 kilohms
(VIDEO): Phono jack/1.0 Vp-p
(S VIDEO): 4-pin mini DIN/Y: 1.0 Vp-p,
C
: 0.3 Vp-p (PAL)
C: 0.286 Vp-p (NTSC)
LINE 2
LINE IN 1/2/3: Canadian, E model
(AUDIO): Phono jack/2 Vrms/more than
22 kilohms
(VIDEO): Phono jack/1.0 Vp-p
(S VIDEO): 4-pin mini DIN/Y: 1.0 Vp-p,
C: 0.3 Vp-p (PAL)
C: 0.286 Vp-p (NTSC)
LINE 3 – TV: 21-pin
AEP, UK, Russian model
CVBS OUT
S-Video/RGB OUT (upstream)
LINE 1/DECODER: 21-pin
AEP, UK, Russian model
CVBS IN/OUT
S-Video/RGB IN
Decoder
DV IN: 4-pin/i.LINK S100
DIGITAL OUT (COAXIAL): Phono
jack/0.5 Vp-p/75 ohms
COMPONENT VIDEO OUT
(Y, P
AEP, UK, Russian model
(Y, P
Phono jack/Y: 1.0 Vp-p,
P
/C
B
x
ao
u163
G-LINK*: mini jack
y
HDMI OUT: HDMI™ Connector
i
Home Electronics Network Company
http://www.xiaoyu163.com
RDR-HX680/HX780/HX785/
2 9
8

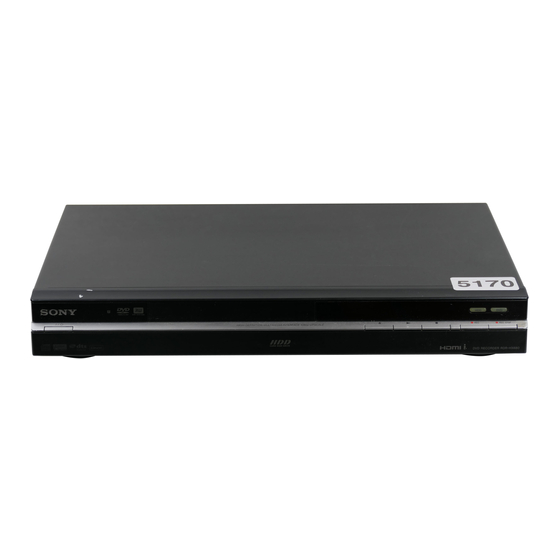

Photo: RDR-HX780
RMT-D246A
(AEP, UK, Russian)
SPECIFICATIONS
OUT: AEP, UK, Russian model
Q Q
3
6 7
1 3
1 5
IN: AEP, UK, Russian model
/C
, P
/C
):
B
B
R
R
, P
):
Canadian, E model
B
R
: 0.7 Vp-p, P
/C
: 0.7 Vp-p
B
R
R
co
.
Sony Corporation
HX980/HX1080
9 4
2 8
RMT-D246A/D249P/D250P
AEP Model
RDR-HX680/HX780/HX785/HX980/
Canadian Model
UK Model
E Model
Australian Model
Russian Model
Singapore Model
Thai Model
RDR-HX780/HX980
USB:
USB jack Type A (For connecting
digital still camera, Memory card
reader, USB memory and HDD
camcorder)
USB jack Type B (For connecting
0 5
8
2 9
9 4
2 8
PictBridge-compatible printers)
General
Power requirements: 220-240 V AC,
50/60 Hz
Power consumption:
43 W AEP, UK, Russian model
42 W Canadian, E model
Dimensions (approx.):
430 ⋅ 66.5 ⋅ 286.5 mm (width/height/
depth) incl. projecting parts
Hard disk drive capacity:
RDR-HX680/HX780/HX785:
160 GB
RDR-HX980: 250 GB
RDR-HX1080: 500 GB
Mass (approx.): 4.4 kg
Operating temperature: 5ºC to 35ºC
Operating humidity: 25% to 80%
Supplied accessories:
Mains lead (1)
Aerial cable (1)
Audio/video card (1) Canadian, E model
Re
mote commander (remote) (1)
Set top box controller (1)*
R6 (size AA) batteries (2)
* RDR-HX780/HX785/HX980/HX1080
AEP model only
Specifications and design are subject to
m
change without notice.
