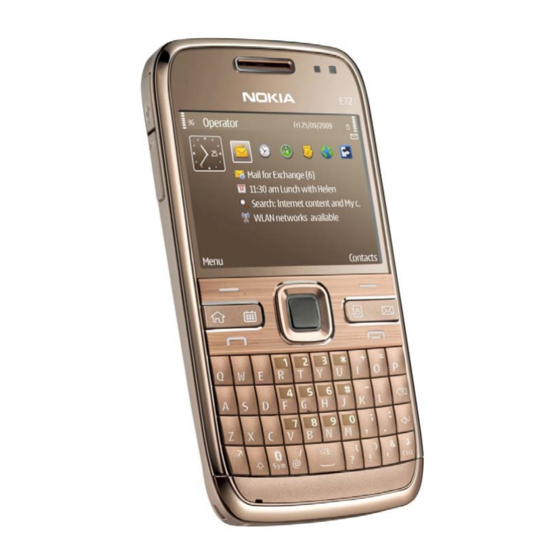

Nokia E72 RM-530 Service Manual

1
SERVICE MANUAL
Level 1&2
RM-529 / RM-530
Transceiver characteristics
Band:
GSM/EDGE 850/900/1800/1900
WCDMA/HSDPA/HSUPA 850/1900/2100 or
900/1900/2100
Main display:
320 x 240 QVGA 2.36" 16million colors, TFT active
matrix
Camera:
5 Mpix digital camera with 5 x zoom
Operating System:
S60 3
rd
Symbian OS9.3
Connections:
WLAN, Bluetooth 2.0 EDR, 3.5 mm Nokia Audio
connecor, High-Speed 2.0 Micro-USB, Micro SD card
(4GB in sales package)
Transceiver with - battery pack
Talk time
GSM:
12 h 30 min
Note:
Talk times are dependant on network parameters and
phone settings
Confidential  Copyright © 2009 NOKIA  All rights reserved
Nokia E72 RM-529 / RM-530
Service Manual Level 1&2
Edition Feature Pack 2 (S60 3.2.3)
Standby
GSM:
492 h
Version 1.0 ISSUE 1
