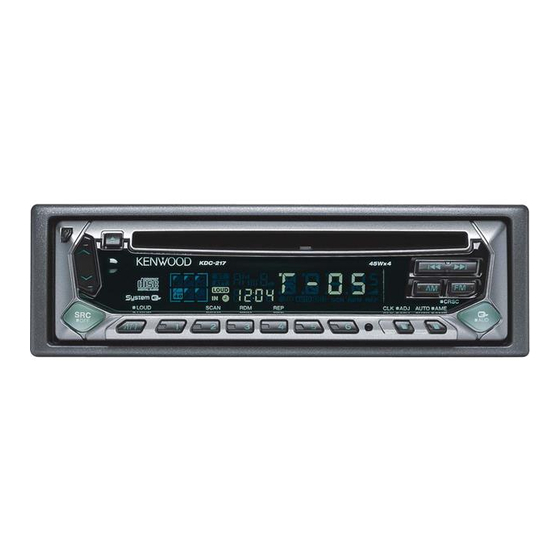

Kenwood KDC-217 Service Manual

CD RECEIVER
KDC-2019/2019V/217/217S
/219/29MR
/2020/3020/4020
SERVICE MANUAL
The CD mechanism infomation is not in this sarvice manual.
Please, refer to sarvice manual X92-4030-0x (B51-7867-00).
Panel assy
(A64-2544-02): KDC-219
(A64-2545-02): KDC-2019
(A64-2546-02): KDC-29MR
OFF
Panel assy
(A64-2566-02): KDC-217
(A64-2695-02): KDC-217S
OFF
∗
DC cord
(E30-4783-05)
(E30-4784-05)
Mounting hardware assy
(J21-9641-13)
∗
Depends on the model. Refer to the parts list.
(A64-2547-02): KDC-2020
(A64-2548-02): KDC-4020
(A64-2680-02): KDC-3020
(A64-2711-02): KDC-2019V
CD MD-Changer Control
KDC-XXXX
COMPACT
DIGITAL AUDIO
LOUD SCAN RDM REP
KDC-XXXX
COMPACT
DIGITAL AUDIO
LOUD SCAN RDM REP
Plastic cabinet assy
(A02-1486-13)
Lever
(D10-4589-04)x2
© 2001-12 PRINTED IN JAPAN
B51-7874-00 ( N ) 1754
CD mechanism extension cord : W05-0618-00
Escutcheon
(B07-3054-02): KDC-2019/2019V
KDC-219/2020
(B07-3055-02): KDC-29MR
KDC-3020/4020
CRSC
CLK ADJ AUTO AME
M. RDM
AUD
Escutcheon
(B07-3054-02): KDC-217/217S
CRSC
CLK ADJ AUTO AME
AUD
∗
Remote controller assy
(A70-2024-05)
Screw set
(N99-1719-05)
∗
Stay
(J54-0606-04)
∗
Screw set
(N99-1610-15)
