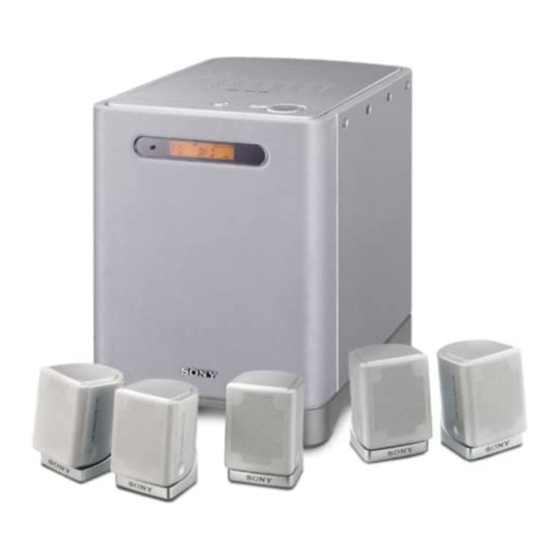

Sony SA-WBE1 Service Manual

HT-BE1/SA-WBE1/SS-BE1
SERVICE MANUAL
Ver. 1.3 2005. 05
The HT-BE1 system consists of one unit
of SA-WBE1 and five units of SS-BE1.
This system incorporates Dolby* Digital and Pro Logic Surround and
the DTS** Digital Surround System.
* Manufactured under license from Dolby Laboratories.
"Dolby," "Pro Logic," and the double-D symbol are trademarks of
Dolby Laboratories.
Confidential unpublished works. © 1992-1997 Dolby Laboratories. All
rights reserved.
** Manufactured under license from Digital Theater Systems, Inc. US Pat.
No. 5,451,942 and other worldwide patents issued and pending. "DTS"
and "DTS Digital Surround" are trademarks of Digital Theater Systems,
Inc. © 1996 Digital Theater Systems, Inc. All rights reserved.
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION:
With 6 ohm loads, both channels driven, from 120 – 10,000 Hz; rated 19
watts per channel minimum RMS power, with no more than 10 % total
harmonic distortion from 220 milliwatts to rated output.
SA-WBE1 (subwoofer)
Max. output
Subwoofer: 30 W (6 ohms)
Front: 15 W + 15 W (6 ohms)
Center*: 15 W
Rear*: 15 W + 15 W
* Depending on the sound field settings and the source, there may be no sound output.
Speaker system Bass reflex type
Speaker unit 130 mm (5
215 × 271 × 302 mm (8
Dimensions (approx.)
(w/h/d, not including the projecting parts)
Mass (approx.)
US, CND model: 6.3 kg (13 lb 15 oz )
AEP, UK, SP, MY model: 6.4 kg (14 lb 2 oz )
SS-BE1 (satellite speakers)
Speaker system Closed box type
Speaker unit 50 mm (2 inches ) dia. cone type
Rated impedance 6 ohms
61 × 82 × 65.5 mm (2
Dimensions (approx.)
Mass (approx.) 175 g (7 oz)
Sony Corporation
9-874-031-04
2005E04-1 Audio Group
© 2005. 05 Published by Sony Engineering Corporation
SA-WBE1

SPECIFICATIONS

inches) dia. cone type
1/8
× 10 × 12 inches)
1/2 3/4
× 3 × 2
inches) (w/h/d)
1/2 1/4 5/8
SS-BE1
General
Power requirements
US, CND, MX model: 120 V AC, 60 Hz
AEP, UK model: 230 V AC, 50/60 Hz
SP, MY model: 220-240 V AC, 50/60 Hz
Power consumption
US model: 60 W
1.0 W (at the Power Saving Mode)
CND, MX model: 75 W
1.0 W (at the Power Saving Mode)
AEP, UK, SP, MY model: 45 W
0.3 W (at the Power Saving Mode)
Operating temperature 5°C to 35°C (41°F to 95°F)
Operating humidity 5 % to 90 %
Speaker cords (3 m (10 ft) × 3, 8 m (26 ft) × 2)
Supplied accessories
Optical digital cord (1) (US, CND, SP, MY model)
Coaxial digital cord (1) (AEP, UK model)
Remote commander (remote) RM-BE1 (1)
Size AA (R6) batteries (2)
Design and specifications are subject to change without notice.
• Abbreviation
CND : Canadian model
SP : Singapore model
MY : Malaysia model
MX : Mexican model
