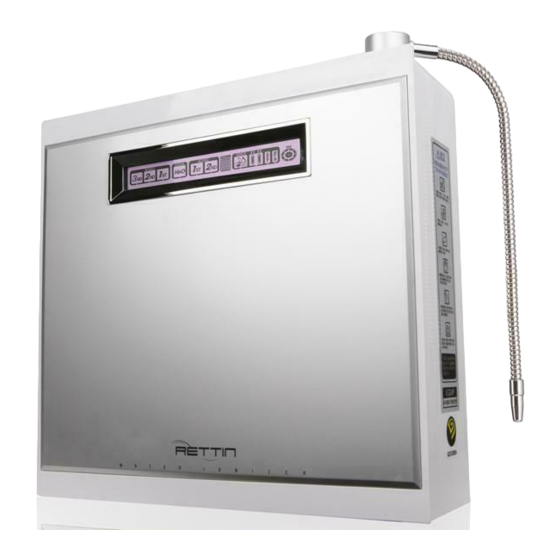

- Page 1 Tyent Water Ionizer User’s Manual MMP Series Products MMP-7070 MMP-7070 TURBO MMP-9090 TURBO EXTREME MMP-11 TURBO EXTREME P a g e...
-
Page 2: Table Of Contents
Table of contents To Our Valued Customers .....................3 Precautions Before Drinking ..................4 Precautions and Warnings ...................5 Water Ionizer MMP Series Unit Specifications ...............9 Product Features ......................10 Package Contents ......................12 Tools you will Need .......................13 Unit Overview ........................14 How to Install the Unit ....................15 Water Hose Installation ....................17 ……….……………………………………………………….18 Initial stage of installation... -
Page 3: To Our Valued Customers
(Keep the manual handy for easy reference.) A. Tyent Australasia is not responsible for any accidents due to the improper use of this machine. B. Tyent Australasia is not responsible for any malfunctions due to the improper use of this machine. -
Page 4: Precautions Before Drinking
12. Never drink acidic water. 13. It is recommended that you use municipal water as source water (raw water). DO NOT well water before calling TYENT AUSTRALASIA at 1300-665- 636 as this could void the warranty. P a g e... -
Page 5: Precautions And Warnings
Precautions and Warnings Safety precautions are provided for the safe and proper use of this product and prevent unexpected danger or possible damage. Make sure you will be familiar with the safety precautions for the proper use of the product. In the case where raw water isn't used over a long period, lock the raw water Valve and pull the power cord out. - Page 6 Do not place a vessel filled with water, pharmaceuticals, food and small objects on this product. If introduced into the product, may cause electric shock or fire. In the event that abnormal noise, or burning smell or smoke is generated from the product, immediately unplug the power connector and contact our service centre.
-
Page 7: Safety Precautions
Safety Precautions Safety precautions are provided for the safe and proper use of this product and prevent unexpected danger or possible damage. Make sure you will be familiar with the safety precautions for the proper use of the product. Cleaning Pull the power cord out and clean it. - Page 8 Use purified or filtered water, not alkaline or acidic water as supply water to the fishbowl containing goldfish and tropical fish that may die due to a changed environment. Installation Do not install this product near heat appliances. Never place a candlelight or cigarette on this product.
-
Page 9: Water Ionizer Mmp Series Unit Specifications
Water Ionizer MMP Series Unit Specifications MMP-7070 MMP7070 T MMP9090 TX MMP11 TX Specification Model Name MMP 7070 MMP 7070 MMP 9090 MMP 11 TURBO TURBO EX TURBO EX Purifying Mode TM Filtration Mode Rated Voltage 110-240 a.c. 50/60 Hz... -
Page 10: Product Features
Product Features This product features a combination of Taeyoung's highly advanced technology, elegant design and advanced electronic control unit, providing ease of operation and excellent performance. P a g e | 10... - Page 11 Every Automatic Safety Diagnostic Function. 6 months is best for optimal performance. Alter the installation of the TYENT unit, a Sensible and elegant design. This unit safety diagnostic procedure follows to check uses a compact and elegant design to performance.
-
Page 12: Package Contents
Package Contents P a g e | 12... -
Page 13: Tools You Will Need
P a g e | 13... -
Page 14: Unit Overview
Unit Overview Make sure you are familiar with the parts and features of this unit, and carefully read the user’s manual and other important information. P a g e | 14... -
Page 15: How To Install The Unit
How to Install the Unit 1: Lock the main valve on the water pipe. 2: Separate the tap from the water pipe 3: Turn the adapter to allow it to be fitted in the water pipe. 4: Assemble the tap back into the adapter. 5: Connect the valve to the adapter before connecting the water inlet hose to the nipple. - Page 16 To make the best functionality, there may be some changes without notices. P a g e | 16...
-
Page 17: Water Hose Installation
Water Hose Installation 1: Place the product on the planned installation location, and turn the alkali water outlet tube clockwise to the water outlet unit positioned on the top of the product to allow for assembling. 2: Put each steam elbow to be fitted in the raw water inlet fitting and acidic outlet fitting on the rear of the product. -
Page 18: Initial Stage Of Installation
Initial stage of installation 1: When the product is installed and power is applied to it, a melody comes in and the product gets ready for use in water - purifying mode. Backlight starts to blink 2: When the targeted icon is selected in water - purifying mode, auto cleaning is performed once for about 15 seconds at the time of initial water outflow and then water is extracted from the... - Page 19 Directions for Selecting Functions 1: Drinking Water Mode Selection Light Alkaline Water 2: Water Outflow The selected icon flickers during water outflow. If the selected icon isn't pressed once more, the product automatically stops after a 5 minute period of water flow. 3: Water Outflow Stop Select the flickering drinking water icon *If you select a function make sure to use your fingers in lightly touching the icons on the LCD...
-
Page 20: Lcd Display And Touch Pad Overview
LCD Display and Touch Pad Overview Make /sure to be familiar with designations for different product parts and carefully read about operating guide and other information. P a g e | 20... - Page 21 Notices TY Series: If the Alkaline water (drinking water, cooking water and functional water) and purified water icons are selected, the blue black light is turned on. On the other hand, if the acidic water (face washing water and cleaning water) is selected, the yellow back light is turned on. The yellow back lights notify you to avoid drinking acidic water.
-
Page 22: Directions For Product Use
Directions for Product Use Cleansing Reaction Alkaline water is strong enough to push body wastes out. It actively serves to pass your urine, evacuate your bowels and makes you perspire, which is normal reaction to recovery. As such, you are recommended to keep drinking alkaline water. P a g e | 22... - Page 23 Volume Control 1: Change the mode to the system setting mode by pressing the setting icon on the LCD for three seconds. -Back Light: (TY Series: Amber, MMP Series: White) -Voice Message: “it is the system setting mode" 2: When the voice icon (Volume Control) is pressed for 1.5 seconds, a melody sounds and the voice icon blinks.
- Page 24 Power Mode Set-Up 1: Press the setting icon on the LCD for three seconds to change to the setting mode. -Back Light: (TY Series: Amber, MMP Series: White) -Voice Message: “it is the system setting mode" 2: Power level by function can be controlled by pressing the power level icon to which power changes for 1.5 seconds.
- Page 25 Cleaning Icon (TY Series, MMP - 5030, 5050) Allows for cleaning the inside of the product in auto/ manual mode. Auto cleaning Functions (15 Seconds) -Performed during water outflow after more than 12 hrs. of non-operation. -Performed after 30 litre or larger water outflow - Performed during water outflow after power is turned on again.
- Page 26 12 hrs. of non-operation. -Performed after 30 litre or larger water outflow - Performed during water outflow after power is turned on again. Cleaning is notified by the fact that the cleaning icon and back light flicker before auto cleaning is performed.
- Page 27 Attention When a delay of filter replacement occurs, alkaline water and acidic water may not be extracted. Status Display Icon -Alkaline pH Level Display: Indicates pH Levels - Voltage Level Display (System Setting Function): Indicates Property Levels for different types of mode...........................
-
Page 28: Turbo Function
Turbo Function The TURBO Function, only in the MMP-7070 Turbo MMP-9090 Turbo Extreme models, allows you to create strong alkaline and acidic water. These types of water are ONLY to be used for cleaning, sanitizing and disinfecting purposes. NEVER DRINK THESE TYPES OF WATER. - Page 29 P a g e | 29...
-
Page 30: Filter Configuration
Filter Configuration Recommended Filter Replacement cycle: 3,600L This product is composed of a high-performance purifying filter and an advanced control device. It delivers reliability due to stringent system control and manufacturing. ACF Activated Carbon Fibre Removes various smells from water and make water tasty. Info: Life of filter can vary greatly due to usage, water pressure, water quality and seasons. - Page 31 2nd: TM - Ceramic Filter Recommended Filter Replacement cycle: 3,600L ACF Activated Carbon Fibre Removes various smells from water and make water tasty. TM Ceramic This filter rich in inorganic minerals provides excellent heat conductivity, and facilitates dissolution of nutrients thereby speeding up metabolism.
-
Page 32: Filter Replacement
Filter Replacement Replace filters according to the filter replacement cycle notified by the voice announcement. Delay in filter replacement can cause the product to function improperly. 1: Unplug the power cord to ensure safety. 2: Open the filter cover. 3: Turn the target filter counter clockwise for separation. - Page 33 6: Plug in the power cord. 7: Initialize the filter you intend to replace in the System Setup Mode 8: The functional water you selected comes out of the water outlet. P a g e | 33...
-
Page 34: Recommendations For Using This Unit
Recommendations for Using this Unit Make sure to be well familiar with storage and special usage to enjoy better effects in your daily life. Directions for Alkaline Water Application Drink Alkaline water 2 to 3 cups per day as drinkable water. If there are no symptoms, you are recommended to drink alkaline water at higher pH levels. - Page 35 Disinfection Effect: Soak tableware, kitchen board, dish cloth etc. in strong acidic water for about 20 to 30 minutes. Cleaning your Tyent Unit Your Tyent MMP Series Water Ionizer has 2 modes of cleaning: Manual and Automatic. Manual cleaning function lasts 15 seconds and can be manually set to clean the unit whenever desired.
- Page 36 How to Change the Fuse 1. Unplug the power cord. 2. Locate the fuse cap on the lower back of the unit and turn it counter-clockwise to remove Pull out the blown fuse and insert a new fuse. Replace the fuse cap. Important Information Please request from a qualified service repair person to replace the fuse with a manufactured fuse.
-
Page 37: Troubleshooting
Troubleshooting P a g e | 37... - Page 38 Water For Life www.tyentaustralia.com.au info@tyentaustralasia.com.au 1300-665- 636 P a g e | 38...
