Videx ART.317 User Manual

Two wire videokit esvk series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ART.317 and is the answer not in the manual?

Questions and answers

Related Manuals for Videx ART.317

Summary of Contents for Videx ART.317

  • Page 3: Table Of Contents

    Index INDEX ................................... 3 ART.4333 ..................................4 ......................................4 PEAKER UNIT WITH BUILT IN CAMERA ART.3181 ..................................6 VX2300 2 W ..................................6 IGITAL INTERCOM FOR YSTEM ART.3381 ..................................8 VX2300 2 W ..................................8 IGITAL VIDEOPHONE FOR YSTEM ART.5488 ..................................11 VX2300 ...................................11...

  • Page 4: Art.4333

    Dip-switch to carry out the following programming: - Door station ID (switches from 1 to 3); - Door opening time (switch 4); - Conversation time (switch 5); System connection terminals; AVAILABLE MODULE VERSIONS Art.4333-1, 4333-1/color Art.4333-1D, 4333-1D/color BUTTONS LAYOUT Art.4333-1, 4333-1/color Art.4333-1D, 4333-1D/color PrtCode:ESVK_ENG_1.3 – Pag.4/24 23/10/2008 Rev.1.3...
  • Page 5 Mirror stainless steel (standard) and Anodized aluminium (add /a after the product code) Power Supply Supplied by the BUS line Working Temperature -10 +50ºC CUSTOMER SUPPORT INFORMATION All Countries Customers UK Customers VIDEX Electronics S.p.A. VIDEX Security LTD www.videx.it – technical@videx.it www.videx-security.com Tel.+39 0734 631669 Tech Line 0191 224 3174...

  • Page 6: Art.3181

    Two Wire Videokit ESVK Series Art.3181 Digital intercom for VX2300 2 Wire System Fig.1 Fig.2 DESCRIPTION Intelligent intercom with “door open/intercommunicating call” push button (key), bus relay (Art.2305) activation button (dot), “privacy ON-OFF” switch, “door open” and “privacy on” LEDs and call tone volume control (3 levels). To avoid a BUS arrest in case a user forgot the handset picked up, each op- eration must be executed within 10 seconds after the handset is picked up otherwise to perform an operation it is necessary to hang up the handset and pick up it again.
  • Page 7 Call tone volume and privacy ON-OFF switch Power Supply Supplied by the BUS line Working Temperature -10 +50ºC CUSTOMER SUPPORT INFORMATION All Countries Customers UK Customers VIDEX Electronics S.p.A. VIDEX Security LTD www.videx.it – technical@videx.it www.videx-security.com Tel.+39 0734 631669 Tech Line 0191 224 3174...

  • Page 8: Art.3381

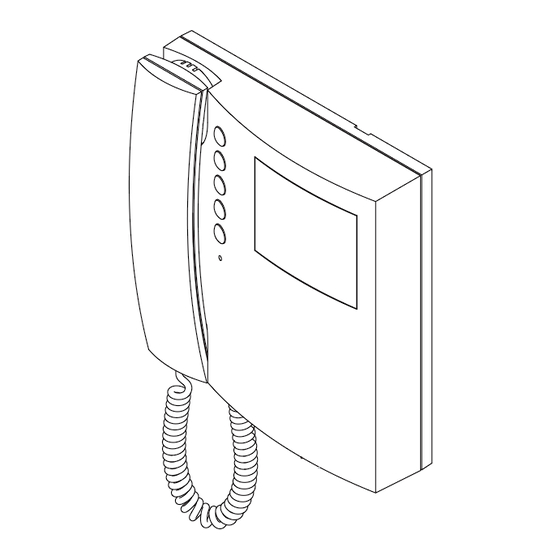

    Two Wire Videokit ESVK Series Art.3381 Digital videophone for VX2300 2 Wire System Fig.1 Fig.2 DESCRIPTION Intelligent videophone with 4” flat screen B&W monitor with “door open” and “camera recall” push buttons, bus relay enable button, service button, “pri- vacy ON-OFF” button plus “privacy on” and “door open” LEDs. Controls: 3 levels of call tone volume (both main and local) plus contrast and brightness. The videophone is available also in color version Art.3481 that uses a 3,5”...
  • Page 9 Two Wire Videokit ESVK Series PROGRAMMING After each programming operation carried out through dip-switches or jumpers it is necessary to temporary disconnect the videophone from the BUS or from the power supply if locally powered. NUMBER OF RINGS The number of rings can be set to 3 (factory preset) or 6. To change the number of rings proceed as follow: - Unplug the flat cable from the pcb connection board;...
  • Page 10 Call tone volume, contrast and brightness Power Supply Supplied by the BUS line Working Temperature -10 +50 ºC CUSTOMER SUPPORT INFORMATION All Countries Customers UK Customers VIDEX Electronics S.p.A. VIDEX Security LTD www.videx.it – technical@videx.it www.videx-security.com Tel.+39 0734 631669 Tech Line 0191 224 3174...

  • Page 11: Art.5488

    Two Wire Videokit ESVK Series Art.5488 Hands Free Videomonitor specific for VX2300 130,00 Fig.1 Fig.2 DESCRIPTION An intelligent Hands-free (surface or flush mounting) video monitor employing a colour 3.5” active matrix LCD display, with push buttons for “door open/intercommunicating call”, “answer/camera recall”, “privacy on/off”, “BUS relay activation” and 2 service buttons plus 4 LED’s associated with 4 main buttons.
  • Page 12 Two Wire Videokit ESVK Series PROGRAMMING The videomonitor setup consists of the following settings: - Number of Rings; - Unit address (1..127, switches 1 to 7 of SW1); - Bus Termination (open or close, switch 8 of SW1); - Intercommunication mode (between apartments or extension switch 1 of SW3); - Extension address (1..4, switches 2,3 of SW3);...
  • Page 13 Two Wire Videokit ESVK Series PRIVACY UNLIMITED – SW2.1 If this switch is set to OFF (default), the privacy duration is defined from the switches 2 and 3 programming.If this switch is set to ON, the privacy duration is unlimited and the service can be enabled or disabled only by the relative button.
  • Page 14 Call tone volume, contrast and hue Power Supply Supplied by the BUS line Working Temperature -10 +50 ºC CUSTOMER SUPPORT INFORMATION All Countries Customers UK Customers VIDEX Electronics S.p.A. VIDEX Security LTD www.videx.it – technical@videx.it www.videx-security.com Tel.+39 0734 631669 Tech Line 0191 224 3174...

  • Page 15: Art.317

    Outputs amplification (3 levels) Power Supply Supplied by the BUS line Working Temperature -10 +50ºC CUSTOMER SUPPORT INFORMATION All Countries Customers UK Customers VIDEX Electronics S.p.A. VIDEX Security LTD www.videx.it – technical@videx.it www.videx-security.com Tel.+39 0734 631669 Tech Line 0191 224 3174...

  • Page 16: Art.2301/4

    Power Supply From specific power supply or from the bus Working Temperature -10 +50ºC CUSTOMER SUPPORT INFORMATION All Countries Customers UK Customers VIDEX Electronics S.p.A. VIDEX Security LTD www.videx.it – technical@videx.it www.videx-security.com Tel.+39 0734 631669 Tech Line 0191 224 3174...

  • Page 17: Art.2305

    Working Temperature -10 +50ºC Dry contacts relay Max 24Vac/dc 5A CUSTOMER SUPPORT INFORMATION All Countries Customers UK Customers VIDEX Electronics S.p.A. VIDEX Security LTD www.videx.it – technical@videx.it www.videx-security.com Tel.+39 0734 631669 Tech Line 0191 224 3174 Fax +39 0734 632475...

  • Page 18: Art.2321-2321/P

    Voltage amplification (3 levels) Power Supply 230Vac Working Temperature -10 +50ºC CUSTOMER SUPPORT INFORMATION All Countries Customers UK Customers VIDEX Electronics S.p.A. VIDEX Security LTD www.videx.it – technical@videx.it www.videx-security.com Tel.+39 0734 631669 Tech Line 0191 224 3174 Fax +39 0734 632475...

  • Page 19: General Directions For Installation

    The following table specify values of resistance, capacity and maximum distance allowed for several kinds of cables (capacity and resistance values are referred to 100 metres of cable). Cable Type Section (mm Resistance (Ohm) Capacity (nF) *Maximum Distance (meters) VIDEX TW2 0,75 200m CAT5 UTP 0,22 Std Telephone Cable 0,28...
  • Page 20 ESVK-1 ONE WAY TWO WIRE VIDEO DOOR ENTRY KIT PrtCode:ESVK_ENG_1.3 – Pag.20/24 23/10/2008 Rev.1.3...
  • Page 21 CESVK-1/ECLIPSE ONE WAY TWO WIRE VIDEO DOOR ENTRY KIT PrtCode:ESVK_ENG_1.3 – Pag.21/24 23/10/2008 Rev.1.3...
  • Page 22 ESVK-2 TWO WAY TWO WIRE VIDEO DOOR ENTRY KIT PrtCode:ESVK_ENG_1.3 – Pag.22/24 23/10/2008 Rev.1.3...
  • Page 23 CESVK-2/ECLIPSE TWO WAY TWO WIRE VIDEO DOOR ENTRY KIT PrtCode:ESVK_ENG_1.3 – Pag.23/24 23/10/2008 Rev.1.3...
  • Page 24 Factory - Office VIDEX ELECTRONICS S.p.A. Via del lavoro,1 63020 MONTEGIBERTO (AP) - ITALY Phone: (+39) 0734 - 631669 Fax: (+39) 0734 - 632475 www.videx.it e-mail: info@videx.it Main UK office: VIDEX SECURITY LTD 1 Osprey Trinity Park Trinity Way London E4 8TD...
