INSTALLATION
&
OPERATING INSTRUCTIONS
Serial Number of Heater: ____________ Model: ___________________

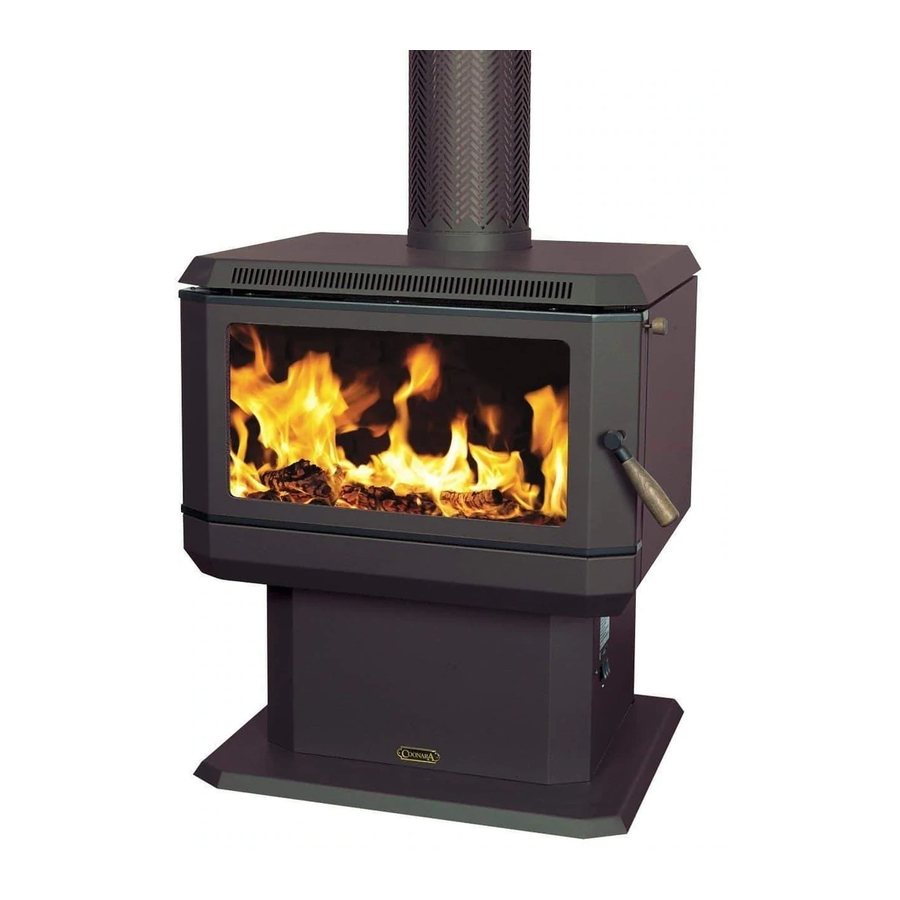

Coonara
WOODHEATERS ARE MANUFACTURED BY
SHAMIC SHEETMETAL
SHAMIC SHEETMETAL
SHAMIC SHEETMETAL
SHAMIC SHEETMETAL
(AUST.) PTY. LTD.
PO BOX 8, KILSYTH, VIC. 3136
PH: 03 9737 5300 FAX: 03 9761 6455
Revised: 10/05/2008
1
Printed: 22/04/2009
Advertisement
Table of Contents
Related Manuals for Coonara MIDI
Summary of Contents for Coonara MIDI
-
Page 1: Operating Instructions
INSTALLATION & OPERATING INSTRUCTIONS Serial Number of Heater: ____________ Model: ___________________ Coonara WOODHEATERS ARE MANUFACTURED BY SHAMIC SHEETMETAL SHAMIC SHEETMETAL SHAMIC SHEETMETAL SHAMIC SHEETMETAL (AUST.) PTY. LTD. PO BOX 8, KILSYTH, VIC. 3136 PH: 03 9737 5300 FAX: 03 9761 6455... - Page 2 The installer is required to issue a certificate of compliance on the installation; - ensure you obtain this ! Coonara Woodheaters should not be modified in any way! Do not operate the heater with the door open for extended periods.
- Page 3 This heater has been tested and approved to AS 2918:1990 using a Flue Kit. Shamic Shamic Shamic Shamic Flue installation instructions are included with all Flue Kits. Clearance to combustible surfaces: Freestanding Models: Minimum Reference CCF3 MIDI MIDI CMF2 BAYWINDOW BAYWINDOW distance mm Symbol ASHPAN ASHBED Standard Installation...
- Page 4 Fan operation Coonara heaters are fitted with a 3-speed fan (optional on CCF3) for efficient distribution of warmth. Always operate the fan when the appliance is used in the medium and high fire settings. When operating at low burn, turn off or down to the lowest stetting.
- Page 5 12 hours of burn time. The curing process may produce a light smoke and odour, which is normal. Should this occur, ventilate the room by opening a window. Replacement parts Coonara Consult your Dealer regarding any of the normally replaceable components of the heater ie.
- Page 6 NOTE: Do not use abrasive cleaners or harsh solvents (such as methylated spirits). Should you experience scuffing or scratching, or discolouration due to incomplete curing, the high temperature Coonara paint can be touched up and matching spray cans may be purchased from your dealer.
- Page 7 Door Adjustment The door is unlikely to become misaligned unless it is knocked and attempts at adjustment may Coonara cause rather than solve a problem. Always consult your dealer before attempting any adjustment to the door. 1. Remove door by opening fully and lifting door up off the hinge. (BWIA model also requires removal of top grill to allow door to lift off.
- Page 8 1. Lift rear of baffle assembly. 2. Pull forward. 3. Lower to firebox floor & remove. MODELS: CCF3 & CCI3 Lift the front of the baffle plate clear of the front supports. Remove baffle plate by lifting up and forward and through the firebox opening.
- Page 9 TABLE 1: FIREWOOD SPECIES AND THEIR PROPERTIES Firewood Forest Type Heat Density Splitting Ignitability Coals Sparks Avail. Species Avail. (Dry Air) Per Unit Ib/ft3/ Volume Kg/m3 Mallee Roots Mallee Difficult Poor Excellent Good Belah, Buloke Mallee 70 / Good Poor Excellent Limited Box-Ironbark...
- Page 10 (1) year from date of purchase, excluding door glass. If this Coonara heater is found to be defective in material or workmanship Shamic will repair or replace such defects in the Coonara heater at Shamic’s option in accordance with Coonara’s warranty policy during the period on this warranty.
