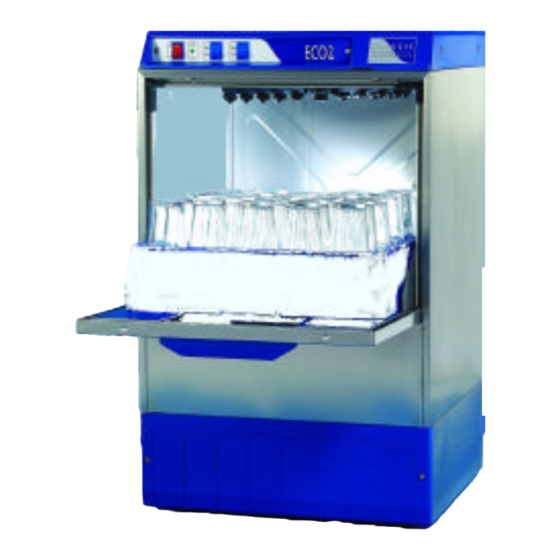

- Page 1 SERVICE MANUAL & SPARE PARTS LIST ECO 1 & ECO2 H500 ECO1NL & ECO2NL GLASSWASHERS H500NL DISHWASHER E1 & E2 GLASSWASHERS H5 DISHWASHER CLASSIC HOUSE, AIRFIELD INDUSTRIAL ESTATE, HIXON , STAFFORDSHIRE ST18 DECEMBER 2003...
- Page 3 CLASSIC GLASS & DISHWASHING SYSTEMS LTD ECO 1 & 2 Stainless Steel Top Machines ECO 1 & 2 & H500 NEW LINE E1 & E2 & H5 ( 24 VOLT MACHINES) TABLE OF CONTENTS Table of Contents Page 1 Cabinet & Cover Parts Drawings Page 2 Cabinet &...
- Page 5 CLASSIC GLASS & DISHWASHING SYSTEMS LTD CABINET & COVERS ECO1 ECO2 H500 CABINET NEW LINE ONLY 11.2.4 12.2.4 12.2.4 CABINET FOR S/STEEL TOP PLASTIC CORNER - OUTER 7.2.15 7.2.15 7.2.15 RUBBER CORNER - INNER 7.2.14 7.2.14 7.2.14 BALL CATCH ASSEMBLY 7.2.10...
-
Page 7: Rinse System
CLASSIC GLASS & DISHWASHING SYSTEMS LTD RINSE SYSTEM ECO1 ECO2 H500 RINSE BOILER 7.9.1E 8.9.1E 8.9.1E DRAIN BOLT 7.9.5 7.9.5 7.9.5 WASHER 7.9.6 7.9.6 7.9.6 SEAL FOR ELEMENT 7.9.12 7.9.12 7.9.12 ELEMENT FOR BOILER 9.9.14 9.9.14 9.9.14 NUT FOR ELEMENT 7.9.13... - Page 9 CLASSIC GLASS & DISHWASHING SYSTEMS LTD WASH & JET SYSTEM ECO1 ECO2 H500 TOP BOSS 12.2.1/4A GASKET 12.2.2 TOP FLANGE 13.2.11/1 SCREW SC005A SELF TAP SCREW FOR ARMS 7.4.17 7.4.17 7.4.17 BUSH FOR CENTRE BOSS 11.1.9 11.1.9 11.1.9 BOTTOM SPINDLE 8MM 11.1.7/3...
- Page 13 CLASSIC GLASS & DISHWASHING SYSTEMS LTD WATER & WASTE SYSTEM ECO1 ECO2 H500 DRAIN PLUG - Gravity Drain - Pre 2000 7.10.1 7.10.1 7.10.1 DRAIN PLUG - Gravity Drain - Post 2000 7.10.1L 7.10.1L 7.10.1L DRAIN PLUG - Pump Drain - Pre 2000 7.10.10...
-
Page 15: Filter System
CLASSIC GLASS & DISHWASHING SYSTEMS LTD FILTER SYSTEM ECO1 ECO2 H500 LEFT SIDE SUPPORT PANEL 7.2.9/1 8.2.9/1 8.2.9/1 RIGHT SIDE SUPPORT PANEL 7.2.9/2 8.2.9/2 8.2.9/2 FRONT SUPPORT PANEL 7.2.9/3 8.2.9/3 8.2.9/3 PLASTIC FILTER TRAY 7.2.9 8.2.9 8.2.9 DRAIN PLUG - Gravity Drain - Pre 2000 7.10.1... - Page 17 7.6.3 GASKET FOR HOUSING 7.6.13B 7.6.13B 7.6.13B REAR HOUSING 7.6.14B 7.6.14B 7.6.14B DRAIN PUMP - OPTIONAL ON ECO 1/2 CUTOUT FOR BOILER HEATER 7.12.4/D 7.12.4/D 7.12.4/D CUTOUT FOR WASH TANK HEATER 7.12.2/DS 7.12.2/DS 7.12.2/DS * RINSE BOOSTER PUMP - EXTERNAL...
- Page 19 MODIFICATIONS CLASSIC HOUSE, AIRFIELD INDUSTRIAL ESTATE, HIXON , STAFFORDSHIRE ST18...
- Page 20 RINSE AID INJECTORS 7.7.0.1 / 7.7.0.1/1 MACHINE PRODUCTION From September 97 our supplier of rinse aid injectors have changed the design of the in & out end connections to improve the quality of fitting. The connection on the rinse tank has also been improved. Both ends of the injector and the rinse tank connection are now push on fit with a ridge, where a clip is fitted on the rinse tank and cable ties on the injector.
- Page 28 Technical Bulletin No. :07/22/02 ECO1NL / E1 WASH PUMPS 7.6.2 IMPELLOR Part No: 7.6.0/R Black Wash Pump Part No: 7.6.1R Part No: 7.6.3 Part No 7.6.14 For Remote Mounted Rinse-Aid HOUSING SHAFT REAR HOUSING Pump REMOTE TYPE SEAL KIT GASKET NOT SHOWN - 7.6.13B from July 2001 Some Wash Pumps Are ‘WHITE’...
- Page 29 Technical Bulletin No. :07/22/02 ECO2NL / E2 / H500NL / H5 WASH PUMPS 7.6.2 IMPELLOR Part No: 8.6.0/R Black Wash Pump Part No: 7.6.1R Part No: 7.6.3 Part No 7.6.14 For Remote Mounted Rinse-Aid HOUSING SHAFT REAR HOUSING Pump REMOTE TYPE SEAL KIT GASKET NOT SHOWN - 7.6.13B from July 2001 Some Wash Pumps Are ‘WHITE’...
- Page 31 DRAWINGS ECO 1 & 2 STAINLESS STEEL TOP CLASSIC HOUSE, AIRFIELD INDUSTRIAL ESTATE, HIXON , STAFFORDSHIRE ST18 December 2003 WO...
- Page 34 CIRCUIT DRAWINGS ECO1NL & ECO2NL & H500NL CLASSIC HOUSE, AIRFIELD INDUSTRIAL ESTATE, HIXON , STAFFORDSHIRE ST18 December 2003 WO...
- Page 36 BLUE WHITE BLUE WHITE WHITE WHITE WHITE WHITE ORANGE BLUE WHITE ORANGE...
- Page 39 BLUE WHITE BLUE WHITE WHITE WHITE WHITE WHITE ORANGE BLUE WHITE ORANGE...
- Page 40 Now when the machine is full of water it will operate when the door is opened and closed. The customer should wait for the machine to heat up and ready light is on before first using. CLASSIC will not cover warranty calls on results or foaming. WO 3/2002...
-
Page 41: Circuit Drawings
CIRCUIT DRAWINGS E1 - E2 - H5 CLASSIC HOUSE, AIRFIELD INDUSTRIAL ESTATE, HIXON , STAFFORDSHIRE ST18 December 2003 WO... - Page 42 CLASSIC GLASS & DISHWASHING SYSTEMS LTD E 1 & E 2 24 GLASSWASHERS - 24 Volt GLASSWASHERS ELECTRICAL SPARE PARTS All electrical items on this page are 24 volts MOTORS — CONTACTOR /RELAY COILS — SWITCHES—WATER VALVE CONT/50 4 PIN RELAY CONT/51 7.12.2/51...
- Page 51 CLASSIC GLASS & DISHWASHING SYSTEMS LTD H5 DISHWASHER - 24 Volt DISHWASHER ELECTRICAL SPARE PARTS All electrical items on this page are 24 volts MOTORS — CONTACTOR /RELAY COILS — SWITCHES—WATER VALVE CLM 211 CONT/50 PCB FOR SOAP PUMP 4 PIN RELAY CONT/51 7.12.2/52...
- Page 52 CLASSIC 24 RANGES OF GLASS & DISHWASHERS The first 3 pages are for training and identifying the interlock circuit. Page 1 Select Position Where you select a cycle by pressing the cycle switch. The switch will illuminate but will not start until the machine is up to temperature EXCEPT H7 with ‘4 MIN’...
-
Page 54: Wash Pump
CLASSIC GLASS & DISHWASHING SYSTEMS LTD Simple Fault Finding SYMPTOMS FAULT POWER AND SERVICES Red Light next to On/Off Switch Not on A: Not switched on at Wall Red Light next to On/Off Switch Not on B: Fuse Open Circuit in Plug or Fuse Box Red Light next to On/Off Switch Not on C: Fuse ( 1.6 amp)Open Circuit in Machine... - Page 55 PAGE 29...
