SERVICE MANUAL
Ver 1.1 2003. 12
Revision History
Revision History
How to use
How to use
Acrobat Reader
Acrobat Reader
Link
Link
SPECIFICATIONS
SPECIFICATIONS
SERVICE NOTE
SERVICE NOTE
DISASSEMBLY
DISASSEMBLY
• For INSTRUCTION MANUAL, refer to SERVICE MANUAL, LEVEL 1 (987627441.pdf).
• Since a service is provided only for the MD-097 BLOCK ASSY (A-7111-651-A) and not for the
single MD-097 board, complete.
• Reference No. search on printed wiring boards is available.
On the MD-097, SS-174T and VC-310 board
This service manual provides the information that is premised the circuit board replacement service and not intended repair
inside the MD-097, SS-174T and VC-310 board.
Therefore, schematic diagram, printed wiring board, waveforms, mounted parts location and electrical parts list of the MD-097,
SS-174T and VC-310 board are not shown.
The following pages are not shown.
Disassembly ...................................... Pages 2-30 to 2-32
Schematic diagram ........................... Pages 4-27- to 4-78
Printed wiring board .......................... Pages 4-97 to 4-106
Waveforms .......................................... Pages 4-109 to 4-110
DCR-DVD200/DVD200E/

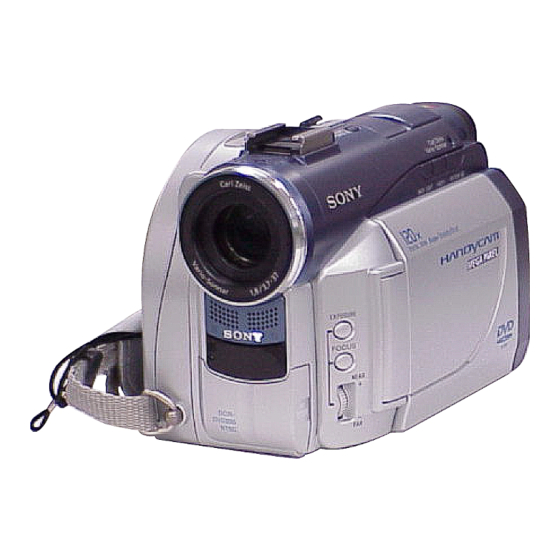

Photo: DCR-DVD300
BLOCK DIAGRAMS
BLOCK DIAGRAMS
FRAME SCHEMATIC DIAGRAMS
FRAME SCHEMATIC DIAGRAMS
SCHEMATIC DIAGRAMS
SCHEMATIC DIAGRAMS
Mounted parts location ......................... Pages 4-113 to 4-116
Exploded views .................................... Pages 5-13 to 5-14
Electrical parts list ................................ Pages 5-19 to 5-34
Digital Video Camera Recorder
DVD300
RMT-820
LEVEL
US Model
DCR-DVD200/DVD300
Canadian Model
Korea Model
DCR-DVD200
AEP Model
UK Model
East European Model
Hong Kong Model
Australian Model
DCR-DVD200E
E Model
DCR-DVD200/DVD200E
PRINTED WIRING BOARDS
PRINTED WIRING BOARDS
REPAIR PARTS LIST
REPAIR PARTS LIST
