Nokia RM-520 Service Manual

1
SERVICE MANUAL
Level 1&2
RM-519 / RM-520
Transceiver characteristics
Band:
GSM 900/1800 (RM-519)
GSM 850/1900 (RM-520)
Main Display:
128x160 TFT 1.8", 65 000 colors
Secondary Display:
128x160 TFT 1.36", black and white
Camera:
1.3 mpix (1024 x 1280 pixel )
Operating System:
S40
Connections:
Bluetooth 2.1 +EDR
Nokia 2.5 mm audio connector
Charging plug, 2 mm
EF III for SW Flashing
Transceiver with 850mAh BL-4CTbattery pack
Talk time
GSM:
Up to5 hours
Confidential  Copyright © 2009 NOKIA  All rights reserved

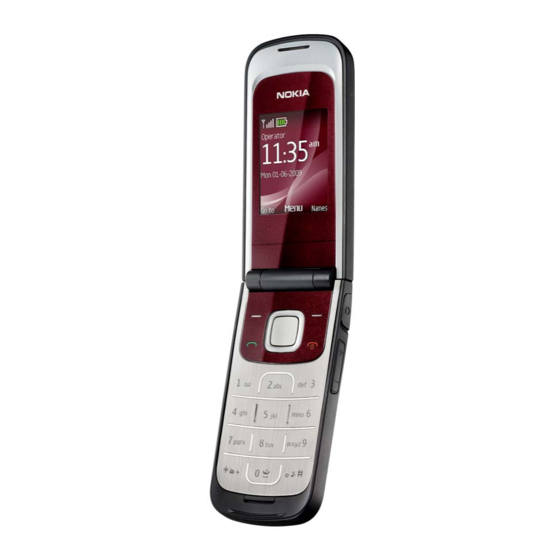

Nokia 2720 fold
RM-519 / RM-520
Service Manual Level 1&2
Standby Note
GSM: Talk times are
Up to 390 hours dependant on
network
parameters and
phone settings
Version 2.0 ISSUE 1
