Summary of Contents for Shelter Furnace SF2631

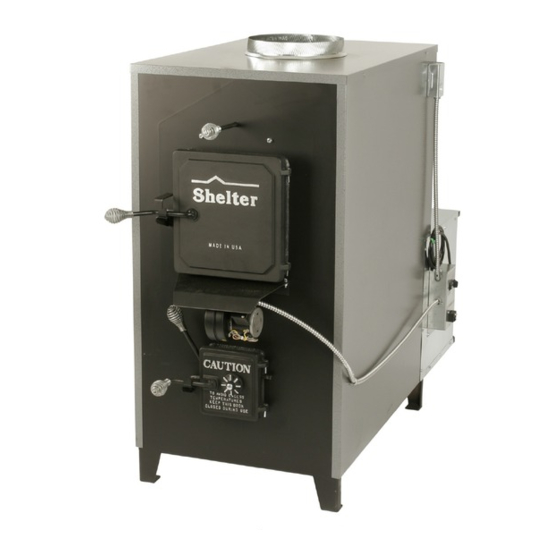

- Page 1 SHELTER FURNACE WOOD AND COAL BURNING INDOOR FURNACE MODELS: SF2626, SF2631, SF2639 Manufactured by: Shelter Furnace 10950 Linpage Place Saint Louis, MO 63132 1-800-875-4788 Tested to UL391 and MADE IN USA AUGUST 2014 CSA B366.1-2011 Revision IV Standards...
-
Page 2: Save These Instructions
Every effort has been made to ensure that your Shelter Furnace will arrive in perfect condition. Any visible damage should be noted on the freight bill at the time of delivery. If upon unpacking your Shelter Furnace you find damage has occurred during transit, notify your supplier immediately. -
Page 3: Table Of Contents
Draft Blower Creosote Formation Creosote Prevention Chimney Fire Warning Power Failure Furnace Diagram with Parts List Grate System Diagram - SF2626 Grate System Diagram - SF2631 Grate System Diagram - SF2639 Blower Motor Assembly Diagram Wiring Diagram Troubleshooting Warranty Information DOUBLE CHECK TO MAKE SURE YOU HAVE RECEIVED ALL OF THE REQUIRED COMPONENTS. -
Page 4: General Information
Forced Hot Air Circulation: The plenum size of your Shelter Furnace must not be reduced to less than 12 inches in diameter or 113 square inches, and must provide a minimum of 18 inches between the top of your Shelter Furnace and the main trunk connection. The plenum attached to the furnace must be constructed of metal. -
Page 5: Assembly Of Unit
1-800-875-4788 FOR FASTEST SERVICE, PLEASE DO NOT GO BACK TO THE STORE. STORE DOES NOT CARRY REPLACEMENT PARTS. NOTE: For your convenience your Shelter Furnace has been factory assembled and the electrical control assembly pre-wired. 1. Fasten the right and left side angle brackets to the 2. -
Page 6: Filter Box
3. Assemble the following parts using 6 #10 sheet metal screws. Both “B” and “C” panels should fit inside of “D” and “A” panel flanges. Attach “D” (bottom panel) to “B” (side panel with electric) and “C” (side panel). After the top and sides are assembled, attach ”A”... -
Page 7: Draft Blower
5. Mount the forced draft blower with 3 ¼-20 x 3/4 inch bolts (provided). 1/4 - 20 Bolt 1/4 - 20 Screw 1/4-20 Screw 6. Attach the draft blower shield to the bracket that is mounted on the front of the furnace, above the draft blower, using the ¼-20 x ¾... -
Page 8: Fan Limit / Electrical Control Center
Regardless of your choice of chimney type, for models SF2626 and SF2631, a minimum 6-inch diameter chimney is needed. For model SF2639, a minimum 8-inch diameter chimney is needed. - Page 9 If using this method, a 6-inch stainless liner should be used for models SF2626 and SF2631; an 8-inch stainless liner should be used for the SF2639.
-
Page 10: Duct Runs
WARNING- RISK OF FIRE: • Do not operate with flue draft exceeding .08 water column inches (19.9 Pa). • Do not operate with fuel loading or ash removal doors open. • Do not store fuel or other combustible materials within marked installation clearances. •... -
Page 11: General Operation
Types of Wood to Use: We advise using only dry, seasoned hardwoods in your Shelter Furnace rather than high resin woods such as pine. Firewood should be cut at least one full season prior to the time of its intended use, for optimum heat output. Firewood should be stacked to provide a free flow of air between the logs, thus allowing more rapid seasoning of the wood. -
Page 12: First Wood Fire
Finally adjust the wall thermostat and draft blower cover to a comfortable setting. Ash pan must remain out of furnace during operation. NOTE: Your new Shelter Furnace is capable of producing a very high BTU output. Do not fuel your furnace to capacity upon initial firing. -
Page 13: Loading Wood
Finally, due to the wide variety of temperature ranges during the winter, you may experience periods when it is not necessary to fully load the fire chamber in order to maintain an overnight burn. Your Shelter Furnace will operate at the highest efficiency by adding fuel in amounts needed to maintain comfortable temperatures in your home. -
Page 14: Disposal Of Ashes
Remove the ashes from your Shelter Furnace at least once a day, or as often as necessary to ensure the ashes do not accumulate to the height of the grates. If ash build-up occurs at grate level, it will cause premature failure of the grate system, voiding the warranty on the grates. -
Page 15: Creosote Prevention
• Call your local fire department. Power Failure: In case of power failure, to prevent your Shelter Furnace from over-heating and causing damage to the electrical components, follow these steps: • Ensure that the bypass rod is pulled out, allowing heat to go up the chimney. -
Page 16: Furnace Diagram With Parts List
TOP PANEL SMOKE DAMPER ROD LEFT SIDE PANEL FAN SHIELD DOOR HINGE PIN FUEL DOOR ASSEMBLY AIR CONTROL DAMPER KNOB PARTS LIST TOTAL COMMON ITEM SF2626 ITEM SF2631 ITEM SF2639 ITEM ITEM QUANTITY ITEM DESCRIPTION NUMBERS NUMBERS NUMBERS NUMBERS Ash Door Assemply... -
Page 17: Grate System Diagram - Sf2626
Grate System Diagram - SF2626 5hw.1 5hw.3 5hw.2 SF2626 PARTS LIST ITEM PART NUMBER ITEM DESCRIPTION TOTAL QTY 7 & 7a SFSCH Handle Shaker Control 1hw.3 IS25HLN Screw .25-20 NC x 1 HH 1.hw.2 ISHH25 Nut .25-20 NC Lock Hex 1.hw.1... -
Page 18: Grate System Diagram - Sf2639
Grate System Diagram - SF2639 5hw.1 SF2639 PARTS LIST 5hw.2 5hw.3 ITEM PART NUMBER ITEM DESCRIPTION TOTAL QTY SFSCH Handle Shaker Control 1hw.3 IS25HLN Screw .25-20 NC x 1 HH 1.hw.2 ISHH25 Nut .25-20 NC Lock Hex 1.hw.1 CP13 Cotter Pin SFCBL Control Bar Link Shaker SFCB3... -
Page 19: Wiring Diagram
WIRING DIAGRAM Wiring Diagram INDOOR FURNACE FAN LIMIT CONTROL ORANGE YELLOW WALL THERMOSTAT BLACK YELLOW RELAY 3 SPEED SWITCH 120V AC/24V AC TRANSFORMER RED (LOW) DRAFT MOTOR BLUE (MED) 120V AC ON/OFF SWITCH POWER SUPPLY BLACK (HI) WHITE BLACK WHITE BLACK GREEN 3 SPEED BLOWER... -
Page 20: Troubleshooting
Troubleshooting Problem: Circulation blower runs constantly. NOTE: Make sure the white button on fan limit control is pulled out and in the “auto” position. Remedies: Possible Causes: • “Off”setting on fan limit control is • Remove cover on fan limit control and check for the proper setting. low. - Page 21 Problem: Draft blower will not run. NOTE: Verify that the wall thermostat is in the “HEAT” position, and make sure batteries are installed. Remedies: Possible Causes: • Defective rocker switch on control • Replace rocker switch. center. • Defective wall thermostat. •...
- Page 22 Problem: Draft blower runs constantly. Remedies: Possible Causes: • Defective wall thermostat. • This can be checked by turning the thermostat to a lower setting than the temperature in your home. If the draft blower continues to run, the thermostat may be defective. Replace if necessary. •...
- Page 23 Problem: Down draft on chimney caused by one or more of the following. Remedies: Possible Causes: • Cast iron damper in “CLOSED” • Open damper. position. • Flue has a cold spot which • This problem may occur in factory built flues because the insulation inhibits exhaust discharge from has settled or a seam has ruptured.
- Page 24 Problem: Odor detected in home during initial firing. Possible Causes: Remedies: • There is an oily film that remains • The odor should disappear after a few hours of usage. on the steel after the manu- facturing process. Firing the furance has raised the tempera- ture of the fire box to a level that is sufficient to vaporize the residue.
- Page 25 Problem: Bugs found in wood. Possible Causes: Remedies: • Wood has rotted or has been • Inspect the wood for obvious signs of insect infestation such as burrows or holes, avoid using if possible. Do not store wood indoors. laying around for an extended period of time.
-
Page 26: Warranty Information
This warranty will be rendered null and void if this part/unit exhibits symptoms of obvious over-firing, deliberate abuse or negligence, improper installation, or is used for commercial purposes. Finally, Shelter Furnace will not be responsible for any claim not stated in our warranty nor does any implied warranty extend beyond the limits stated above.
