Summary of Contents for Shelter Furnace SF4200

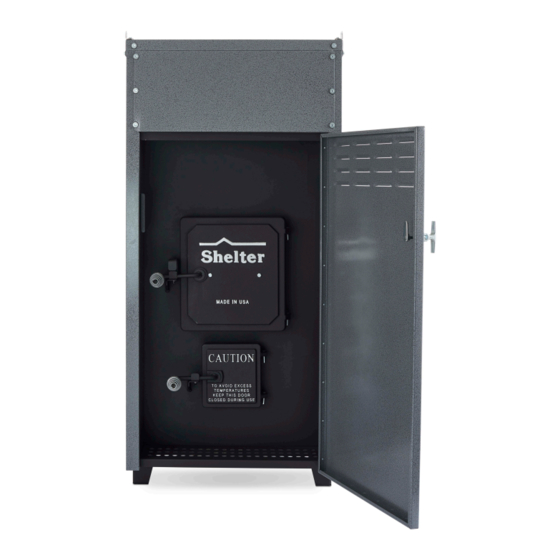

- Page 1 SHELTER FURNACE WOOD BURNING OUTDOOR FURNACE MODEL: SF4200 Manufactured by: Shelter Furnace Contains 10950 Linpage Place Proper Burn Saint Louis, MO 63132 Practices! 1-800-875-4788 Tested to UL391 and CSA B366.1-2011 and B415.1-2010 MADE IN USA October 2016 Standards...
- Page 3 • There should be no alteration of the Shelter Furnace in any way, as this will void the UL391 listing and affect the operation of the furnace. This will also void the warranty of the unit.
- Page 4 Shelter Furnace for use on this furnace. Be sure to complete and return your warranty card within 30 days of purchase in order to activate warranty coverage on your furnace.
-
Page 5: Table Of Contents
TABLE OF CONTENTS General Information Furnace Clearances and Operation Installing the Anchor Plate Chimney Location and Clearances Wood Storage and Care Furnace Installation Grounding Furnace Hot Air Duct and Cold Air Return Installation Burying Ductwork Types of Installations Central Duct Connections Mobile Home Down Draft Furnace Connection No Ductwork Connection General Operation... -
Page 6: General Information
Your Shelter Furnace is designed to be either a supplemental or central heating source for your home. This wood burning furnace may be installed in parallel with a properly operating electric, gas or oil-fired central furnace, listed or certified in accordance with a nationally recognized safety standard, and within clearances specified on Shelter Furnace nameplate. -
Page 7: Furnace Clearances And Operation
IMPORTANT: Please keep in mind that different chimney manufacturers’ pipe will not interchange with other brands. A tube of high-temp silicone caulk is included with your furnace. Before using the silicone to install the anchor plate to the top of your Shelter Furnace, ensure the chimney you purchased will fit the anchor plate. -
Page 8: Installing The Anchor Plate
You must install the wall thermostat for the furnace to operate. When the wall thermostat calls for heat, the draft motor will engage, allowing combustion air to flow into the firebox. This causes a hotter fire, increasing the heat in the heat chamber. When the home reaches the selected temperature on the wall thermostat, it will disengage the draft motor and the fire in the firebox will reduce to a low burn until the thermostat calls for another heat cycle. -
Page 9: Chimney Location And Clearances
Chimney Location and Clearances: Requires Class “A” HT 2100 All Fuel 6” Chimney The furnace requires a minimum of 6 feet of chimney. When positioning the furnace, maintain the “10/2 Rule” for the chimney – In order to determine proper chimney height above the roof, measure from the side of the chimney horizontally. As you move up the chimney, the length of the measurement increases. -
Page 10: Wood Storage And Care
• Never use wet, unseasoned wood or wood exposed to a recent rainfall. Doing so causes a rapid accumulation of hazardous creosote, which is a proven cause of flue fires. • Never burn plastics, wood products containing glue, or wood that has been treated with chemical preservatives in your Shelter Furnace. The combustion of these substances may release harmful, toxic gases. -
Page 11: Grounding Furnace
Connect the 10 inch starter collar to the heat supply vent of the furnace. Connect the 12 inch starter collar to the cold air return on the back of the blower housing cover. Hot Air Duct and Cold Air Return Installation: Included with your Shelter Furnace:... -
Page 12: Burying Ductwork
10 inches round or 79 square inches. The Shelter Furnace must be installed with a cold air return system. The system must be a minimum of 12 inches to readily transfer the cold air back to the furnace. If desired, a cold air filter box may be constructed with a minimum opening of 225 square inches. -
Page 13: Types Of Installations
Both the hot air duct and the cold air return duct may be accessed through the floor in a mobile or modular home. In a mobile home with a down draft furnace, do not attach the hot air duct from the Shelter Furnace to the hot air plenum, doing so will cause the heat to... -
Page 14: Mobile Home Down Draft Furnace Connection
Split the hot air supply for the Shelter Furnace by using a “Y” and install one branch into each of the hot air ducts. Be sure both are pointing downstream. See diagram. -
Page 15: General Operation
Finally adjust the wall thermostat to a comfortable setting. NOTE: Your new Shelter Furnace is capable of producing a very high BTU output. Do not fuel your furnace to capacity upon initial firing. It’s recommended that you become thoroughly familiar with your Shelter Furnace before operating at full capacity. -
Page 16: Fuel Recommendations
For the SF4200 model, heat resistant gloves are recommended when loading the furnace. Only use dry, seasoned hardwoods in your Shelter Furnace rather than high resin woods such as pine. Firewood should be cut at least one full season prior to the time of its intended use for optimum heat output. Firewood should be stacked to provide a free flow of air between the logs; this allows... -
Page 17: Heat Dump And Fuse Link System
Draft Blower: The draft blower plays an important role in the operation of your Shelter Furnace. When the wall thermostat calls for heat, the draft motor turns on and supplies fresh air into the firebox producing a hotter fire, which in turn provides more heat in the heat chamber. The heat is then sent through the duct system throughout your home. -
Page 18: Creosote Prevention
For safety and efficiency, it is recommended that the chimney system be inspected and cleaned prior to each heating season. Power Failure: In case of power failure, to prevent your Shelter Furnace from over-heating and causing damage to the electrical components, follow these steps: • Make sure the ash door is closed. - Page 19 ALWAYS: • Locate the Shelter Furnace on a level, solid, non-combustible surface. • Follow local codes concerning installation requirements. • Connect power cord to a grounded 110 outlet. • Connect cold air return to the house. • Use Class “A” HT2100 All Fuel 6 inch chimney.
- Page 20 • DO NOT RELOCATE OR BYPASS ANY OF THE SAFETY CONTROLS IN THE ORIGINAL GAS/OIL/ELECTRIC FURNACE INSTALLATION. • DO NOT CONNECT TO ANY GAS FURNACE THAT HAS NOT BEEN CERTIFIED INITIALLY AS COMPLYING WITH CAN/CGA-2.3. • THE OPERATION OF THE GAS FURNACE MUST BE VERIFIED FOR ACCEPTABLE OPERATION BEFORE AND AFTER INSTALLATION OF THE ADD-ON APPLIANCE BY A GAS FITTER WHO IS RECOGNIZED BY THE REGULATORY AUTHORITY.
-
Page 21: Grate System Diagram
Grate and Fire Brick Diagrams SF4200 PARTS LIST ITEM PART DESCRIPTION FC000 ROLLER GRATE HANDLE ROLLER GRATE BASE ROLLER GRATE EXTENSION BASE ROLLER GRATE SUPPORT FC000 ROLLER GRATE FC000 ROLLER GRATE EXTENSION FIRE BRICK Blower Motor Assembly Diagram PARTS LIST... -
Page 22: Wiring Diagram
WIRING DIAGRAM Wiring Diagram OUTDOOR FURNACE FAN LIMIT CONTROL ORANGE YELLOW WALL THERMOSTAT BLACK YELLOW RELAY 120V AC/24V AC TRANSFORMER 120V AC BLACK POWER SUPPLY WHITE BLACK WHITE BLACK GREEN BLOWER DRAFT BLOWER MOTOR MOTOR... -
Page 23: Troubleshooting
Troubleshooting Problem: Bugs found in wood. Possible Causes: Remedies: • Inspect the wood for obvious signs of insect infestation such as • Wood has rotted or has been burrows or holes, avoid using if possible. Do not store wood indoors. laying around for an extended period of time. - Page 24 Problem: Draft blower will not run. NOTE: Verify that the wall thermostat is in the “HEAT” position, and make sure batteries are installed. Remedies: Possible Causes: • Defective wall thermostat. • This can be checked by turning the thermostat to a temperature setting that is higher than the temperature in your home.
- Page 25 Problem: Rapid accumulation of creosote in furnace and flue. Possible Causes: Remedies: • Completely avoid using if at all possible. If hardwoods are not • Use of high resin wood, such available, fuel the furnace with smaller loads. This will cause as pine. the thermostat to call for more heat more often, which will initiate the running of the draft blower. Consequently, the fires will be hotter, thereby reducing the accumulation of creosote.
- Page 26 Problem: Circulation blower vibrates during operation. Possible Causes: Remedies: • Check squirrel cage alignment and position so that it does not drag • Screw on squirrel cage is not on the housing during rotation, then tighten the screw sufficiently to tight.
- Page 27 Problem: Down draft on chimney caused by one or more of the following. Remedies: Possible Causes: • There is an obstruction outside • Remove obstruction. chimney, such as a tree. • Increase chimney height. • Flue is located too close to the peak of the roof or does not rise above it to provide the proper draft.
-
Page 28: Warranty Information
• Name and address of the dealer where the unit was purchased Shelter Furnace warranties the cast iron grates and firebox to be free of defects in material and workmanship for five years to the original purchaser. Intentional misuse or abuse causing burn through of the cast iron components voids all warranties. Over firing the furnace will cause the front face to crack and is not covered by the warranty.
