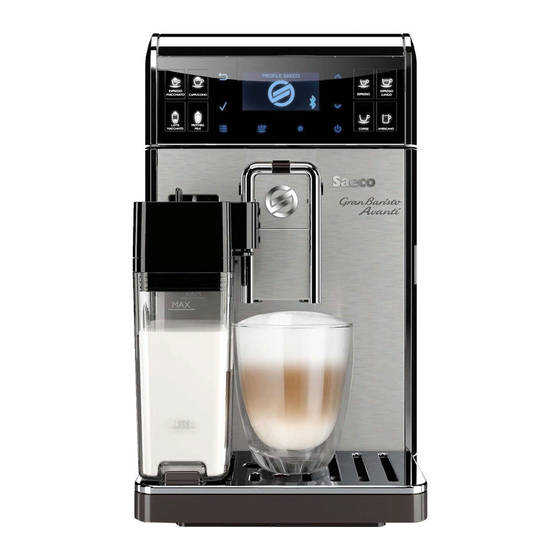

Philips Saeco Avanti Service Manual

Coff ee Machine
Service
Service
Service Service
TECHNICAL INFORMATION
Power supply and output:
Temperature monitoring:
Safety system:
Coff ee heat exchanger output: Stainless steel
for coff ee, hot water and steam dispensing
Dimensions: W x H x D in mm:
Stand-by power consumption
Weight:
Water tank capacity:
Coff ee bean hopper capacity:
Dreg drawer capacity:
Heating time:
Water circuit fi lling time:
Power consumption:
Automatic dosage:
Material
Housing
Beans container
Water tank
Dreg drawer
All parts of this document are the property of Saeco International Group.
All rights reserved. Th is document and all the information herein is provided without liability deriving from any errors or omissions. Furthermore, no part may be reproduced, used or
collected, except where express authorisation has been provided in writing or through a contractual agreement.
Published by Saeco International Group
GranBaristo Avanti
Service Service
240 V~ 50 Hz 1900W - 230 V~ 50/60 Hz 1900 W 120 V~ 60 Hz 1300 W
(NTC) variable resistor sensor - transmits the value to the electronic card
2 thermostats at 190°C one shot
(230 V~) 1900 W - (120 V~) 1300 W - (100 V~) 1100 W
210 x 360 x 460 mm
< 0,5W
13 kg
1.7 l
270 g. of coff ee beans
20
Approx. 45 sec.
Approx. 15 sec Max. on fi rst fi lling cycle
During heating phase- approx. 5.6 A
Dose adjustment controlled by the electronic system
ABS/ABS+PMMA/METAL
ABS
SAN
ABS
Subject to modifi cation
GranBaristo
Manual Manual
Rev. 02 July 2014
EN 4219 400 00022
2013-Sept.-02
