Toa BG-1060 Operating Instructions Manual

MIXER POWER AMPLIFIERS

TABLE OF CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS ..... 2
2. SAFETY PRECAUTIONS ............................ 3
3. GENERAL DESCRIPTION .......................... 5
4. FEATURES .................................................. 5
5. NOMENCLATURE AND FUNCTIONS
Front ............................................................. 6
Rear .............................................................. 7
6. INPUT CONNECTIONS ............................... 8
7. OUTPUT CONNECTIONS ........................... 9
8. PLUG-IN MODULE INPUT PORT
8.1. Module Installation .............................. 10
8.2. Module Selector Switch Settings ......... 10
9. EQUIPMENT SETTINGS
9.1. Mute Function ...................................... 10
9.1.1. Mute operation A ....................... 11
9.1.2. Mute operation B ....................... 11
Thank you for purchasing TOA's Mixer Power Amplifier.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
OPERATING INSTRUCTIONS

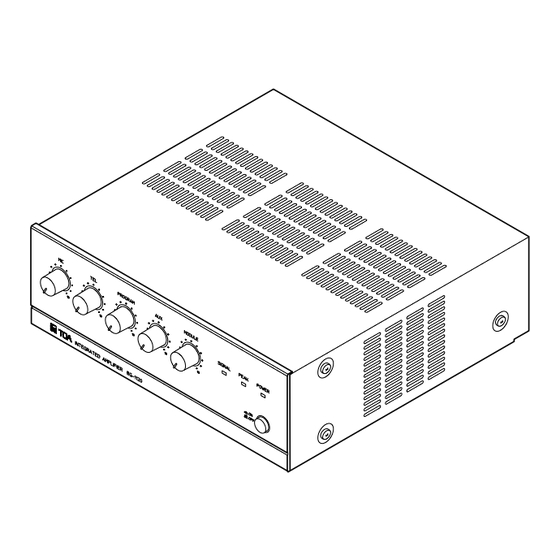

This figure represents the BG-1120.
9.2. TEL Input Impedance Selection .......... 12
9.3. AUX, PROGRAM, MODULE (BGM)
Output Selection .................................. 12
9.4. Phantom Power On/Off Setting
for Microphone Input ........................... 12
9.5. Changing MIC and PROGRAM Input Types
9.5.1. MIC input ................................... 13
9.5.2. Program input ............................ 13
10. INSTALLATION ......................................... 13
11. RACK MOUNTING BRACKET ATTACHMENT ... 14
12. CONTROL SETTINGS ............................... 14
13. DIMENSIONAL DIAGRAM ........................ 15
14. BLOCK DIAGRAM .................................... 15
15. SPECIFICATIONS ..................................... 16
Accessories ................................................ 16
Optional products ....................................... 16
BG-1015
BG-1030
BG-1060
BG-1120
