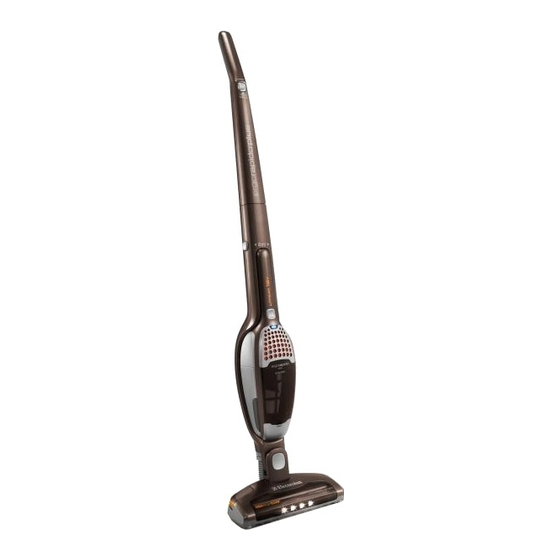

Related Manuals for Electrolux Ergorapido 2in1 ZB2943
Summarization of Contents
Unpacking and Assembly
Check Parts and Fit Handle
Verify contents and assemble the handle, ensuring the cable is not jammed.
Secure the Handle
Tighten the locking screw to secure the handle using a screwdriver or coin.
Charging Station Setup and Placement
Position charging station, connect adaptor, manage cable, and consider wall mounting options.
Charging
Charging Indicator Lights
Indicator lights show charging status; it stays on briefly when fully charged.
Charging Time and Battery Maintenance
Full charge takes up to 16 hours; keep unit charged to maintain battery performance.
Battery Capacity Display
Blue Indicator Light Meanings
Blue lights indicate battery level: >75%, 75-25%, <25%, or empty (blinking).
Red Indicator Light Meanings
Red light indicates overheating or motor overload; clean filters/brush roll.
Full Charge and Troubleshooting Lights
LEDs turn off when charged; red/blue blinking requires consulting page 9.
Vacuuming Floors and Carpets
Maintaining Nozzle and Brush Roll
Keep nozzle wheels and brush roll clean to prevent floor scratching.
Starting and Adjusting Vacuum Power
Start the vacuum using the on/off button and adjust power level via the lower button part.
Vacuuming Furniture and Car Seats
Removing and Using the Hand Unit
Release hand unit and attach crevice nozzle or brush for specific cleaning tasks.
Operating the Hand Unit
Start or stop the hand unit by pushing the start button.
Emptying and Cleaning the Dust Container and Filters
Quick Dust Container Emptying
Open lid and use another vacuum hose to clean the dust container opening.
Cleaning Dust Container and Filters
Remove filters, empty dust container, clean both parts. Reassemble after drying.
Fine Filter Cleaning Method
Release container, pull/release spring 5-6 times to dislodge dust from the fine filter.
Detailed Filter and Container Cleaning
Shake or rinse parts in warm water (not dishwasher); ensure all parts are dry before reassembly.
Cleaning Brush Roll with BRUSHROLLCLEAN™ Function
Brush Roll Cleaning Requirements and Limitations
Clean brush roll, hose, wheels if blocked. Function may not remove thick threads or fibers.
Operating the BRUSHROLLCLEAN™ Feature
Ensure cleaner is on a hard surface. Press the foot button for approx. 5 seconds until dirt is removed.
BRUSHROLLCLEAN™ Overheating Protection
Function Safety Mechanism Explanation
The function deactivates automatically if activated for over 30 seconds to prevent overheating.
Handling Function Interruption and Reset
If brush stops or lights change, release button. Recharge unit for 10 min to reset the function.
Manual Brush Roll Cleaning
Removing the Brush Roll
Turn off cleaner, push release button to free hatch cover, then remove the brush roll.
Cleaning and Reassembling the Brush Roll
Lift out and clean brush roll; use a sharp object for threads. Reassemble ensuring free spin.
Cleaning Hose and Wheels
Hose Removal and Cleaning Procedure
Loosen catch, pull hose, remove debris. Re-attach hose and lock catch.
Wheel Cleaning and Removal Process
Carefully remove wheels with a screwdriver, clear debris, and reassemble.
Removing Batteries
Battery Removal Precautions and Steps
Run batteries flat, disconnect from charger. Undo screws, lift hood carefully, cut cables, tape metal areas.
Proper Battery Disposal
Place removed batteries in suitable packaging for disposal according to regulations.
Safety Precautions
General Usage and Storage Guidelines
Adult use only, domestic environment, store dry, use authorized service. Keep away from children.
Prohibited Usage Environments and Conditions
Avoid wet areas, flammable gases, sharp objects, fine dust, direct sunlight, and excessive heat.
Safety Warnings for Operation
Do not tamper with batteries, always use filters, avoid touching the brush roll during operation.
Consumer Information
Servicing, Repairs, and Cord Replacement
Take unit to authorized Electrolux service for faults. Qualified personnel must replace damaged cords or chargers.
Product Disposal and Recycling
Do not discard as household waste. Contact local authorities for proper recycling of electrical equipment.
