Gigaset A130/AL130A/A230/AL230A

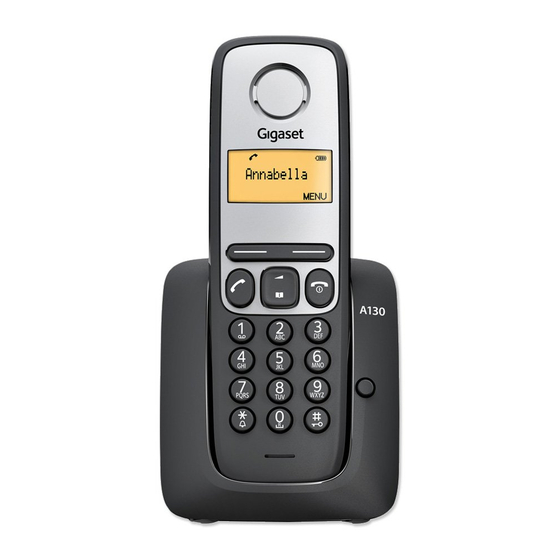

The handset at a glance
1 Charge status of the batteries:
= e V U
(flat to full)
=
flashes: batteries almost flat
e V U
flashes: charging
2 answer machine icon
3 Display keys
4 End call key and On/Off key
5 Talk key/Handsfree key
(handsfree mode A230/AL230A
only)
u
6 Control key (
)
7 Directory key (press down on the
control key)
8 Key 1
Open the answer machine /
network mailbox
9 Star key
Ringers on/off (press and hold); with
an open connection: switch from pulse
dialling to tone dialling (press briefly)
10 Key 0/recall key
Consultation call (flash): press and hold
11 Hash key
Keypad lock on/off (press and hold);
toggles between upper/lower case
and digits; inserts a dialling pause
(press and hold)
12 Microphone
A130/AL130A
A230/AL230A
1
±
V
1
2
11.12.
11:56
INT
MENU
3
4
5
6
7
8
9
10
11
12
1
Please note
New messages in the calls list/answer machine list/network mailbox list (
indicated in the display by the message New messages.
Display keys:
Pressing a key launches the function that appears above that key in the display.
Display Function when pressed
INT
Call other registered handsets
MENU
Open main/submenu (see menu overview
¢
page 16).
"
Go back one menu level.
U
Scroll up/down or adjust volume with
T
Move cursor to left/right with
˜
Backspace deletes one character at a time.
OK
Confirm menu function or save entry.
Gigaset service contact numbers:
For personal advice on our range of products and for repairs or guarantee/warranty claims
call:
Service Centre UK:
0845 0318190
Service Centre IE:
0818 200 033
Please have your proof of purchase ready when calling.
¢
page 8) are
¢
page 11.
u
.
u
.
(local call cost charge)
