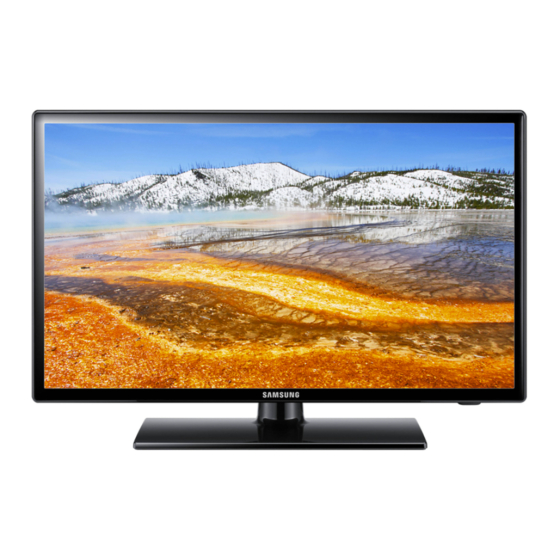

Samsung UN50EH5000 User Manual

4000/4050/5000/5050/5070 series

Hide thumbs Also See for UN50EH5000:

User manual (17 pages)

Manual del usuario (17 pages)

User manual (2 pages)

Table Of Contents

Table of Contents

Quick Links

Still image warning

Avoid displaying still images (such as jpeg picture ﬁles) or still image elements

(such as TV channel logos, panorama or 4:3 image format, stock or news bars

at screen bottom etc.) on the screen. Constant displaying of still pictures can

cause ghosting of LED screen, which will affect image quality. To reduce risk of

this effect, please follow below recommendations:

• Avoid displaying the same TV channel for long periods.

• Always try to display any image on full screen, use TV set picture format

menu for best possible match.

• Reduce brightness and contrast values to minimum required to achieve

desired picture quality, exceeded values may speed up the burnout process.

• Frequently use all TV features designed to reduce image retention and screen

burnout, refer to proper user manual section for details.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls)

to ensure proper ventilation.

Failing to do so may result in ﬁre or a problem with the product due to an

increase in the internal temperature of the product.

✎

When using a stand or wall-mount, use parts provided by Samsung

Electronics only.

If you use parts provided by another manufacturer, it may result in a

problem with the product or an injury due to the product falling.

✎

The appearance may differ depending on the product.

✎

Be careful when you contact the TV because some parts can be

somewhat hot.

Installation with a stand.

4inches

BN68-04499D-00

LED TV

user manual

Installation with a wall-mount.

4inches

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung

products, please contact the SAMSUNG customer care center.

MEXICO

01-800-SAMSUNG(726-7864)

ARGENTINA

0800-333-3733

0800-124-421

BRAZIL

4004-0000

CHILE

800-SAMSUNG(726-7864)

COLOMBIA

01-8000112112

COSTA RICA

0-800-507-7267

DOMINICA

1-800-751-2676

ECUADOR

1-800-10-7267

EL SALVADOR

800-6225

GUATEMALA

1-800-299-0013

HONDURAS

800-7919267

JAMAICA

1-800-234-7267

NICARAGUA

00-1800-5077267

PANAMA

800-7267

PERU

0-800-777-08

PUERTO RICO

1-800-682-3180

1-800-SAMSUNG(726-7864)

TRINIDAD & TOBAGO

VENEZUELA

0-800-100-5303

(MEXICO Only)

IMPORTADO POR: SAMSUNG ELECTRONICS MÉXICO S.A. de C.V.

AV. PRESIDENTE MASARIK #111 INT701

COL. CHAPULTEPEC MORALES C.P.11570

DELEGACION MIGUEL HIDALGO MEXICO. DISTRITO FEDERAL

Tel: 01-55-5747-5100 / 01-800-726-7864

- 1 -

www.samsung.com
