Software Specifications; Product Specifications - NETGEAR FWG114Pv1 - Wireless Firewall With USB Print Server Specifications

FWG114P
NETGEAR Related Products
- WAG511 802.11a/b/g Dual
Band PC Adapter
- WAG311 802.11a/b/g Dual
Band PCI Adapter
- WG511 54 Mbps PC Card
- WG311 54 Mbps PCI Card
- WG121 54 Mbps USB 2.0
Adapter
- ANT24O5 5 dBi omni-directional
antenna: indoor/outdoor
- ANT24D18 Indoor/Outdoor
18 dBi patch panel directional
antenna
- ANT2409 Indoor/Outdoor
9 dBi omni-directional antenna
- Antenna cables in various
lengths
0768 !
Everybody's Connecting.
4500 Great America Parkway
Santa Clara, CA 95054 USA
Phone: 1-888-NETGEAR (638-4327)
E-mail: info@NETGEAR.com
www.NETGEAR.com
0336 !
©2004 NETGEAR, Inc. NETGEAR ® , the
NETGEAR logo, ProSafe, Everybody's
connecting and Auto Uplink are
trademarks or registered trademarks of
Netgear, Inc. in the United States and/or
other countries. Microsoft, Windows, and
Windows Media Player are trademarks or
registered trademarks of Microsoft
Corporation in the United States and/or
other countries. Other brand and product
names are trademarks or registered
trademarks of their respective holders.
Information is subject to change without
notice. All rights reserved.
* Free basic installation support provided
for 90 days from date of purchase.
Advanced product features and
configurations are not included in free
basic installation support; optional
premium support available.
D-FWG114P-4
0560 ! !

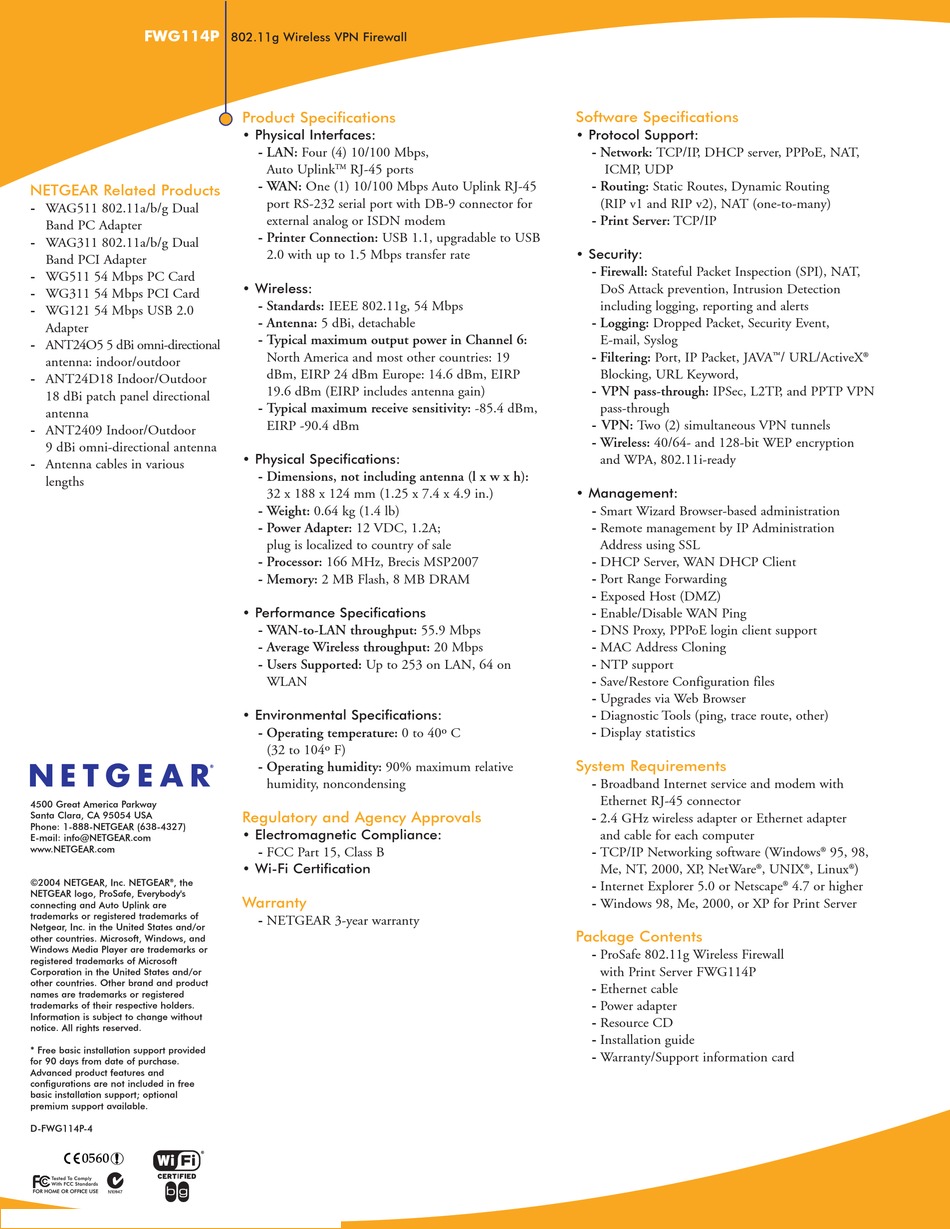

802.11g Wireless VPN Firewall

Product Specifications

• Physical Interfaces:
- LAN: Four (4) 10/100 Mbps,
Auto Uplink RJ-45 ports
TM
- WAN: One (1) 10/100 Mbps Auto Uplink RJ-45
port RS-232 serial port with DB-9 connector for
external analog or ISDN modem
- Printer Connection: USB 1.1, upgradable to USB
2.0 with up to 1.5 Mbps transfer rate
• Wireless:
- Standards: IEEE 802.11g, 54 Mbps
- Antenna: 5 dBi, detachable
- Typical maximum output power in Channel 6:
North America and most other countries: 19
dBm, EIRP 24 dBm Europe: 14.6 dBm, EIRP
19.6 dBm (EIRP includes antenna gain)
- Typical maximum receive sensitivity: -85.4 dBm,
EIRP -90.4 dBm
• Physical Specifications:
- Dimensions, not including antenna (l x w x h):
32 x 188 x 124 mm (1.25 x 7.4 x 4.9 in.)
- Weight: 0.64 kg (1.4 lb)
- Power Adapter: 12 VDC, 1.2A;
plug is localized to country of sale
- Processor: 166 MHz, Brecis MSP2007
- Memory: 2 MB Flash, 8 MB DRAM
• Performance Specifications
- WAN-to-LAN throughput: 55.9 Mbps
- Average Wireless throughput: 20 Mbps
- Users Supported: Up to 253 on LAN, 64 on
WLAN
• Environmental Specifications:
- Operating temperature: 0 to 40º C
(32 to 104º F)
- Operating humidity: 90% maximum relative
humidity, noncondensing
™
Regulatory and Agency Approvals
• Electromagnetic Compliance:
- FCC Part 15, Class B
• Wi-Fi Certification
Warranty
- NETGEAR 3-year warranty

Software Specifications

• Protocol Support:
- Network: TCP/IP, DHCP server, PPPoE, NAT,
ICMP, UDP
- Routing: Static Routes, Dynamic Routing
(RIP v1 and RIP v2), NAT (one-to-many)
- Print Server: TCP/IP
• Security:
- Firewall: Stateful Packet Inspection (SPI), NAT,
DoS Attack prevention, Intrusion Detection
including logging, reporting and alerts
- Logging: Dropped Packet, Security Event,
E-mail, Syslog
- Filtering: Port, IP Packet, JAVA
Blocking, URL Keyword,
- VPN pass-through: IPSec, L2TP, and PPTP VPN
pass-through
- VPN: Two (2) simultaneous VPN tunnels
- Wireless: 40/64- and 128-bit WEP encryption
and WPA, 802.11i-ready
• Management:
- Smart Wizard Browser-based administration
- Remote management by IP Administration
Address using SSL
- DHCP Server, WAN DHCP Client
- Port Range Forwarding
- Exposed Host (DMZ)
- Enable/Disable WAN Ping
- DNS Proxy, PPPoE login client support
- MAC Address Cloning
- NTP support
- Save/Restore Configuration files
- Upgrades via Web Browser
- Diagnostic Tools (ping, trace route, other)
- Display statistics
System Requirements
- Broadband Internet service and modem with
Ethernet RJ-45 connector
- 2.4 GHz wireless adapter or Ethernet adapter
and cable for each computer
- TCP/IP Networking software (Windows
Me, NT, 2000, XP, NetWare
- Internet Explorer 5.0 or Netscape
- Windows 98, Me, 2000, or XP for Print Server
Package Contents
- ProSafe 802.11g Wireless Firewall
with Print Server FWG114P
- Ethernet cable
- Power adapter
- Resource CD
- Installation guide
- Warranty/Support information card
/ URL/ActiveX
™ ®
95, 98,
®
® , UNIX ® , Linux ® )
® 4.7 or higher
