SERVICE MANUAL
Ver 1.1 1999.01

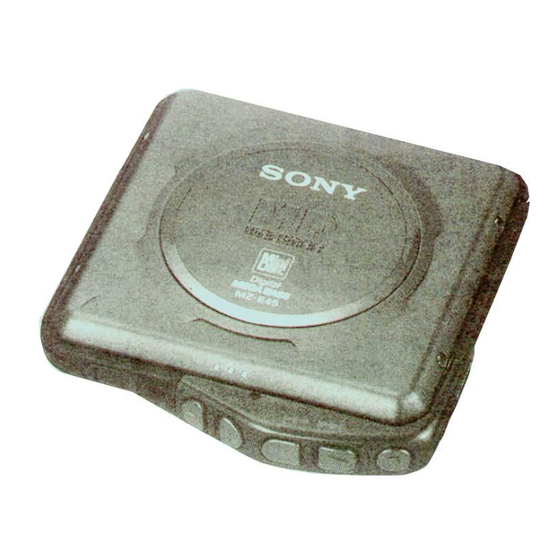

Photo : MZ-E44 (SILVER)
US and foreign patents licensed from Dolby
Laboratories Licensing Corporation
MD Section
Audio playing system
Minidisc digital audio system
Laser diode properties
Material : GaAlAs
Wavelength :
=790nm
Emission duration : continuous
Laser output : less than 44.6 W*
* This output is the value measured at a distance of 200 mm from the
objective lens surface on the optical pick-up block with 7mm aperture.
Revolutions
400 rpm to 900 rpm (CLV)
Error correction
Advanced Cross Interleave Reed Solomon Code (ACIRC)
Sampling frequency
44.1kHz
Coding
Adaptive Transform Acoustic Coding (ATRAC)
Modulation system
EFM (Eight to Fourteen Modulation)
Number of channels
2 stereo channels
1 monaural channel
Frequency response
20 to 20,000 Hz ± 3 dB
Wow and Flutter
Below measurable limit
Outputs
Headphones : stereo mini-jack, maximum output level 5mW+5mW,
load impedance 16 ohm
MICROFILM
MZ-E44/E45
Photo : MZ-E45 (GRAY)
Model Name Using Similar Mechanism
MD Mechanism Type
Optical Pick-up Mechanism Type
SPECIFICATIONS
General
Power requirements
Rechageable battery (supplied)
Nickel metal hydride rechargeable battery NH-9WM (N)
One LR6 (size AA) alkaline battery (not supplied)
Sony AC Power Adaptor AC-E15L (not supplied) connected at the
DC IN 1.5V jack
Battery operation time
Batteries
Nickel metal hydride
Rechargeable battery (NH-9WM (N))
One LR6 (size AA)
Sony alkaline dry batteries
Nickel metal hydride (NH-9WM (N)) +
One LR6 (size AA)
Dimensions
Approx. 87 x 17.8 x 91.5 mm (w/h/d)
1
23
(3
/
x
/
x 3
2
32
Mass
Approx. 115 g (4.1 oz.) the player only
Approx. 155 g (5.5 oz.) incl. a premastered MD and a nickel
metal hydride rechargeable battery NH-9WM (N)
Supplied accessories
Battery charger (1)
Rechargeable battery (1)
Rechargeable battery carrying case (1)
Headphones with a remote control (1)
Dry battery case (1)
Handstrap (1)
Carrying pouch (1)
LR6 (size AA) alkaline battery (1) (Tourist model only)
Design and specifications are subject to change without notice.
PORTABLE MINIDISC PLAYER
US Model
AEP Model
UK Model
Australian Model
Tourist Model
E Model
NEW
MT-MZE44-140
ODX-1A/1B
Playback
Approx.
5.5 hours
Approx.
8.5 hours
Approx.
16 hours
5
/
in) not including projecting parts and controls
8
MZ-E44
MZ-E44/E45
